Detroit Speed ARP Stainless Steel Body Bolt Kit (1967-1981 Chevrolet Camaro / Pontiac Firebird) - 010801DS
Finish your F-Body body mount installation with high-quality hardware built to match the rest of your chassis upgrades using the Detroit Speed 010801DS ARP Stainless Steel Body Bolt Kit. Designed for 1967-1981 Chevrolet Camaro and Pontiac Firebird applications, this kit provides the body-to-subframe and core-support fasteners needed to replace the original hardware with polished 17-4 stainless steel bolts. It is an ideal complement to Detroit Speed solid body mounts and a clean upgrade for restorations, Pro-Touring builds, and performance-oriented F-Bodies.

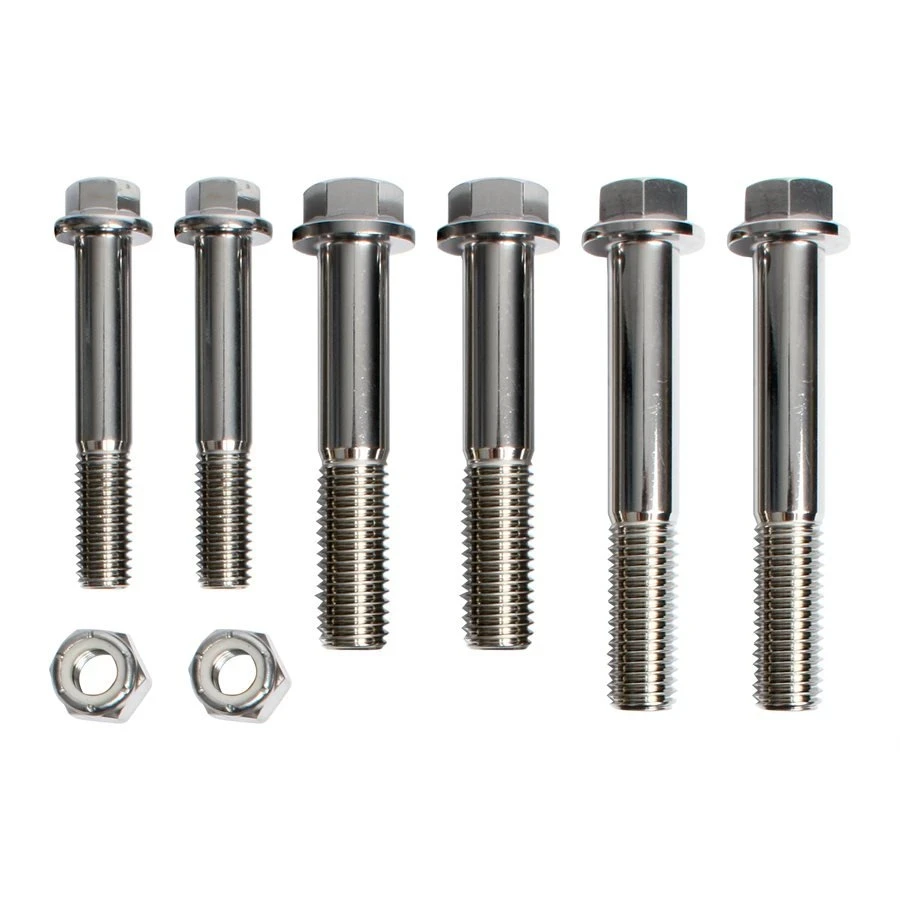

The kit includes four 5/8-11 x 3.5 inch polished 17-4 stainless steel bolts for the body mounts, plus two 1/2-13 x 3 inch polished 17-4 stainless steel bolts and two stainless steel Nylock nuts for the core support mounts. This provides the required fasteners for attaching the subframe to the body and the core support to the subframe.
Beyond replacing old or corroded factory hardware, the polished stainless construction gives the mounting points a clean, finished appearance while providing the durability expected from hardware used at critical body and chassis connections. Detroit Speed specifically offers this bolt kit to complement its solid body mount system, making it a natural choice when upgrading the body-to-subframe connection on a first- or second-generation F-Body.
Detroit Speed specifies 35 feet-pounds of torque for the core support fasteners and 85 feet-pounds for the subframe-to-body fasteners. When installing stainless steel bolts, Detroit Speed also instructs installers to apply anti-seize to the threads before assembly.
Quick Specs
- Part Number: 010801DS
- Manufacturer: Detroit Speed
- Product Type: ARP Stainless Steel Body Bolt Kit
- Application: 1967-1981 Chevrolet Camaro / Pontiac Firebird
- Platform: GM F-Body
- Bolt Material: 17-4 Stainless Steel
- Finish: Polished
- Body Mount Bolts: 4
- Body Mount Bolt Size: 5/8-11 x 3.5 inches
- Core Support Bolts: 2
- Core Support Bolt Size: 1/2-13 x 3 inches
- Core Support Nuts: 2
- Core Support Nut Type: 1/2-13 Stainless Steel Nylock
- Provides Hardware to Attach Subframe to Body
- Provides Hardware to Attach Core Support to Subframe
- Designed to Complement Detroit Speed Solid Body Mounts
- Core Support Fastener Torque: 35 feet-pounds
- Subframe-to-Body Fastener Torque: 85 feet-pounds
- Anti-Seize Required on Stainless Steel Bolt Threads During Installation
- Emission Code: 4
Features
- Designed for 1967-1981 Chevrolet Camaro and Pontiac Firebird F-Body applications
- Polished 17-4 stainless steel construction provides durable replacement body mounting hardware
- Includes four body mount bolts for securing the subframe to the body
- Includes two core support bolts and two stainless steel Nylock nuts
- 5/8-11 x 3.5 inch fasteners are supplied for the body mounting locations
- 1/2-13 x 3 inch fasteners are supplied for the core support mounting locations
- Excellent companion to Detroit Speed solid body mounts
- Replaces aging or corroded original body and core support mounting hardware
- Polished finish provides a clean appearance for detailed restorations and performance builds
- Complete hardware solution for the primary body-to-subframe and core-support mounting locations
Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
FAQs
What hardware is included with the Detroit Speed 010801DS Body Bolt Kit?
The kit includes four polished 17-4 stainless steel 5/8-11 x 3.5 inch bolts for the body mounts, two polished 17-4 stainless steel 1/2-13 x 3 inch bolts for the core support mounts, and two 1/2-13 stainless steel Nylock nuts.
What torque specifications does Detroit Speed recommend for the 010801DS hardware?
Detroit Speed specifies 35 feet-pounds for the core support fasteners and 85 feet-pounds for the subframe-to-body fasteners. Anti-seize should be applied to the stainless steel bolt threads before assembly.
