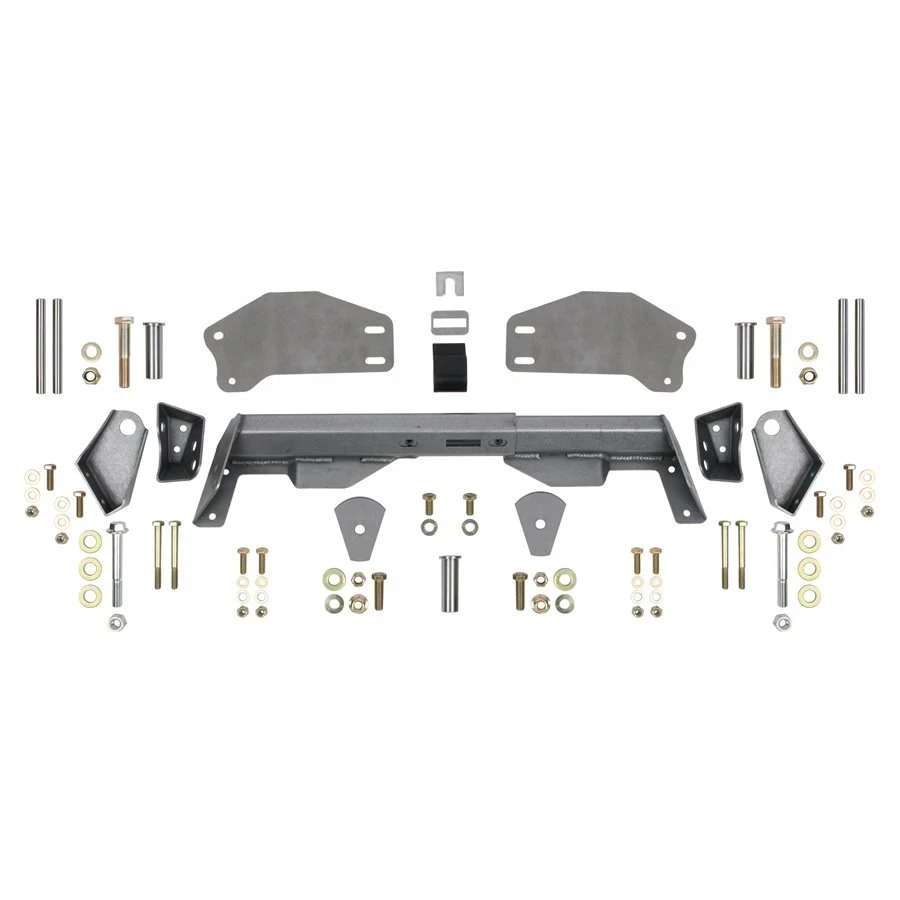

Detroit Speed EXO Brace (1979-1993 Ford Mustang / 1979-1986 Mercury Capri) - 010115DS
Reinforce one of the most notorious structural weak points in the Fox Body chassis with the Detroit Speed 010115DS EXO Brace. Designed for 1979-1993 Ford Mustang and 1979-1986 Mercury Capri applications, the EXO Brace strengthens the upper torque box area where the rear suspension upper links mount to the chassis. Factory torque boxes can weaken, crack, tear, or even separate from the vehicle over time, especially as power levels and chassis loads increase. Detroit Speed engineered the EXO Brace to reinforce this critical area before failure becomes a costly chassis repair or creates unpredictable handling.
The 010115DS ties the upper link pockets into the frame and floor pan on both sides of the frame rail, then connects the two torque box structures from side to side with a telescoping brace. This integrated design improves upper torque box rigidity and distributes suspension loads through a larger portion of the chassis rather than allowing those loads to concentrate around the factory upper link mounting points.
Detroit Speed gives builders the flexibility of either bolt-on or weld-in installation. For applications making up to 400 horsepower, Detroit Speed specifies the bolt-on configuration as a solution for preventing upper torque box tearing. For cars producing more than 400 horsepower, Detroit Speed specifies welding the kit into the chassis for additional support. All necessary installation hardware is included with the kit.
The EXO Brace also adds a second upper link adjustment hole designed to help correct the rear suspension instant center on lowered Fox Body cars. Factory upper links work in both mounting positions, allowing the brace to add chassis reinforcement and useful suspension geometry adjustment without requiring replacement upper links. For a Fox Body that sees hard street use, increased horsepower, or serious performance driving, the 010115DS addresses a known chassis weakness with a purpose-built Detroit Speed solution.
Quick Specs
- Part Number: 010115DS
- Manufacturer: Detroit Speed
- Product Type: EXO Brace / Rear Suspension Chassis Reinforcement
- Application: 1979-1993 Ford Mustang / 1979-1986 Mercury Capri
- Platform: Ford Fox Body
- Installation Type: Bolt-On with Weld-In Capability
- Designed to Reinforce the Upper Torque Box Area
- Reinforces Upper Rear Suspension Link Mounting Points
- Ties Upper Link Pockets into Frame and Floor Pan
- Reinforces Both Sides of the Frame Rail
- Connects Left and Right Torque Box Structures Side to Side
- Telescoping Side-to-Side Brace Design
- Bolt-On Installation Recommended by Detroit Speed for Applications Up to 400 Horsepower
- Weld-In Installation Supports Applications Over 400 Horsepower
- Provides Second Upper Link Adjustment Hole
- Additional Upper Link Position Helps Correct Instant Center on Lowered Cars
- Compatible with Factory Upper Links in Both Mounting Positions
- All Necessary Installation Hardware Included
- Emission Code: 4
Features
- Engineered specifically for 1979-1993 Ford Mustang and 1979-1986 Mercury Capri Fox Body applications
- Addresses a known Fox Body failure point where the upper rear suspension links mount to the chassis
- Improves rigidity of the factory upper torque box structure
- Helps prevent torque box cracking, tearing, and separation from the chassis
- Ties the upper link pockets into the frame and floor pan on both sides of the frame rail
- Connects the left and right torque box structures with a telescoping side-to-side brace
- Can be installed as a bolt-on reinforcement solution for applications up to 400 horsepower
- Can be welded into the chassis for additional reinforcement on applications producing more than 400 horsepower
- Provides a second upper link mounting hole to help correct instant center on lowered Fox Body cars
- Works with factory upper suspension links in either mounting position
- Helps distribute rear suspension loads through a larger portion of the chassis structure
- Provides a comprehensive reinforcement solution for performance and higher-horsepower Fox Body builds
- Includes all necessary installation hardware
Fitment
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1979 Mercury Capri
- 1980 Mercury Capri
- 1981 Mercury Capri
- 1982 Mercury Capri
- 1983 Mercury Capri
- 1984 Mercury Capri
- 1985 Mercury Capri
- 1986 Mercury Capri
FAQs
Does the Detroit Speed 010115DS EXO Brace have to be welded into the car?
Not in every application. Detroit Speed specifies the EXO Brace as a bolt-on solution to help prevent upper torque box tearing on cars making up to 400 horsepower. For applications producing more than 400 horsepower, Detroit Speed specifies welding the kit into the chassis for additional torque box support.
Will the EXO Brace work with the factory Fox Body upper suspension links?
Yes. The 010115DS works with factory links in both upper link mounting positions. The additional mounting hole can also help correct the rear suspension instant center on lowered cars.
