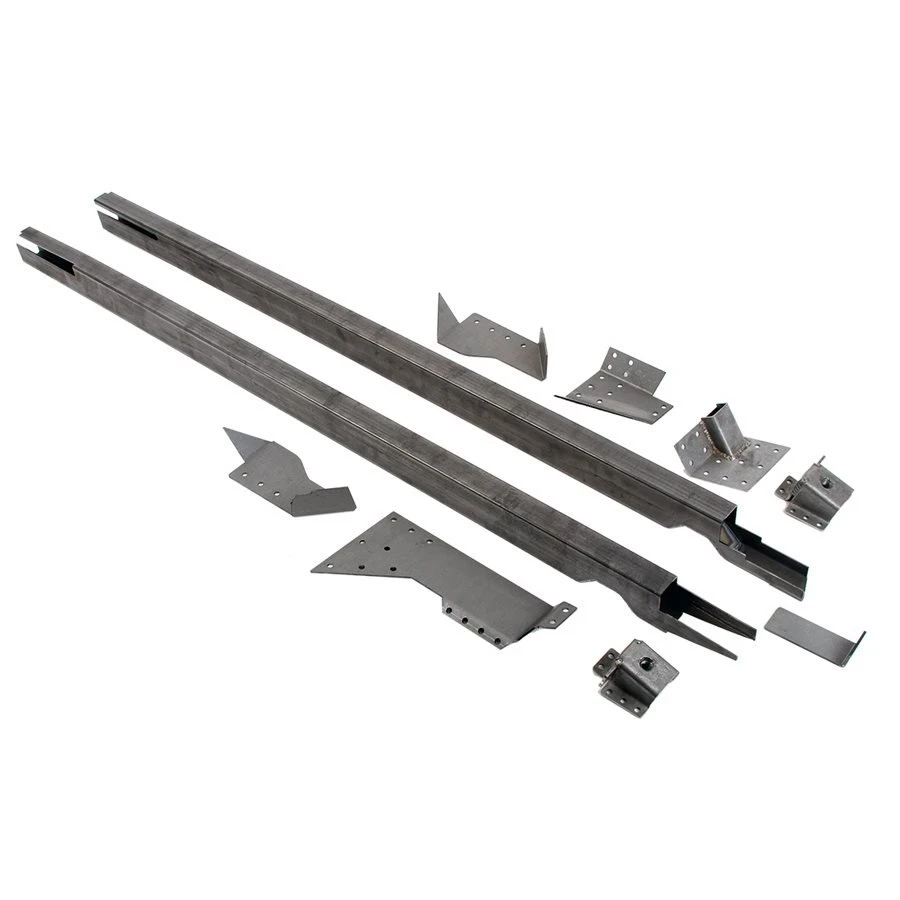

Detroit Speed Subframe Connectors (1982-1992 Chevrolet Camaro / Pontiac Firebird) - 010110DS
Put a stronger foundation under your third-generation F-Body with the Detroit Speed 010110DS Weld-In Subframe Connectors. Engineered specifically for 1982-1992 Chevrolet Camaro and Pontiac Firebird applications, these connectors tie the front and rear torque box structures together to increase longitudinal and torsional chassis stiffness. For street performance, Pro-Touring, autocross, road course, or high-horsepower builds, reinforcing the unibody structure helps create a more rigid platform while retaining the ground clearance needed for a street-driven car.
Detroit Speed fabricates the 010110DS connectors from 1.5 inches x 2.5 inches x 0.083 inch wall steel tubing. Laser-cut brackets attach the front and rear of the connector tubes directly to the torque box structures, creating a strong weld-in connection. The connectors are designed so they do not extend below the rocker pinch flange, meaning ground clearance remains unaffected after installation.
These connectors do more than reinforce the chassis. Their structural design allows them to function as side jacking rails, giving you a convenient lifting point along the side of the car. They also provide a solid mounting structure for roll cage installations, making the 010110DS a smart foundation for F-Body builds that may continue to evolve from street duty into more serious performance use.
Detroit Speed also includes new seat belt brackets that are stronger than the factory brackets. These provide mounting locations for either the stock seat belt system or a race-style lap belt. Combined with the weld-in construction and torque-box integration, the 010110DS provides a comprehensive chassis-stiffening solution designed specifically around the third-generation Camaro and Firebird platform.
Quick Specs
- Part Number: 010110DS
- Manufacturer: Detroit Speed
- Product Type: Subframe Connectors
- Application: 1982-1992 Chevrolet Camaro and Pontiac Firebird
- Platform: GM F-Body
- Installation Type: Weld-In
- Construction: Steel Rectangular Tubing
- Tubing Dimensions: 1.5 inches x 2.5 inches
- Wall Thickness: 0.083 inch
- Connects Front and Rear Torque Box Structures
- Designed to Increase Longitudinal and Torsional Chassis Stiffness
- Laser-Cut Front and Rear Mounting Brackets Included
- Functions as a Side Jacking Rail
- Provides Mounting Structure for Roll Cage Installations
- Does Not Hang Below the Rocker Pinch Flange
- Ground Clearance Remains Unaffected
- Upgraded Seat Belt Brackets Included
- Seat Belt Brackets Are Stronger Than Stock
- Supports Factory Seat Belt System
- Supports Race-Style Lap Belt Mounting
- Installation Template, Pictures, and Detailed Instructions Included
- Emission Code: 4
Features
- Engineered specifically for 1982-1992 Chevrolet Camaro and Pontiac Firebird applications
- Connects the front and rear torque box structures for maximum longitudinal and torsional chassis stiffness
- Heavy-duty 1.5 inches x 2.5 inches x 0.083 inch wall steel tubing construction
- Weld-in design creates a rigid structural connection through the unibody chassis
- Laser-cut brackets securely attach the front and rear of the connector tubes to the torque box structures
- Does not extend below the rocker pinch flange, preserving factory ground clearance
- Functions as a convenient side jacking rail for lifting the vehicle
- Creates a strong mounting structure for roll cage installations
- Includes upgraded seat belt brackets that are stronger than the factory brackets
- Seat belt brackets provide mounting points for the stock belt system or a race-style lap belt
- Provides chassis reinforcement without bulky connectors hanging below the vehicle
- Designed as an integrated chassis-stiffening solution for third-generation GM F-Body builds
- Includes installation template, pictures, and detailed instructions
Fitment
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
FAQs
Will the Detroit Speed 010110DS Subframe Connectors reduce ground clearance?
No. Detroit Speed designed the connectors so they do not hang below the rocker pinch flange, allowing the car to retain its ground clearance while gaining the additional chassis stiffness of a weld-in subframe connector system.
Can the 010110DS Subframe Connectors be used with a roll cage or race-style seat belts?
Yes. The connectors provide a strong mounting structure for roll cage installations. The kit also includes upgraded seat belt brackets that provide mounting locations for either the factory seat belt system or a race-style lap belt.
