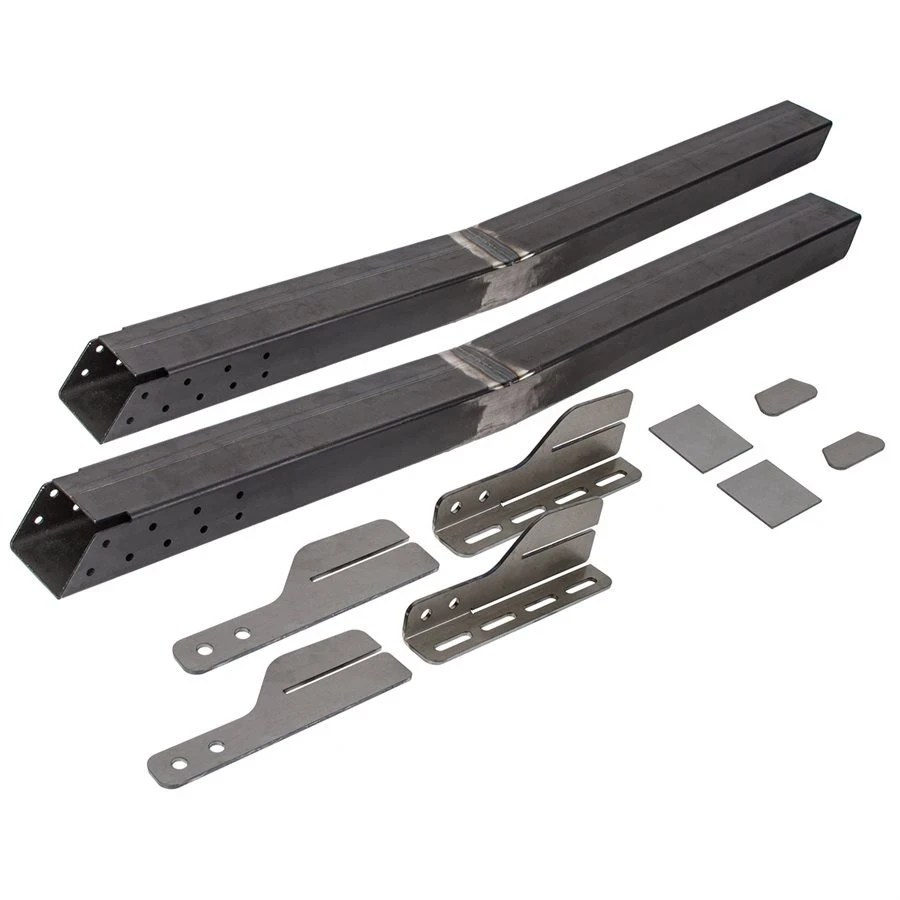

Detroit Speed Subframe Connectors (1962-1967 Chevrolet Chevy II) - 010104DS
Build a stronger foundation into your early Chevy II with the Detroit Speed 010104DS Weld-In Subframe Connectors. Engineered specifically for 1962-1967 Chevrolet Chevy II applications, these connectors integrate with the front and rear frame rails and floor pan to increase longitudinal and torsional chassis stiffness. The result is a more rigid, unified chassis structure that is ideal for performance street cars, Pro-Touring builds, restorations, and other applications where reducing unwanted chassis flex is a priority.
Detroit Speed constructs the 010104DS connectors from 2 inches x 3 inches x 0.083 inch wall rectangular steel tubing. Each connector is bent and TIG welded in a fixture for accuracy and repeatability. Laser-cut brackets provide a strong welded connection, while the rear of the connector is tapered to integrate with the rear frame rails. A laser-cut slot conforms to the rear seat floor pan, allowing the connector to become an integrated part of the chassis rather than simply hanging underneath it.
The low-profile design keeps the connectors barely visible from underneath the car and, once installed, they are not visible from the vehicle's side view or detrimental to ground clearance. Detroit Speed also designed the system so it does not interfere with seat attachment hardware or installation and removal of the rear leaf spring pocket. The factory molded carpet can still fit over the connectors, and they can be installed on convertible applications.
Important fitment note: If your Chevy II is not equipped with the Detroit Speed QUADRALink rear suspension, Detroit Speed torque boxes are required and must be purchased separately. The torque boxes are not included with the 010104DS Subframe Connector kit.
Quick Specs
- Part Number: 010104DS
- Manufacturer: Detroit Speed
- Product Type: Subframe Connectors
- Application: 1962-1967 Chevrolet Chevy II
- Installation Type: Weld-In
- Construction: Rectangular Steel Tubing
- Tubing Dimensions: 2 inches x 3 inches
- Wall Thickness: 0.083 inch
- Fabrication: Bent and TIG Welded in a Fixture
- Integrates with Front and Rear Frame Rails and Floor Pan
- Designed to Increase Longitudinal and Torsional Chassis Stiffness
- Laser-Cut Brackets Included
- Tapered Rear Connector Design
- Laser-Cut Slot Conforms to Rear Seat Floor Pan
- Low-Profile Installation
- Does Not Compromise Vehicle Ground Clearance
- Does Not Interfere with Seat Attachment Hardware
- Does Not Interfere with Rear Leaf Spring Pocket Installation or Removal
- Factory Molded Carpet Can Be Retained
- Compatible with Convertible Applications
- Installation Templates Included
- Installation Pictures Included
- Detailed Installation Instructions Included
- Torque Boxes Required if Detroit Speed Chevy II QUADRALink is Not Installed
- Torque Boxes Sold Separately
- Emission Code: 4
Features
- Engineered specifically for 1962-1967 Chevrolet Chevy II applications
- Integrates with the front and rear frame rails and floor pan for increased longitudinal and torsional chassis stiffness
- Heavy-duty 2 inches x 3 inches x 0.083 inch wall rectangular steel tubing construction
- Bent and TIG welded in a fixture for consistent accuracy and repeatability
- Laser-cut brackets provide strong, precise welded attachment points
- Tapered rear section is designed to integrate with the rear frame rails
- Laser-cut slot conforms to the rear seat floor pan for an integrated installation
- Low-profile design is barely visible from underneath the vehicle
- Not visible from the side of the vehicle once properly installed
- Designed to maintain vehicle ground clearance
- Does not interfere with factory seat attachment hardware
- Allows installation and removal of the rear leaf spring pocket
- Factory molded carpet can still fit over the installed connectors
- Compatible with convertible applications
- Includes templates, pictures, and detailed installation instructions
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
- 1966 Chevrolet Chevy II
- 1967 Chevrolet Chevy II
Fitment Note: If the vehicle is not equipped with the Detroit Speed Chevy II QUADRALink rear suspension, Detroit Speed torque boxes are required. Torque boxes are not included with this kit and must be purchased separately.
FAQs
Do I need Detroit Speed torque boxes to install the 010104DS Subframe Connectors?
If your 1962-1967 Chevy II does not have the Detroit Speed QUADRALink rear suspension, yes. Detroit Speed requires torque boxes for the installation, and they are not included with the 010104DS Subframe Connector kit.
Will these subframe connectors hang below the car or reduce ground clearance?
No. Detroit Speed designed the connectors to integrate into the chassis and floor pan. Once properly installed, they are not visible from the side of the vehicle and do not compromise vehicle ground clearance.
