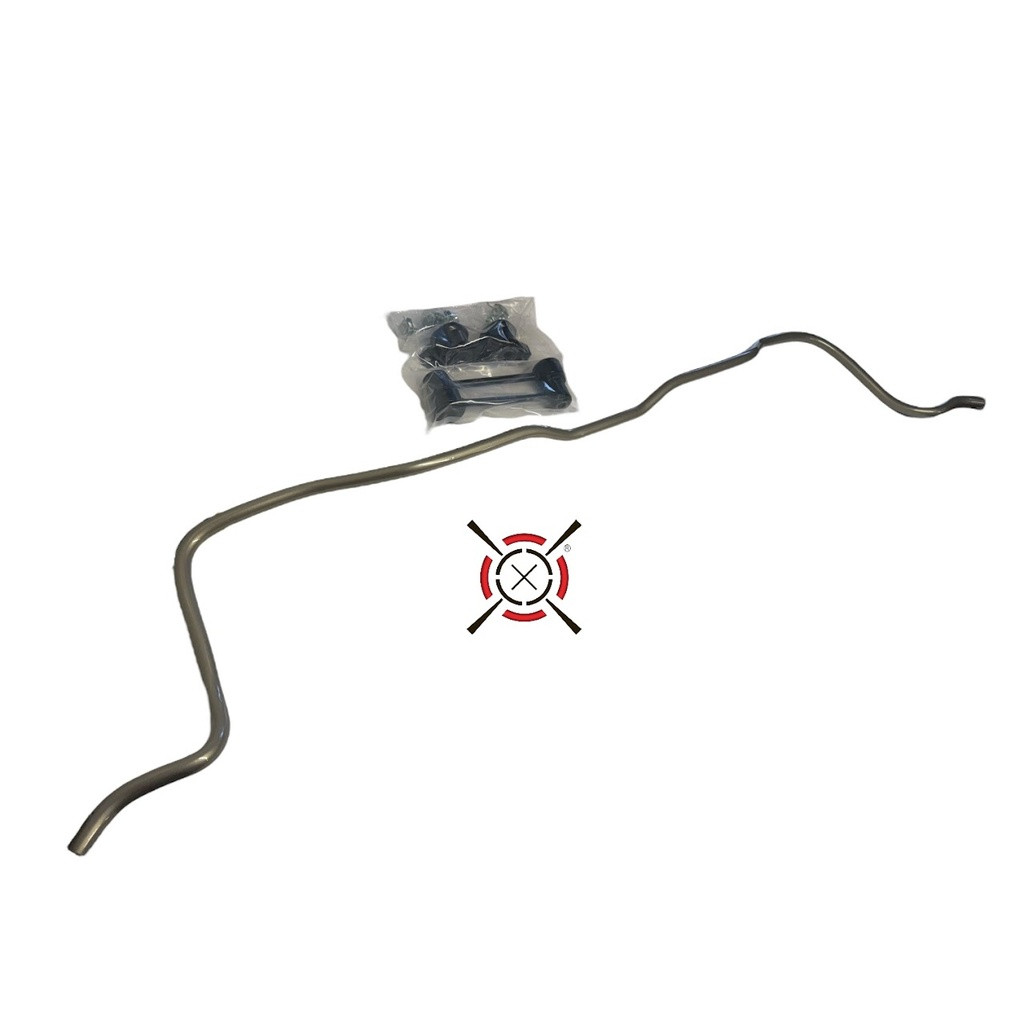

CorteX 18mm Rear Anti-Roll Bar (ARB-40-1005) - 2005-2014 Ford Mustang
Optimize rear suspension balance and tire grip on your 2005-2014 Ford Mustang with the CorteX Racing 18mm Rear Anti-Roll Bar. Featuring a stock-size 18mm outside diameter, this lower-rate rear sway bar is specifically well suited for Mustangs equipped with CorteX rear coilovers and track-focused suspension setups where maintaining proper suspension articulation is critical.
While larger and stiffer rear anti-roll bars are commonly used with the factory divorced spring and shock arrangement, that same approach is not necessarily beneficial after converting to a rear coilover system. The CorteX 18mm bar provides a lower roll rate that allows the suspension and tires to work more effectively instead of unnecessarily restricting rear suspension movement.
Features
- 18mm outside diameter rear anti-roll bar
- Ideal for use with CorteX rear coilover systems
- Lower bar rate promotes greater rear suspension articulation
- Helps maximize tire contact and mechanical grip
- Well suited for track-focused Mustang suspension setups
- Direct replacement design for proper fitment
- Solid forged construction
- Solid design eliminates the possibility of hollow bar ends breaking
- Durable powder-coated finish
- High-quality materials for strength and corrosion resistance
- Includes upgraded hardware
- Includes end links and polyurethane bushings where applicable
- Quality inspected for proper manufacturing standards
- Mustang SMG class legal
Designed for Coilover Suspension Systems
The factory Mustang rear suspension uses springs that are mounted separately from the shocks. Because of the factory spring location and motion ratio, many conventional aftermarket suspension packages rely on a larger, stiffer rear anti-roll bar to achieve the desired roll stiffness.
When converting to a CorteX rear coilover configuration, suspension motion and spring control change significantly. Simply installing a larger rear anti-roll bar can add excessive roll stiffness and prevent the suspension from articulating properly. The CorteX 18mm bar is designed to complement this type of coilover setup and maintain a more favorable balance between roll control and available mechanical grip.
Improve Rear Tire Performance
A suspension needs enough freedom of movement to keep the tires properly loaded as the chassis corners. Excessive rear anti-roll bar stiffness can reduce independent wheel movement and make it more difficult for the rear tires to maintain optimal contact with the pavement.
The lower rate of this 18mm bar allows greater suspension articulation, helping the rear tires work more effectively during aggressive cornering. This makes it an excellent choice for many road course and track-driven S197 Mustangs.
Solid Forged Construction
The CorteX rear anti-roll bar uses a solid forged design for strength and durability. Its construction eliminates the potential for hollow sway bar ends to break while a durable powder-coated finish helps protect the bar against corrosion.
What's Included
- 18mm rear anti-roll bar
- Upgraded installation hardware
- End links
- Polyurethane bushings where applicable
Fitment
- 2005 Ford Mustang
- 2006 Ford Mustang
- 2007 Ford Mustang
- 2008 Ford Mustang
- 2009 Ford Mustang
- 2010 Ford Mustang
- 2011 Ford Mustang
- 2012 Ford Mustang
- 2013 Ford Mustang
- 2014 Ford Mustang
Additional Notes
- 18mm outside diameter is equivalent to the OEM-size rear bar used on certain Mustang applications.
- Commonly referred to within the track community as the "convertible" rear bar because this size was factory equipment on those vehicles.
- Especially recommended for Mustangs equipped with CorteX rear coilovers.
- Mustang SMG class legal.
- A larger rear anti-roll bar is not always beneficial with a coilover conversion and may negatively affect suspension articulation and grip.
