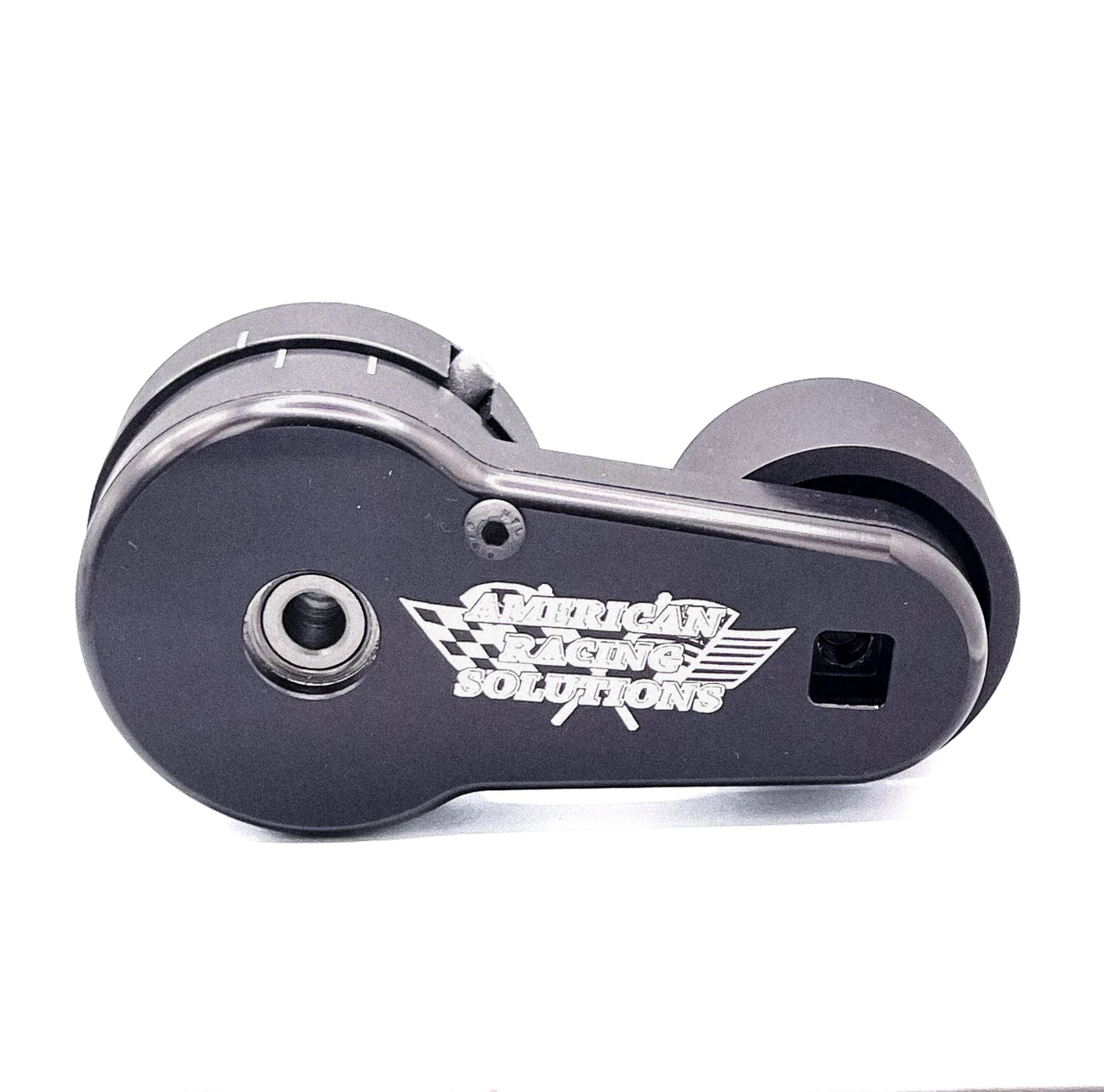

American Racing Solutions Racing Billet Belt Tensioner, 50 lb. Spring (9500) - 2007-2014 Shelby GT500
Improve supercharger belt control on your high-horsepower 2007-2014 Shelby GT500 with the American Racing Solutions Racing Billet Belt Tensioner. Designed specifically for the demanding belt loads created by modified 5.4L and 5.8L supercharged GT500 applications, this race-focused tensioner features a custom-wound 50 lb. spring for significantly increased belt tension compared to the factory unit.
As boost, horsepower, and engine speed increase, maintaining proper belt tension becomes critical. The increased spring force of the ARS tensioner helps maintain belt grip during hard acceleration and high-RPM operation, reducing unwanted belt slip and helping deliver more consistent supercharger performance.
American Racing Solutions precision CNC-machines the tensioner from solid 6061-T6 billet aluminum rather than cast material for an excellent combination of strength, durability, and machining accuracy. A hardened steel shaft and heavy-duty bearings further reinforce the assembly for demanding high-horsepower street and racing applications.
Features
- Race-spec belt tensioner for 2007-2014 Shelby GT500 applications
- Designed for supercharged 5.4L and 5.8L engines
- Custom-wound 50 lb. high-tension spring
- Provides significantly increased belt tension compared to the factory tensioner
- Helps improve belt grip under extreme boost and high-RPM conditions
- Helps reduce unwanted supercharger belt slip
- Precision CNC-machined from 6061-T6 billet aluminum
- Billet construction instead of cast aluminum
- Hardened steel tensioner shaft
- Heavy-duty bearing construction
- Anodized finish for increased durability and reduced belt wear
- Engineered for high-horsepower supercharged applications
- Direct bolt-on replacement design
- No adapter plates or additional accessories required
- Proudly made in the USA
Performance Benefits
- 50 lb. spring provides increased belt control for demanding supercharger combinations
- Helps maintain consistent belt engagement during hard acceleration
- Improves belt control during high-RPM operation
- Reduces the potential for belt slip under extreme supercharger loads
- Can help support more consistent boost and horsepower delivery
- Provides improved belt-drive reliability compared to the factory tensioner
- Billet aluminum construction provides excellent strength and precision
- Purpose-built for modified and high-horsepower Shelby GT500 applications
Configuration Options
- 63mm 10-Rib Smooth Pulley with Steel Bearings - Default Configuration
- 63mm 10-Rib Smooth Pulley with Ceramic Bearings
- Tensioner Only - No Pulley
Specifications
- Product Type: Racing Belt Tensioner
- Spring Rate: 50 lb.
- Material: 6061-T6 Billet Aluminum
- Manufacturing Process: CNC-Machined
- Shaft Material: Hardened Steel
- Standard Pulley Diameter: 63mm
- Pulley Configuration: 10-Rib
- Pulley Type: Smooth
- Available Bearing Options: Steel or Ceramic
- Part Number: 9500
- Country of Manufacture: USA
Fitment
- 2007 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2008 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2009 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2010 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2011 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2012 Ford Mustang Shelby GT500 - 5.4L Supercharged
- 2013 Ford Mustang Shelby GT500 - 5.8L Supercharged
- 2014 Ford Mustang Shelby GT500 - 5.8L Supercharged
Important Pulley Clearance Note
This tensioner is sold by default with a 63mm 10-rib smooth pulley. The 63mm pulley is required for proper clearance when running a 20% oversized damper, a common modification on high-performance Shelby GT500 applications.
Additional Notes
- The standard configuration includes a 63mm 10-rib smooth pulley with steel bearings.
- Ceramic pulley bearings are available as an optional upgrade.
- A tensioner-only configuration without a pulley is also available.
- Verify pulley size, belt configuration, damper size, belt routing, and application compatibility before ordering.
