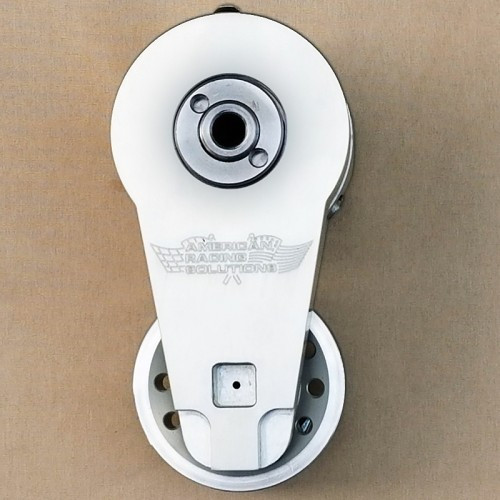

American Racing Solutions Racing Belt Tensioner, 50lb. Spring (6500) - 2008-2023 Hemi
Take belt control to the next level on your high-horsepower HEMI with the American Racing Solutions HEMI Race Billet Belt Tensioner. Designed specifically for high-output supercharged 5.7L and 6.4L HEMI combinations, the ARS 6500 is recommended for track-focused vehicles and extreme street builds producing 1,000+ RWHP.
Precision CNC-machined from solid 6061-T6 billet aluminum, this tensioner provides the strength and rigidity needed to withstand demanding supercharger belt loads. The Race version uses a custom-wound 50 lb. spring to provide increased belt tension and further reduce belt slip under high boost, aggressive acceleration, and elevated RPM.
A hardened steel shaft and heavy-duty bearings provide additional durability for demanding performance applications, while the anodized billet housing helps resist corrosion and reduce belt wear. Multiple pulley configurations are available, including 70mm and 63mm 8-rib smooth pulleys with your choice of steel or ceramic bearings. A tensioner-only configuration is also available for applications already equipped with the appropriate pulley.
Features
- Race-spec billet belt tensioner for high-horsepower HEMI applications
- Recommended for track cars and extreme street builds producing 1,000+ RWHP
- Custom-wound 50 lb. high-tension spring
- Designed to further reduce supercharger belt slip
- CNC-machined from solid 6061-T6 billet aluminum
- Billet construction instead of cast aluminum
- Hardened steel tensioner shaft
- Heavy-duty bearing construction
- Anodized finish for increased durability and reduced belt wear
- Designed for high-boost and high-RPM operation
- Helps maintain more consistent belt tension under heavy load
- Multiple pulley and bearing configurations available
- Tensioner-only option available
- Direct bolt-on design for compatible applications
- Proudly made in the USA
Built for 1,000+ RWHP HEMI Applications
High-horsepower supercharged combinations can place considerably more load on the accessory drive than factory components were designed to manage. As horsepower, boost, and engine speed increase, maintaining proper belt tension becomes increasingly important. The ARS 6500 uses a stronger 50 lb. spring to maintain greater tension under load, helping minimize belt slip and support more consistent supercharger operation.
Performance Benefits
- Improves belt control under high boost and heavy supercharger loads
- Helps reduce belt slip during hard acceleration
- Supports more consistent belt engagement at elevated RPM
- Can help maintain more consistent supercharger boost and power delivery
- 50 lb. spring provides increased tension for extreme-performance applications
- Billet aluminum construction provides excellent strength and machining precision
- Hardened steel shaft and heavy-duty bearings support demanding racing use
- Ideal for track cars and high-horsepower street builds
Configuration Options
- 70mm 8-Rib Smooth Pulley with Steel Bearings - Default
- 70mm 8-Rib Smooth Pulley with Ceramic Bearings
- 63mm 8-Rib Smooth Pulley with Steel Bearings
- 63mm 8-Rib Smooth Pulley with Ceramic Bearings
- Tensioner Only - No Pulley
Specifications
- Product Type: Racing Belt Tensioner
- Series: HEMI Race
- Recommended Power Level: 1,000+ RWHP
- Spring Rate: 50 lb.
- Material: 6061-T6 Billet Aluminum
- Manufacturing Process: CNC-Machined
- Shaft Material: Hardened Steel
- Available Pulley Diameters: 70mm or 63mm
- Pulley Configuration: 8-Rib
- Pulley Type: Smooth
- Available Bearing Options: Steel or Ceramic
- Part Number: 6500
- Country of Manufacture: USA
Fitment
- 2008+ Dodge Challenger 5.7L HEMI
- 2008+ Dodge Challenger 6.4L HEMI
- 2008+ Dodge Charger 5.7L HEMI
- 2008+ Dodge Charger 6.4L HEMI
- 2008+ Chrysler 300 5.7L HEMI
- 2008+ Chrysler 300 6.4L HEMI
- 2009-2021 Jeep Grand Cherokee 5.7L HEMI
- 2009-2021 Jeep Grand Cherokee 6.4L HEMI
- 2011+ Dodge Durango 5.7L HEMI
- 2011+ Dodge Durango 6.4L HEMI
- 2009+ Ram 1500 5.7L HEMI
- 2009+ Ram 1500 6.4L HEMI
- Additional Chrysler, Dodge, Jeep, and Ram vehicles equipped with compatible 5.7L or 6.4L HEMI engines
Additional Notes
- This is the Race version featuring the stronger 50 lb. spring.
- Recommended for track vehicles and street builds producing 1,000+ RWHP.
- The default configuration includes a 70mm 8-rib smooth pulley with steel bearings.
- 63mm 8-rib smooth pulley configurations are available for compatible setups.
- Ceramic bearing upgrades are available for both pulley sizes.
- A tensioner-only configuration without a pulley is available.
- Verify engine, pulley diameter, belt routing, supercharger configuration, and vehicle compatibility before ordering.
