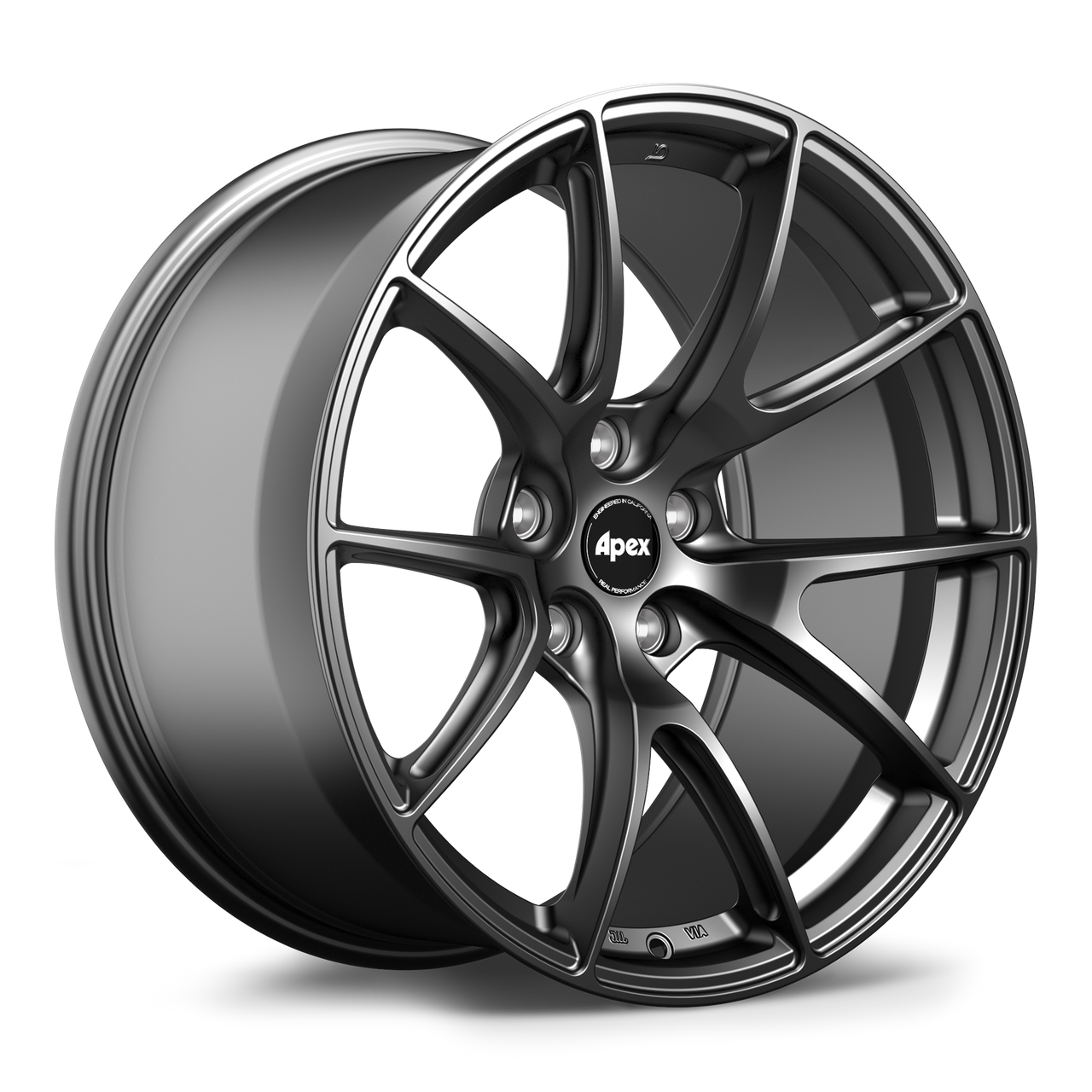

Apex VS-5 19x12.5 Flow Formed Wheel - 5x120.65 BP / ET55 / 70.3mm CB - Satin Black (Chevy) (VS519125ET55-512065-703-SMBK)
The Apex VS-5 19x12.5 Flow Formed Wheel delivers forged-inspired performance without the premium price tag. Finished in Satin Black, this aggressive five-spoke design pushes the limits of flow-formed wheel technology with a strength-to-weight ratio and engineering features typically reserved for forged wheels. Weighing only approximately 2 to 2.5 pounds more than its forged counterpart, the VS-5 represents the final step before moving into a fully forged wheel.
Built using advanced flow-forming processes and extensive Finite Element Analysis, the VS-5 offers remarkable strength and low weight without compromise. Side-milled spokes, a reinforced inner lip, ultra-concave face profiles, and exceptional brake clearance make this wheel equally at home on the street or track. Every detail is engineered to maximize durability, performance, and style.
Features
- Advanced flow-formed construction for exceptional strength and reduced weight
- Forged-inspired performance with only approximately 2 to 2.5 pounds more weight than forged wheels
- Iconic five-spoke design with aggressive ultra-concave face profiles
- Side-milled spokes remove excess material while preserving strength
- Precision CNC ball-cut machining enhances weight savings
- Reinforced inner lip improves impact resistance
- Three unique face profiles maximize concavity and brake clearance
- Designed using extensive OE and aftermarket brake scan data
- Zero-degree draft barrel provides increased caliper clearance
- FEA-optimized construction strengthens critical stress areas
- Compatible with oversized race lugs and impact sockets
- Multi-stage liquid paint finish over a powder-coated base coat
- Mounting surfaces remain untouched for proper torque values
- Meets or exceeds JWL load-rating requirements
- Hub-centric design minimizes the need for centering rings
- Gloss black Apex center cap included
- Compatible with OEM and aftermarket hardware and most spacers
- Accepts OEM and aftermarket TPMS sensors and standard valve stems
Specifications
- Part Number: VS519125ET55-512065-703-SMBK
- Wheel Series: VS-5
- Construction: Flow Formed
- Diameter: 19 inches
- Width: 12.5 inches
- Bolt Pattern: 5x120.65
- Offset: ET55
- Center Bore: 70.3mm
- Finish: Satin Black
- Center Cap Included: Yes
- TPMS Compatible: Yes
Fitment
- Applications Utilizing 5x120.65 Bolt Pattern and 70.3mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
Will the VS-5 work with big brake kits?
Yes. Apex engineered the VS-5 with brake-specific spoke profiles and a zero-degree draft barrel to maximize clearance for many OE and aftermarket brake systems.
Can factory TPMS sensors and lug hardware be reused?
Yes. The VS-5 accepts OEM and aftermarket TPMS sensors and works with factory hardware, wheel locks, stud conversion kits, and most wheel spacers.
