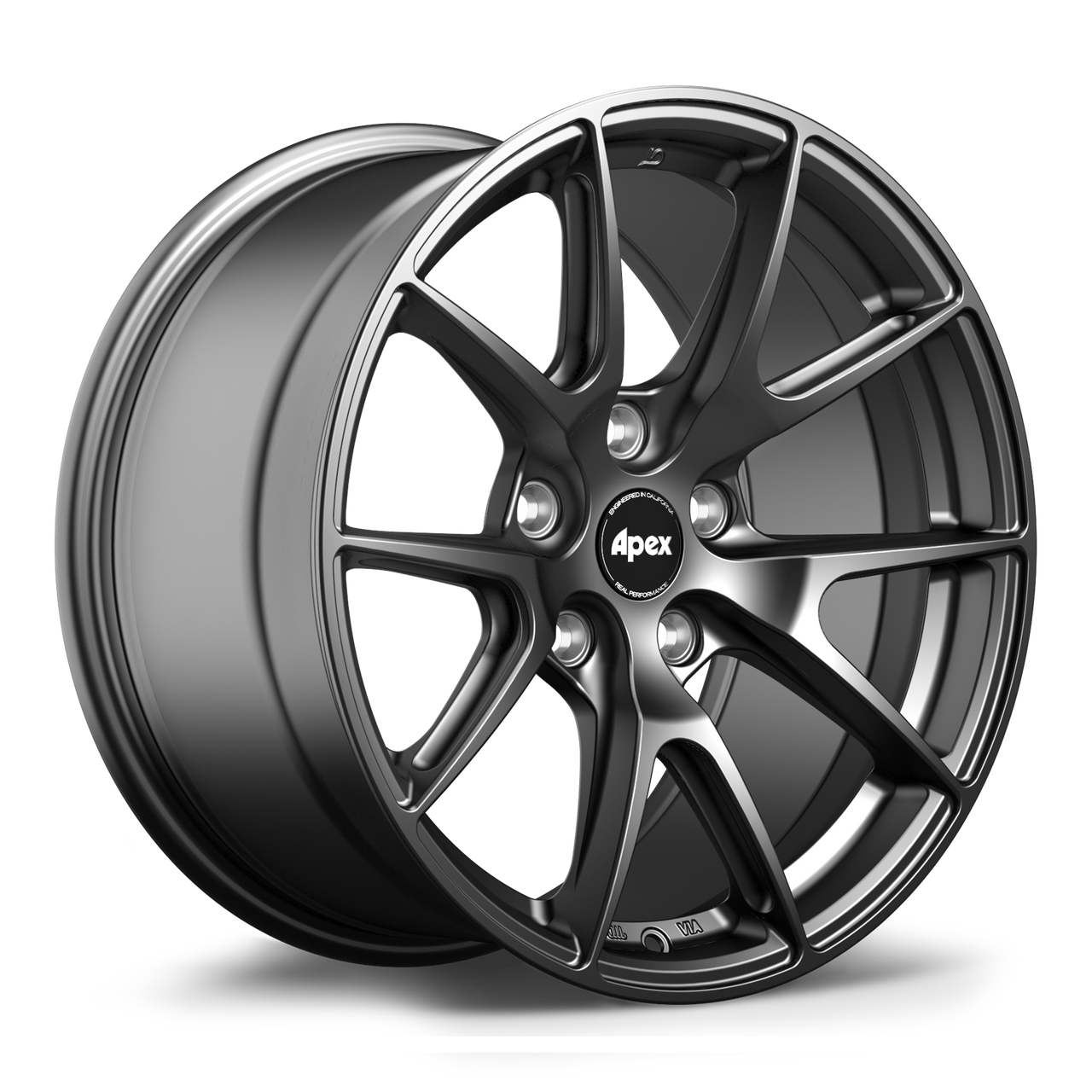

Apex VS-5 17x9.5 Flow Formed Wheel - 5x120 BP / ET35 / 72.56mm CB - Satin Black (BMW) (VS51795ET35-5120-7256-SMBK)
The Apex VS-5 pushes the boundaries of what a flow formed wheel can achieve, delivering an exceptional strength-to-weight ratio and race-proven engineering in a sleek Satin Black finish. Weighing only approximately 2 to 2.5 pounds more than its forged counterpart, the VS-5 represents the final step before stepping into a fully forged wheel. With its iconic five-spoke design, aggressive concavity, and advanced construction techniques, this wheel is equally at home attacking apexes or turning heads on the street.
Built using extensive Finite Element Analysis and inspired by Apex's motorsport heritage, the VS-5 combines lightweight performance with outstanding durability. Side-milled spokes, a reinforced inner lip, and massive brake clearance make this wheel an ideal choice for enthusiasts demanding uncompromising performance and reliability.
Features
- Advanced flow formed aluminum construction
- Satin Black finish
- Iconic five-spoke design
- Side-milled spokes for reduced weight
- Reinforced inner lip for improved impact resistance
- Massive brake clearance with 0-degree draft barrel design
- Ultra-concave face profile
- Weight optimized through Finite Element Analysis
- Compatible with oversized race lugs and impact sockets
- Multi-stage liquid paint over powder-coated base coat
- Meets or exceeds JWL load requirements
- Hub-centric design
- Gloss black Apex center cap included
- Compatible with OEM hardware and most wheel spacers
- Accepts OEM and aftermarket TPMS sensors
- Standard valve stem compatible
Specifications
- Part Number: VS51795ET35-5120-7256-SMBK
- Wheel Diameter: 17 inches
- Wheel Width: 9.5 inches
- Bolt Pattern: 5x120 BP
- Offset: ET35
- Center Bore: 72.56mm
- Finish: Satin Black
- Construction: Flow Formed Aluminum
- Center Cap Included: Yes
- TPMS Compatible: Yes
Engineered for Performance
The VS-5 benefits from flow-forming technology that improves barrel grain structure and stiffness while keeping weight to a minimum. Side-milled spokes remove unnecessary material without compromising strength, while the reinforced inner lip adds protection against potholes, curbing, and track abuse. Extensive brake scan data helped shape the wheel for exceptional brake clearance and fitment flexibility.
Fitment
- Applications utilizing a 5x120 bolt pattern and 72.56mm center bore
- ET35 offset specification
- Verify brake clearance, suspension clearance, tire clearance, and fender clearance prior to installation
FAQs
How close is the VS-5 to a forged wheel in performance?
The VS-5 weighs only about 2 to 2.5 pounds more than its forged counterpart and incorporates many premium engineering features typically found on fully forged wheels.
Will factory TPMS sensors and wheel hardware work?
Yes. The VS-5 accepts OEM and aftermarket TPMS sensors and works with factory hardware, wheel locks, stud conversion kits, and most wheel spacers.
