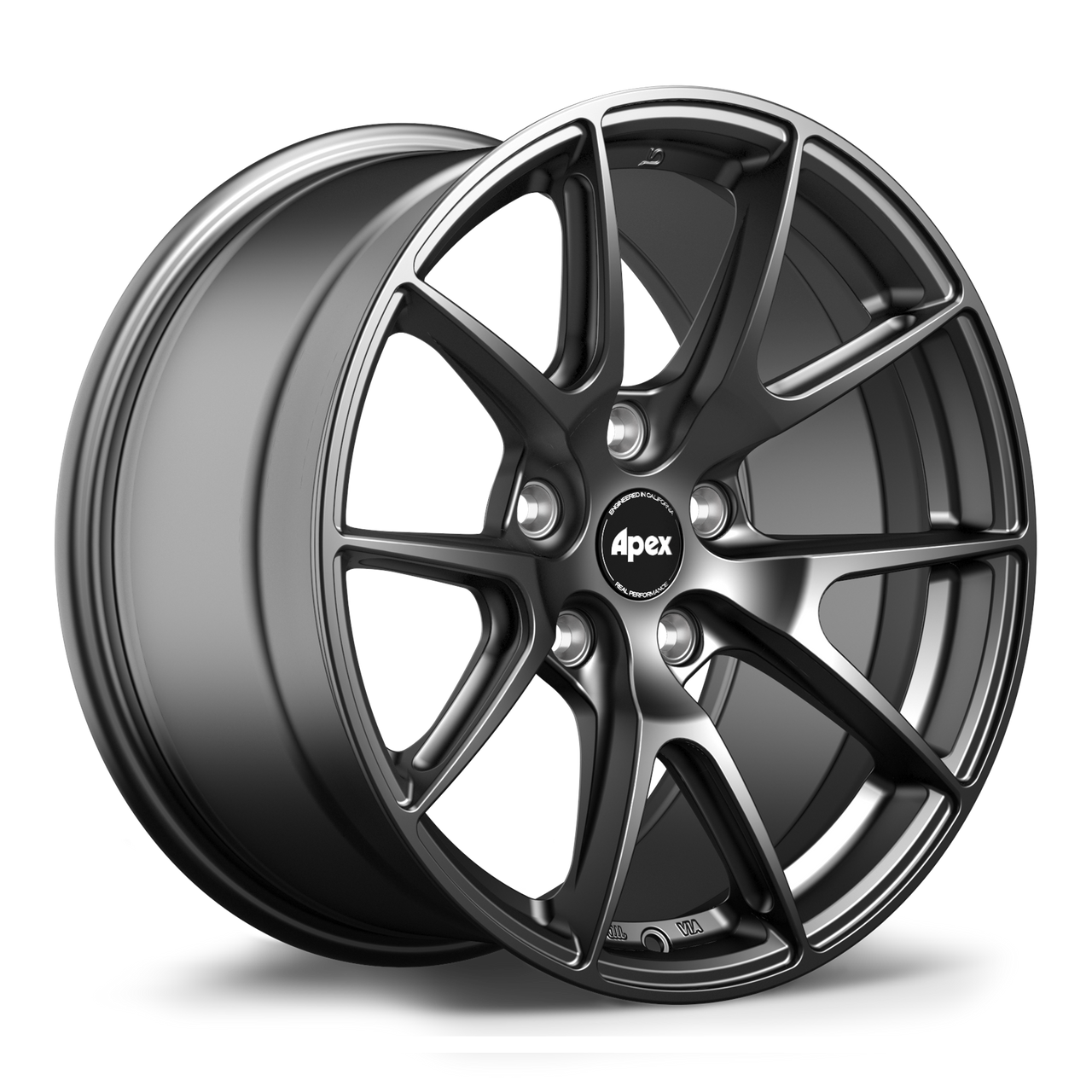

Apex VS-5 17x8.5 Flow Formed Wheel - 5x114.3 BP / ET23 / 60.1mm CB - Satin Black (VS51785ET23-51143-601-SMBK)
The Apex VS-5 pushes the limits of flow-formed wheel technology, offering a strength-to-weight ratio and advanced features typically reserved for forged wheels. Finished in Satin Black, this 17x8.5 wheel delivers aggressive styling and track-capable performance while weighing only approximately 2 to 2.5 pounds more than its forged counterpart. For enthusiasts seeking maximum performance without stepping into a fully forged wheel, the VS-5 represents the pinnacle of flow-formed engineering.
Part of the Apex Evolution Line, the VS-5 incorporates advanced flow-forming technology, side-milled spokes, reinforced inner lip construction, and extensive Finite Element Analysis optimization. Combined with deep concavity and exceptional brake clearance, the VS-5 is equally suited for spirited street driving and demanding track use.
Features
- Advanced flow-formed aluminum construction
- Satin Black finish
- Iconic five-spoke design
- Side-milled spokes for reduced weight and enhanced appearance
- Reinforced inner lip provides increased impact resistance
- Ultra-concave face profiles maximize styling and performance
- High-clearance barrel design accommodates large brake packages
- Finite Element Analysis optimized construction
- Designed for oversized race lugs and impact sockets
- Multi-stage liquid paint over powder-coated base coat
- Meets or exceeds JWL load standards
- Hub-centric design for select applications
- Gloss black Apex center cap included
- Compatible with OEM hardware and most wheel spacers
- Accepts OEM and aftermarket TPMS sensors
- Supports standard valve stems
Specifications
- Part Number: VS51785ET23-51143-601-SMBK
- Series: VS-5 Evolution Line
- Wheel Size: 17x8.5
- Bolt Pattern: 5x114.3 BP
- Offset: ET23
- Center Bore: 60.1mm
- Finish: Satin Black
- Construction: Flow Formed Aluminum
- Center Cap Included: Yes
- TPMS Compatible: Yes
Engineered for Maximum Performance
The VS-5 utilizes extensive side milling and advanced engineering to remove unnecessary mass while preserving rigidity and durability. A reinforced inner lip adds protection against potholes and curbing, while aggressive concavity and exceptional brake clearance make the VS-5 an ideal solution for performance enthusiasts seeking both style and function.
Fitment
- Applications utilizing a 5x114.3 bolt pattern and 60.1mm center bore
- ET23 offset specification
- Verify brake clearance, suspension clearance, tire clearance, and fender clearance prior to installation
FAQs
How does the VS-5 compare to forged wheels?
The VS-5 offers an impressive strength-to-weight ratio and weighs only about 2 to 2.5 pounds more than its forged counterpart, making it one of the highest-performing flow-formed wheels available.
Can I reuse my factory TPMS sensors?
Yes. The VS-5 accepts both OEM and aftermarket TPMS sensors and works with standard valve stems.
