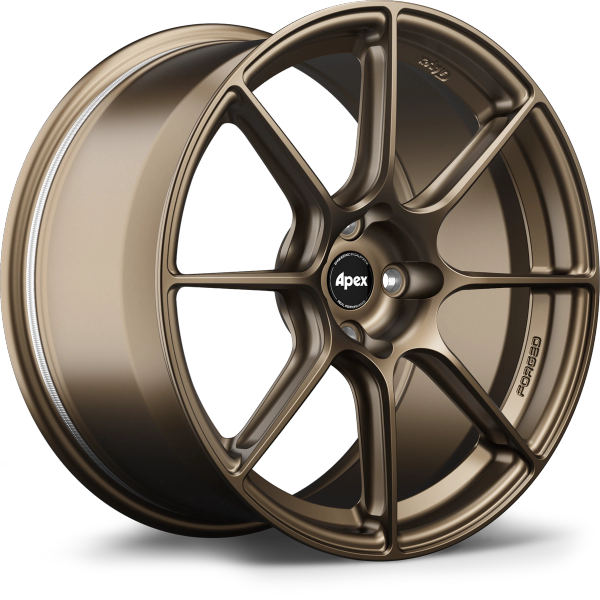

Apex SM-8RS 17x10 Forged Wheel - 4x100 BP / ET43 / 54.1mm CB - Satin Bronze (SM8RS1710ET43-4100-541-NSBZ)
The Apex SM-8RS was engineered specifically for the Mazda ND MX-5 Miata and delivers serious track capability without sacrificing durability. As part of Apex's Sprint Line, this forged 8-spoke design takes inspiration from the popular SM-10RS while bringing a unique look and exceptional performance to one of the most popular sports car platforms ever built. Finished in Satin Bronze, the SM-8RS combines lightweight construction, race-proven stiffness, and impressive strength for both aggressive street driving and dedicated track use.
Built from forged 6061-T6 aluminum using an immense 10,000-ton forging process, the SM-8RS boasts a remarkable 1,400-pound load rating. That's more than 230 pounds above JWL requirements and approximately 185 pounds stronger than many aftermarket ND Miata wheels. Proprietary motorsport blanks, extensive Finite Element Analysis, and the strengthened Sprint spec inner lip all work together to create a wheel that excels under demanding conditions while maintaining minimal weight.
Features
- Forged 6061-T6 aluminum construction
- Manufactured using a 10,000-ton forging process
- Designed specifically for the Mazda ND MX-5 Miata platform
- Outstanding 1,400-pound load rating
- Exceeds JWL requirements by over 230 pounds
- Approximately 185 pounds stronger than many aftermarket ND Miata wheels
- I-beam side-milled spokes reduce weight while maintaining rigidity
- Sprint spec inner lip is 32% stronger than previous designs
- Finite Element Analysis optimized for strength and stiffness
- Independent testing beyond JWL standards
- Designed to clear factory Brembo brakes and many aftermarket BBKs
- Paintless knurled bead seats reduce tire slippage
- Compatible with oversized race lugs and impact sockets
- Laser-engraved barrel specifications
- Hub-centric design minimizes the need for centering rings
- Includes gloss Bronze Apex center cap
- Compatible with OEM and aftermarket TPMS sensors
- Accepts standard valve stems
- Premium Satin Bronze finish
Specifications
- Part Number: SM8RS1710ET43-4100-541-NSBZ
- Series: SM-8RS Sprint Line
- Wheel Size: 17x10
- Bolt Pattern: 4x100 BP
- Offset: ET43
- Center Bore: 54.1mm
- Finish: Satin Bronze
- Material: Forged 6061-T6 Aluminum
- Load Rating: 1,400 lbs
Track-Focused Engineering
The SM-8RS was developed specifically around the ND Miata platform. Both the 9-inch and 10-inch versions were engineered to clear the factory Brembo package and many aftermarket big brake kits while providing exceptional stiffness and durability. The result is a wheel that feels equally at home during weekend canyon drives or long sessions at the race track.
Fitment
- Applications utilizing a 4x100 bolt pattern and 54.1mm center bore
- ET43 offset specification
- Verify brake, suspension, tire, and fender clearance before installation
FAQs
Will these wheels clear factory Brembo brakes?
Yes. The SM-8RS 9-inch and 10-inch fitments were specifically engineered to clear the ND Miata factory Brembo package and many aftermarket big brake kits.
Can factory TPMS sensors be reused?
Yes. All SM-8RS wheels are compatible with OEM and aftermarket TPMS sensors and accept standard valve stems.
