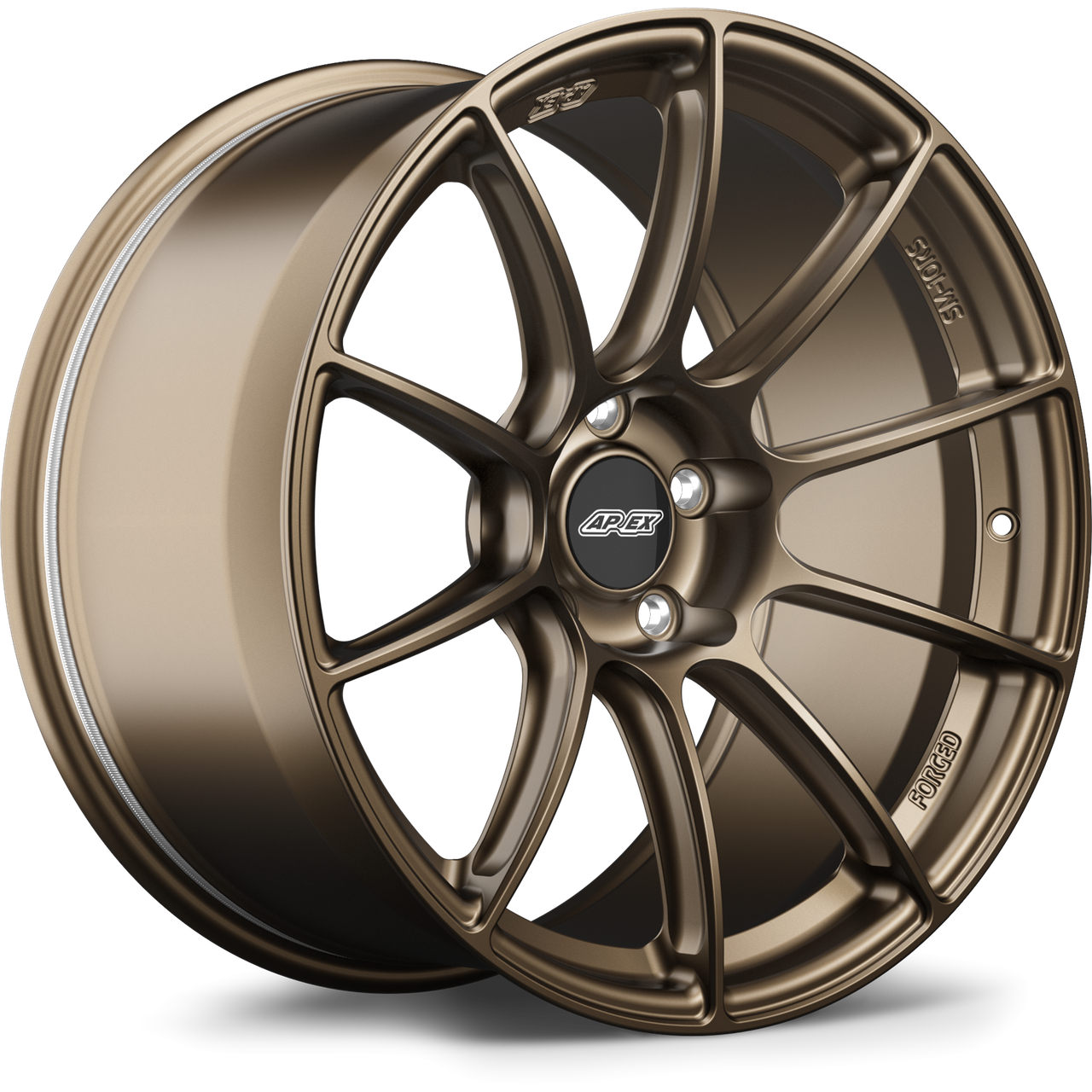

Apex SM-10RS 19x9.5 Forged Wheel - Satin Bronze (SM10RS1995ET29-51143-641-NSBZ)
The Apex SM-10RS delivers uncompromising performance for enthusiasts who demand lightweight construction without sacrificing durability. Part of Apex's Sprint Line, the SM-10RS combines advanced 10K-ton forging technology with race-proven engineering to create a wheel that excels on both the street and the track. Finished in Satin Bronze, this 19x9.5 wheel provides a distinctive motorsport-inspired appearance backed by exceptional strength and stiffness.
Built from proprietary 6061-T6 forged aluminum blanks, the SM-10RS was engineered to maximize brake clearance, steering response, and overall structural integrity. Extensive Finite Element Analysis and independent third-party testing allow Apex to deliver a wheel that performs under the most demanding conditions while maintaining impressive weight savings.
10K Ton Forged Construction
Each SM-10RS starts as a forged aluminum blank weighing up to 120 pounds before machining. Specialized forging presses applying 10,000 metric tons of pressure improve the grain structure and reduce porosity, creating an incredibly strong foundation that allows engineers to optimize weight without compromising durability.
True Motorsport Blanks
Unlike many wheel manufacturers that utilize generic third-party forgings, Apex developed proprietary motorsport-specific blanks from the ground up. This gives engineers complete control over spoke geometry, concavity, brake clearance, and structural integrity.
I-Beam Spoke Technology
Precision CNC side-milling creates an I-beam profile on every spoke, removing excess material while maintaining strength where it matters most. The result is reduced rotational mass and improved responsiveness without sacrificing rigidity.
Stronger Lightweight Design
After removing unnecessary material, Apex strategically reinforced critical stress areas to create a stronger inner lip and improved load capacity. The result is a lightweight wheel built to withstand demanding use.
Advanced FEA Optimization
Extensive Finite Element Analysis was used to optimize material placement throughout the wheel. Reinforcement was added only where necessary, resulting in exceptional strength-to-weight characteristics.
Greater Stiffness
The SM-10RS delivers nearly 10 percent greater stiffness than the VS-5RS while maintaining similar weight. Compared to Apex's first-generation forged wheels, stiffness improvements approach 25 percent.
Independent Third-Party Testing
Testing performed by STL in Ohio exceeds traditional JWL requirements with increased impact heights, extended testing durations, and greater load capacities to ensure reliability under extreme conditions.
Sprint Spec Reinforced Inner Lip
The reinforced Sprint spec inner lip utilizes a unique channel profile engineered for improved impact resistance. Despite weighing less than many comparable wheels, the SM-10RS offers outstanding durability.
Massive Brake Clearance
A high-clearance barrel design and application-specific spoke profiles developed using advanced laser scanning allow compatibility with many factory and aftermarket brake systems.
Deep Concavity
Redesigned forging architecture allows aggressive concave profiles without compromising brake clearance or structural integrity.
Paintless Knurled Bead Seats
Unpainted knurled bead seats maximize tire retention under hard acceleration and braking while reducing the possibility of tire slippage.
Track-Ready Details
The SM-10RS accommodates oversized race lugs and impact sockets for quick wheel changes. Laser-engraved specifications remain easy to identify throughout the life of the wheel.
Hub-Centric and TPMS Compatible
SM-10RS wheels are engineered to be hub-centric whenever possible and are fully compatible with OEM and aftermarket TPMS sensors and standard valve stems.
Specifications
- Part Number: SM10RS1995ET29-51143-641-NSBZ
- Wheel Series: SM-10RS Sprint Line
- Wheel Size: 19x9.5
- Bolt Pattern: 5x114.3 BP
- Offset: ET29
- Center Bore: 64.1mm
- Finish: Satin Bronze
- Construction: 10K Ton Forged 6061-T6 Aluminum
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Proprietary Motorsport Forging Blank Design
- Side-Milled I-Beam Spokes
- Sprint Spec Reinforced Inner Lip
- Advanced FEA Weight Optimization
- Improved Wheel Stiffness
- Independent Third-Party Testing
- Massive Brake Clearance
- Deep Concave Face Design
- Paintless Knurled Bead Seats
- Impact Socket Compatible
- Laser-Engraved Specifications
- Hub-Centric Engineering
- OEM and Aftermarket TPMS Compatible
- Satin Bronze Finish
Fitment
- Designed for select 5x114.3 bolt pattern applications
- 64.1mm center bore configuration
- ET29 offset specification
- Verify wheel, tire, brake, suspension, and fender clearance before installation
FAQs
What are the benefits of the SM-10RS forged construction?
The 10K-ton forged 6061-T6 aluminum construction provides exceptional strength, reduced weight, improved stiffness, and outstanding durability for demanding street and track use.
Will factory TPMS sensors fit this wheel?
Yes. The SM-10RS accepts OEM and aftermarket tire pressure monitoring sensors along with standard valve stems.
