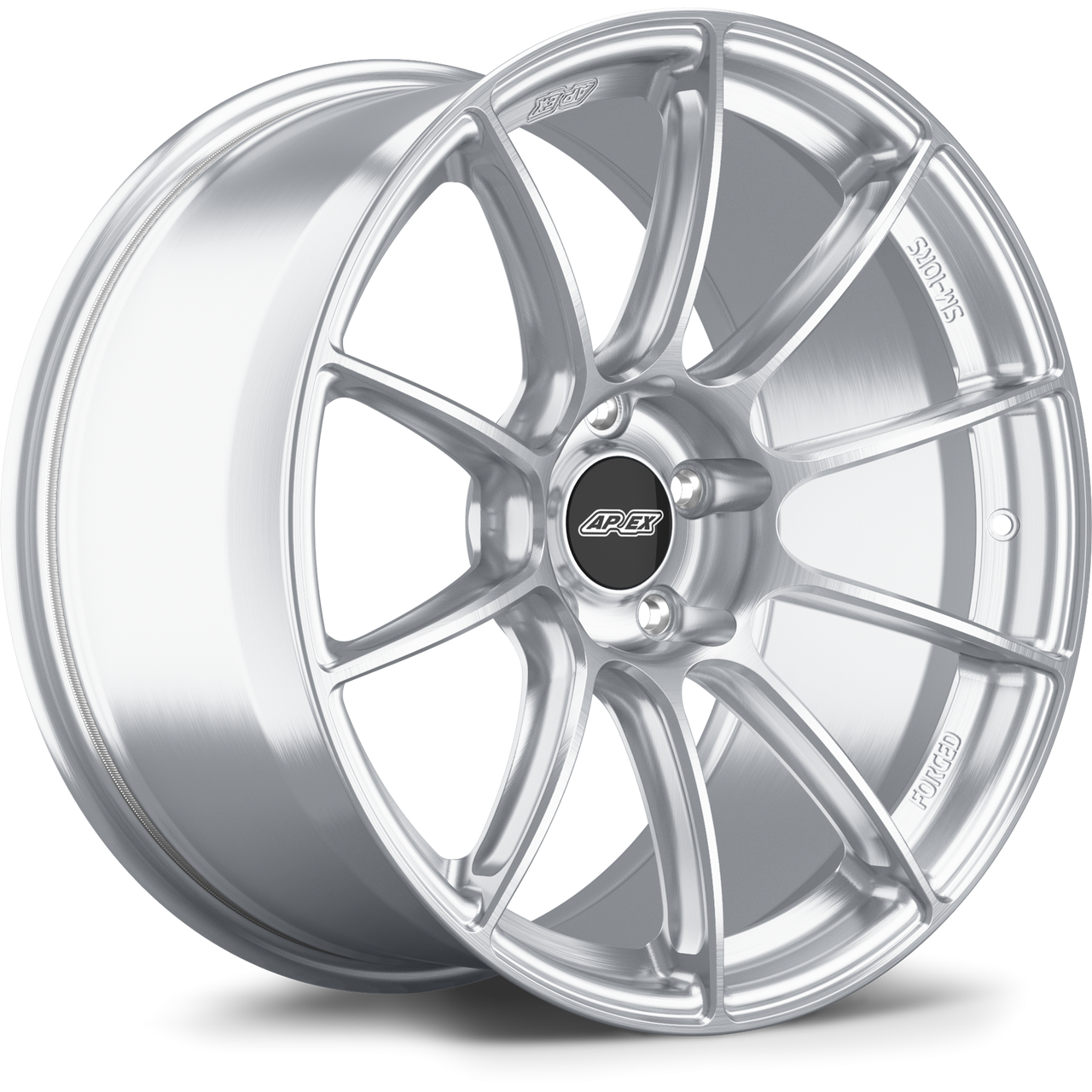

Apex SM-10RS 19x12 Forged Wheel - 5x120 BP / ET50 / 67.1mm CB - Brushed Clear (SM10RS1912ET50-5120-671-BC)
The Apex SM-10RS is a purpose-built forged wheel engineered for drivers who refuse to compromise between strength, stiffness, and weight. As part of Apex's Sprint Line, the SM-10RS combines cutting-edge forged wheel technology with extensive motorsport development to create a wheel that excels on the street, at the track, and everywhere in between. Finished in Brushed Clear, this 19x12 wheel delivers an aggressive motorsport appearance backed by serious performance credentials.
Every SM-10RS starts as a proprietary 6061-T6 aluminum forging produced under an immense 10,000 metric tons of pressure. This process improves grain structure, eliminates porosity, and creates an incredibly strong foundation before precision CNC machining begins. Apex then utilizes advanced Finite Element Analysis to optimize every surface, strategically removing unnecessary material while reinforcing critical load-bearing areas. The result is a forged wheel that is exceptionally lightweight while maintaining the strength and durability demanded by high-performance driving.
Specifications
- Part Number: SM10RS1912ET50-5120-671-BC
- Wheel Size: 19x12
- Bolt Pattern: 5x120
- Offset: ET50
- Center Bore: 67.1mm
- Finish: Brushed Clear
- Construction: 10K Ton Forged 6061-T6 Aluminum
- Wheel Line: Sprint Line
- TPMS Compatible: Yes
- Hub Centric: Yes
Features
- 10K Ton forged 6061-T6 aluminum construction
- True motorsport-specific forging blanks designed by Apex
- Advanced I-beam spoke design with extensive side milling
- Sprint Spec reinforced inner lip for greater durability
- Weight optimized using Finite Element Analysis technology
- Nearly 10% stiffer than the VS-5RS wheel design
- Approximately 25% stiffer than first-generation Apex forged wheels
- Independently tested beyond standard JWL requirements
- Massive brake clearance through advanced barrel engineering
- Deep concave spoke profiles for enhanced aesthetics
- Paintless knurled bead seats for superior tire retention
- Built to accommodate oversized race lugs and impact sockets
- Laser-engraved wheel specifications for easy identification
- Accepts OEM and aftermarket TPMS sensors
- Compatible with standard valve stems
True Motorsport Engineering
Unlike many forged wheels that utilize generic third-party blanks, Apex developed proprietary forging profiles specifically for motorsport applications. This allows complete control over brake clearance, spoke geometry, concavity, and overall performance, ensuring every SM-10RS is optimized for real-world driving demands.
Advanced I-Beam Spoke Design
The SM-10RS utilizes aggressive side milling on both sides of every spoke, creating a true I-beam structure. This design removes excess material that does not contribute to strength while maintaining exceptional stiffness, resulting in improved handling response and reduced rotational mass.
Sprint Spec Inner Lip Technology
Apex reinforced critical impact zones with its Sprint Spec inner lip profile. Even though the SM-10RS weighs significantly less than many comparable wheels, it delivers enhanced impact resistance and durability where it matters most.
Fitment
- 5x120 Bolt Pattern Applications
- 67.1mm Center Bore Applications
- ET50 Offset Configuration
- Verify brake clearance, suspension clearance, tire sizing, and fender clearance before installation
FAQs
What makes the SM-10RS different from a typical forged wheel?
The SM-10RS uses proprietary motorsport-specific forgings, advanced Finite Element Analysis, reinforced Sprint Spec inner lip technology, and independent testing standards that exceed JWL requirements.
Can factory TPMS sensors be reused with this wheel?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors and utilizes standard valve stems for straightforward installation.
