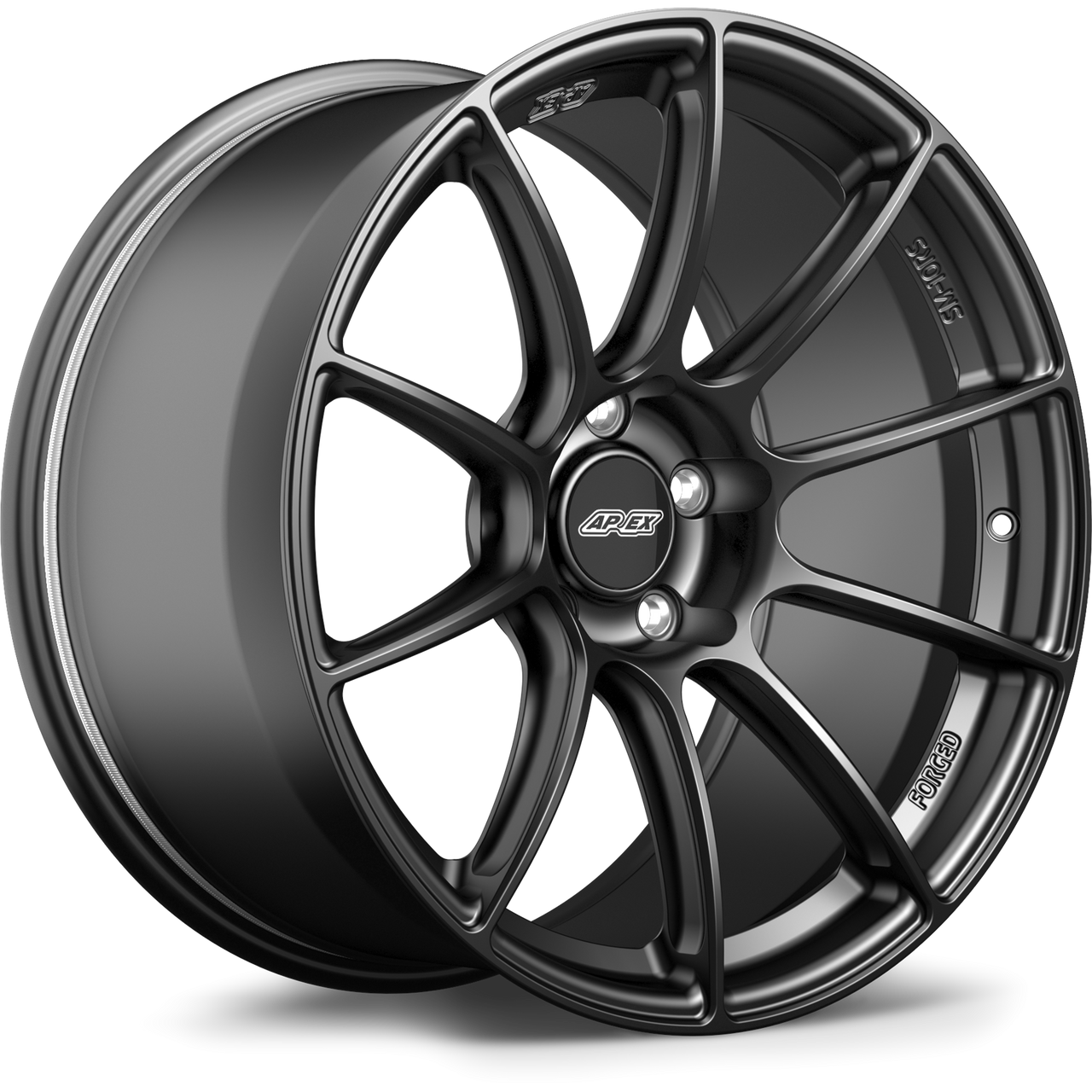

Apex SM-10RS 19x11 Forged Wheel - 5x130 BP / ET48 / 71.6mm CB - Satin Black (SM10RS1911ET48-5130-716-NSBK)
The Apex SM-10RS represents the next evolution of lightweight forged wheel technology, delivering exceptional strength, stiffness, and durability without compromising weight. As a member of Apex's Sprint Line, the SM-10RS was engineered specifically for enthusiasts who demand race-ready performance, advanced engineering, and uncompromising reliability. From aggressive street driving to demanding track sessions, the SM-10RS is built to perform at the highest level.
Manufactured from forged 6061-T6 aluminum and formed under an immense 10,000 metric tons of pressure, each wheel begins as a forging weighing up to 120 pounds before precision CNC machining removes excess material. Through extensive Finite Element Analysis, Apex engineers strategically reinforced high-stress areas while eliminating unnecessary mass. The result is a wheel that delivers remarkable strength, improved stiffness, and impressive impact resistance while remaining exceptionally lightweight.
Quick Specs
- Brand: Apex
- Model: SM-10RS
- Part Number: SM10RS1911ET48-5130-716-NSBK
- Wheel Size: 19x11
- Bolt Pattern: 5x130 BP
- Offset: ET48
- Center Bore: 71.6mm
- Finish: Satin Black
- Construction: Forged 6061-T6 Aluminum
- Wheel Line: Apex Sprint Line Forged Series
- Structure: One-Piece Forged Wheel
Features
- Forged 6061-T6 aluminum construction utilizing 10,000 metric tons of pressure
- Purpose-built motorsport forging blanks engineered exclusively by Apex
- Advanced I-beam spoke technology created through precision side milling
- Stronger Sprint Spec inner lip for enhanced impact resistance
- Weight-optimized design developed through extensive Finite Element Analysis
- Nearly 10% stiffer than the Apex VS-5RS while maintaining similar weight
- Approximately 25% stiffer than Apex's first-generation forged wheel designs
- Independently tested beyond standard JWL requirements
- Massive brake clearance through optimized barrel and spoke geometry
- Deep concave spoke profiles engineered for performance applications
- Paintless knurled bead seats help reduce tire slippage during hard acceleration and braking
- Compatible with oversized race lugs and impact sockets
- Laser-engraved wheel specifications for easy identification
- Hub-centric design minimizes the need for centering rings
- Accepts OEM and aftermarket TPMS sensors
- Compatible with OEM mounting hardware in most applications
- Includes Apex center cap on applicable fitments
10K Ton Forged Strength
The SM-10RS utilizes an advanced forging process that applies 10,000 metric tons of pressure to premium 6061-T6 aluminum. This process improves grain structure, increases material density, and minimizes porosity to create an exceptionally strong wheel capable of handling extreme performance demands.
I-Beam Spoke Technology
Precision CNC side milling removes excess material from both sides of each spoke, creating an advanced I-beam profile that reduces weight while preserving exceptional strength and rigidity. This design allows Apex to maximize performance without sacrificing durability.
Optimized for Maximum Performance
Extensive Finite Element Analysis was used throughout the design process to optimize material placement and reinforce critical stress areas. Combined with the stronger Sprint spec inner lip, the SM-10RS delivers impressive impact resistance, increased stiffness, and outstanding long-term durability.
Track-Tested Engineering
The SM-10RS is independently tested beyond standard JWL requirements and incorporates motorsport-focused features such as paintless knurled bead seats, oversized socket clearance, deep concavity, and laser-engraved specifications. Every detail was developed to meet the demands of serious enthusiasts and racers.
Fitment
- Applications Utilizing 5x130 Bolt Pattern and 71.6mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
Why does Apex use paintless knurled bead seats?
Paintless knurled bead seats maintain maximum grip between the wheel and tire, helping reduce tire movement under heavy acceleration and braking conditions often encountered during track use.
Will OEM TPMS sensors fit these wheels?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors and works with standard valve stems.
