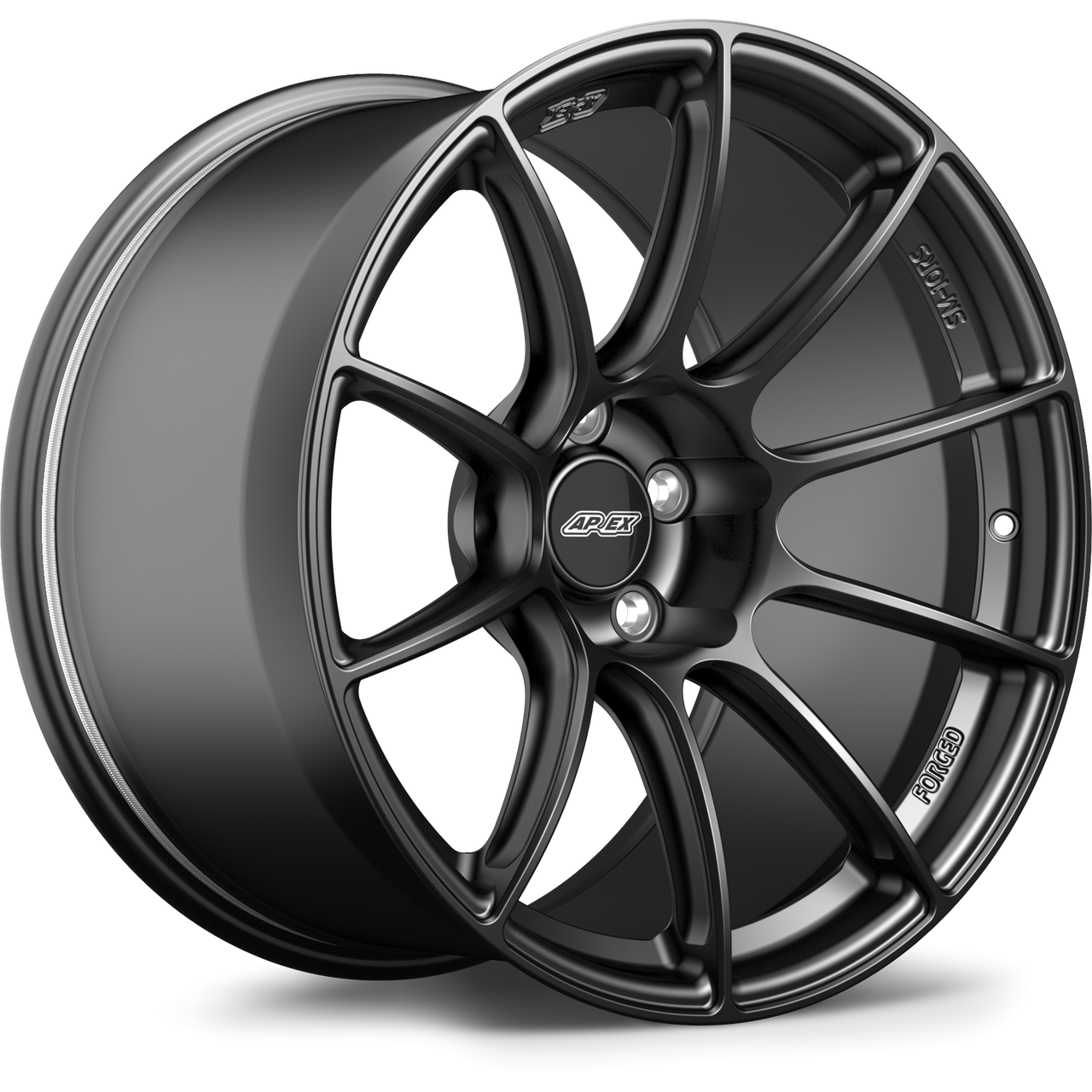

Apex SM-10RS 19x11 Forged Wheel - 5x112 BP / ET22 / 66.6mm CB - Satin Black (SM10RS1911ET22-5112-666-NSBK)
The Apex SM-10RS brings serious forged performance to drivers who want a wheel that is light, strong, stiff, and ready for real use. As part of Apex's Sprint Line, this 19x11 Satin Black SM-10RS is built from forged 6061-T6 aluminum and engineered for enthusiasts who care about weight savings, brake clearance, strength, and confidence at speed.
Each SM-10RS starts as a massive forged blank formed under 10,000 metric tons of pressure. That process helps improve aluminum grain structure, reduce porosity, and create the foundation for a wheel that can handle hard street driving, track days, sticky tires, and repeated heat cycles. Apex then uses advanced FEA optimization and precision machining to remove weight where it is not needed while reinforcing the areas that matter most.
Quick Specs
- Brand: Apex
- Model: SM-10RS
- Part Number: SM10RS1911ET22-5112-666-NSBK
- Wheel Size: 19x11
- Bolt Pattern: 5x112 BP
- Offset: ET22
- Center Bore: 66.6mm
- Finish: Satin Black
- Construction: Forged 6061-T6 Aluminum
- Wheel Line: Apex Sprint Line
- Structure: One-Piece Forged Wheel
Features
- 10,000 metric ton forged 6061-T6 aluminum construction for high strength and reduced weight
- True motorsport forging blanks designed specifically for performance wheel applications
- I-beam spoke machining removes unnecessary material while maintaining strength
- Sprint Line inner lip design adds durability in a critical impact zone
- FEA-optimized spoke and barrel design balances low weight with increased stiffness
- Nearly 10 percent stiffer than Apex VS-5RS wheels while remaining similar in weight
- Approximately 25 percent stiffer than Apex's first-generation forged wheels
- Independently tested by STL beyond standard JWL requirements
- High-clearance barrel design helps accommodate large brake setups
- Deep concave spoke profile engineered around application-specific clearance needs
- Paintless knurled bead seats help reduce tire movement during hard braking and acceleration
- Built to accept oversized race lugs and impact sockets for easier wheel swaps
- Laser-engraved specifications on the barrel for easy identification
- Hub-centric design for applications using a 66.6mm center bore
- Accepts OEM and aftermarket TPMS sensors with standard valve stems
- Designed to work with OEM mounting hardware wherever applicable
Forged Strength Without the Dead Weight
The SM-10RS is not just a lightweight wheel with a good spec sheet. Apex engineered the Sprint Line to remove as much unnecessary mass as possible, then strategically added material back into high-stress areas to improve real-world durability. The result is a forged wheel that stays light without becoming fragile.
I-Beam Spoke Engineering
One of the key performance advantages of the SM-10RS is its side-milled spoke design. Apex machines both sides of each spoke to create an I-beam effect, taking out material that does not contribute to strength while keeping the wheel rigid and responsive under load.
Brake Clearance and Track-Focused Details
Apex designed the SM-10RS around serious performance use, including large brake clearance, oversized hardware access, unpainted knurled bead seats, and laser-engraved specs that stay easy to read over time. These are the details that matter when wheels are being used hard, swapped often, and trusted at speed.
Fitment
- Applications Utilizing 5x112 Bolt Pattern and 66.6mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
Is this Apex SM-10RS wheel forged?
Yes. This SM-10RS wheel is a one-piece forged wheel made from 6061-T6 aluminum using Apex's 10,000 metric ton forging process.
Will this wheel clear big brakes?
The SM-10RS is engineered with a high-clearance barrel and application-focused spoke profiles, but brake clearance should always be verified for your exact vehicle, brake package, and tire setup before ordering.
