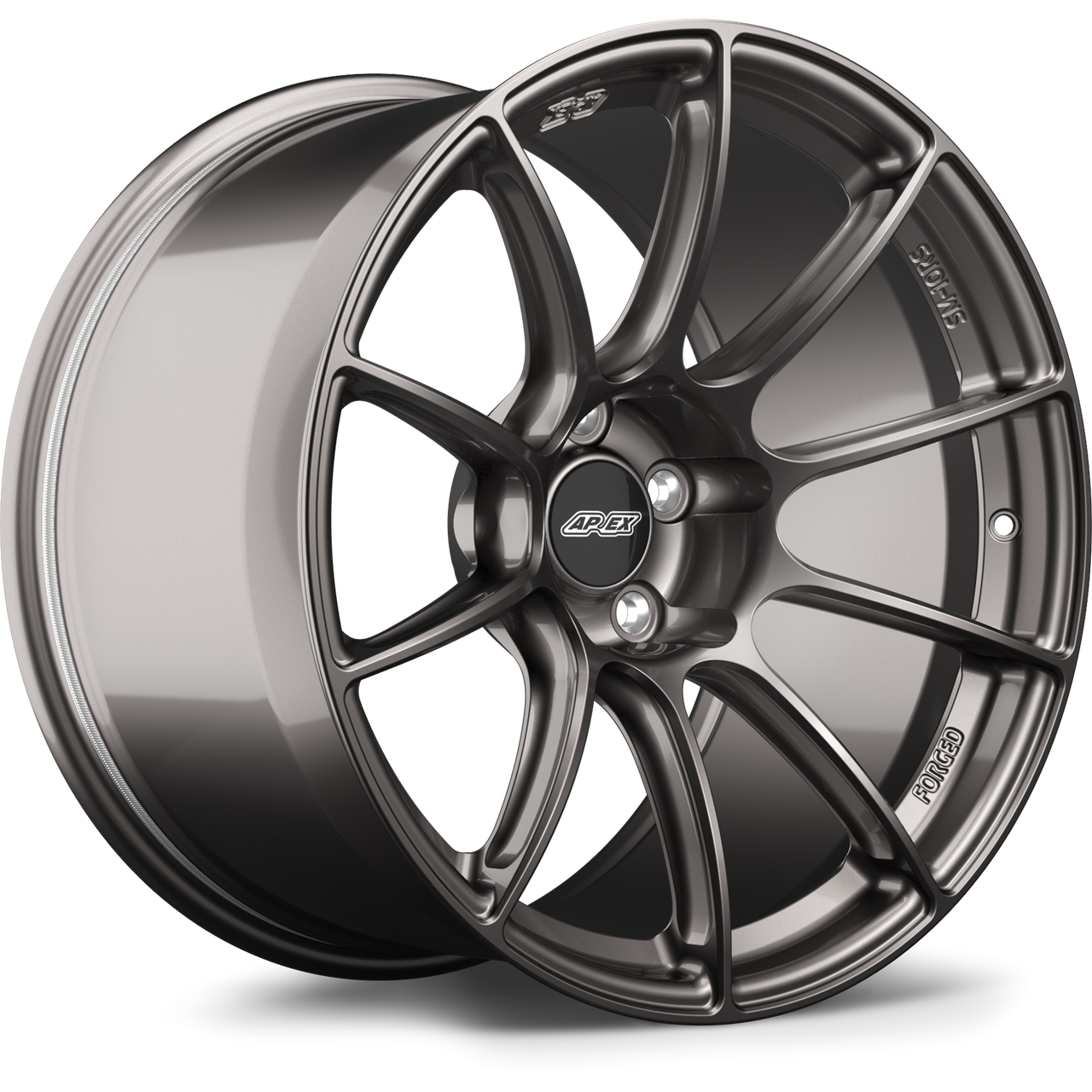

Apex SM-10RS 19x10 Forged Wheel - 5x112 BP / ET12 / 66.6mm CB - Anthracite (SM10RS1910ET12-5112-666-AN)
The Apex SM-10RS represents the next evolution of lightweight forged wheel performance. Developed as part of Apex's Sprint Line, the SM-10RS combines cutting-edge engineering, motorsport-proven durability, and exceptional weight optimization into a wheel designed for enthusiasts who demand maximum performance on both the street and track. Finished in Anthracite, this 19x10 wheel delivers an aggressive motorsport-inspired appearance backed by serious engineering.
Starting with proprietary motorsport-specific forging blanks, Apex uses an incredible 10,000 metric tons of pressure to transform massive 6061-T6 aluminum forgings into an exceptionally strong foundation. Unlike generic forged blanks, these purpose-built forgings allow Apex engineers complete control over brake clearance, spoke geometry, concavity, and overall performance. The result is a wheel that achieves remarkable strength and rigidity while remaining exceptionally lightweight.
Specifications
- Part Number: SM10RS1910ET12-5112-666-AN
- Wheel Diameter: 19 inch
- Wheel Width: 10 inch
- Bolt Pattern: 5x112 BP
- Offset: ET12
- Center Bore: 66.6mm
- Finish: Anthracite
- Construction: Fully Forged 6061-T6 Aluminum
- Manufacturing Process: 10K Ton Forging
- Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
The SM-10RS features Apex's signature I-Beam spoke design, utilizing extensive side milling to remove every ounce of unnecessary material while preserving strength and rigidity. Through extensive Finite Element Analysis, Apex optimized spoke geometry and reinforced critical stress points to create a wheel that is nearly 10% stiffer than the VS-5RS and approximately 25% stiffer than Apex's first-generation forged wheel designs.
A reinforced Sprint Spec inner lip enhances durability and impact resistance, while paintless knurled bead seats help prevent tire slippage during hard acceleration and braking. Massive brake clearance, deep concavity profiles, impact socket-friendly lug pockets, laser-engraved barrel specifications, and OEM TPMS compatibility further reinforce the SM-10RS as a true performance-focused forged wheel.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line Forged Design
- Motorsport-Specific Proprietary Forging Blanks
- I-Beam Side-Milled Spokes for Reduced Weight
- FEA-Optimized Strength and Stiffness
- Nearly 10% Stiffer Than VS-5RS
- Approximately 25% Stiffer Than Previous Apex Forged Designs
- Sprint Spec Reinforced Inner Lip
- Independent Third-Party Testing Beyond JWL Standards
- Massive Big Brake Clearance
- Deep Concavity Profile Design
- Paintless Knurled Bead Seats
- Laser-Engraved Barrel Specifications
- Built for Oversized Race Lugs and Impact Sockets
- Hub-Centric Design
- OEM and Aftermarket TPMS Compatible
- Accepts Standard Valve Stems
- Anthracite Finish
Fitment
- Applications Utilizing 5x112 Bolt Pattern and 66.6mm Center Bore
- Commonly Used on Select BMW Applications Utilizing This Hub Specification
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS different from other forged wheels?
The SM-10RS combines proprietary motorsport-specific forgings, extensive FEA optimization, reinforced impact zones, independent testing, and lightweight Sprint Line engineering to deliver exceptional performance without compromising durability.
Does this wheel support factory TPMS sensors?
Yes. The SM-10RS is fully compatible with OEM and aftermarket TPMS sensors and accepts standard valve stems.
