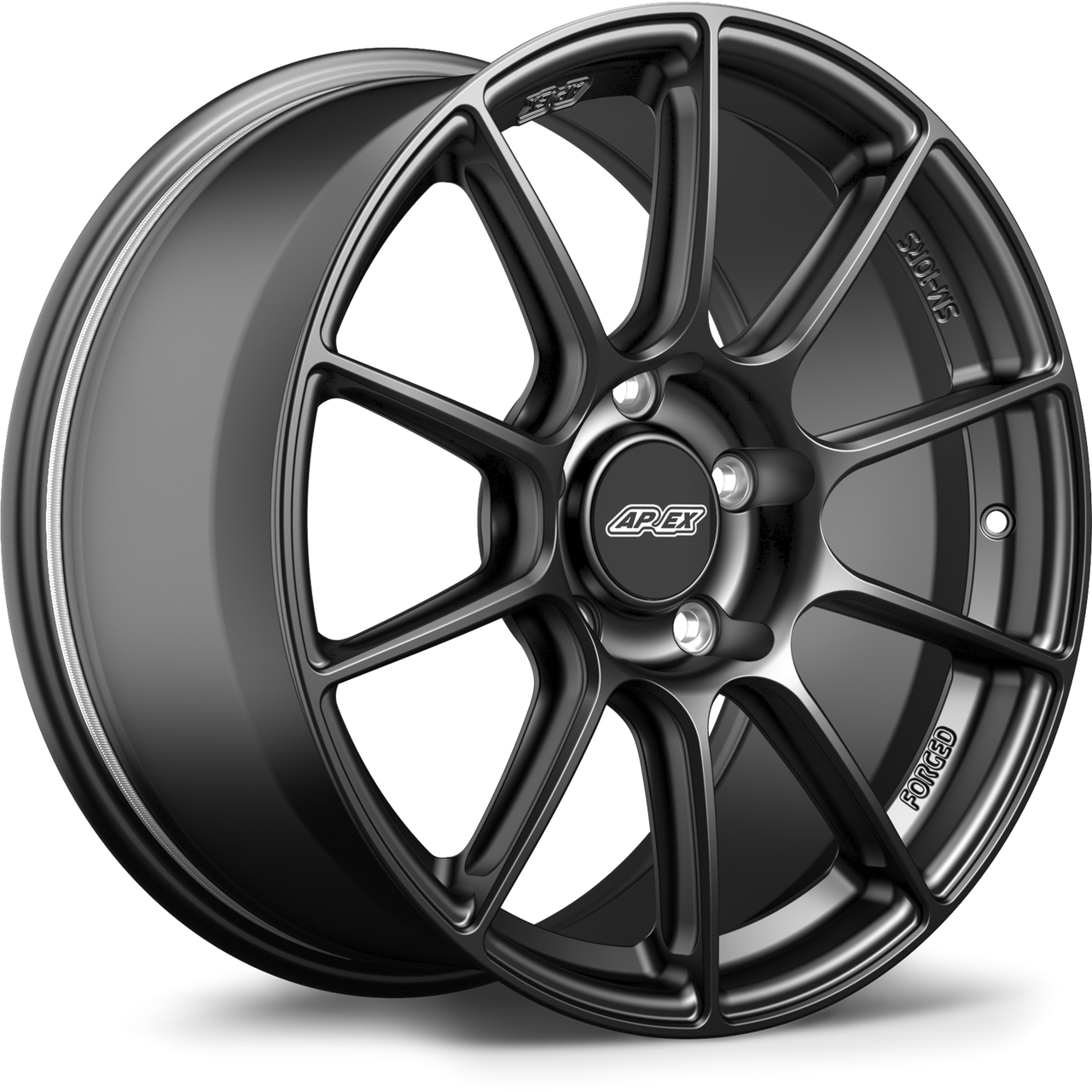

Apex SM-10RS 18x9 Forged Wheel - 5x130 BP / ET46 / 71.6mm CB - Satin Black (SM10RS189ET46-5130-716-NSBK)
The Apex SM-10RS was developed for enthusiasts seeking the ideal combination of lightweight performance, exceptional stiffness, and race-proven durability. As part of Apex's Sprint Line of forged wheels, the SM-10RS leverages advanced forging technology and motorsport-focused engineering to deliver uncompromising performance on the street and at the track.
Manufactured from a massive 6061-T6 aluminum forging formed under an incredible 10,000 metric tons of pressure, the SM-10RS achieves outstanding strength through improved grain structure and reduced porosity. Combined with Apex's proprietary motorsport-specific forging blanks, this wheel delivers exceptional brake clearance, optimized weight reduction, and durability that serious drivers can depend on.
Quick Specs
- Part Number: SM10RS189ET46-5130-716-NSBK
- Wheel Diameter: 18 inch
- Wheel Width: 9 inch
- Bolt Pattern: 5x130 BP
- Offset: ET46
- Center Bore: 71.6mm
- Finish: Satin Black
- Construction: Fully Forged 6061-T6 Aluminum
- Wheel Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
Forged Motorsport Engineering
The SM-10RS starts as a forging weighing up to 120 pounds before machining. The immense pressure utilized during the forging process refines the aluminum grain structure, improves material density, and eliminates porosity, resulting in an exceptionally strong foundation. Unlike manufacturers that utilize generic third-party blanks, Apex designed proprietary motorsport-specific forgings that maximize brake clearance, spoke geometry flexibility, wheel concavity, and overall performance.
Extensive Finite Element Analysis (FEA) was utilized throughout development to reinforce high-stress areas while removing unnecessary material. The result is a wheel that remains exceptionally lightweight without sacrificing strength or durability.
Advanced I-Beam Spoke Technology
One of the defining characteristics of the SM-10RS is its side-milled I-beam spoke architecture. Precision CNC machining removes excess material from both sides of each spoke, reducing rotational mass while maintaining exceptional rigidity. This advanced engineering approach improves steering response, wheel stiffness, and overall vehicle feedback without increasing wheel weight.
The result is a wheel that is nearly identical in weight to the popular VS-5RS while delivering almost 10% greater stiffness and approximately 25% greater stiffness than Apex's first-generation forged wheel designs.
Built for Serious Driving
The SM-10RS features a reinforced Sprint Spec inner lip designed to improve impact resistance while maintaining lightweight performance. Paintless knurled bead seats help prevent tire movement during hard acceleration and braking, while massive brake clearance and application-specific spoke profiles accommodate a wide range of factory and aftermarket brake systems.
To verify durability, Apex utilizes independent testing through STL in Ohio. Sprint Line wheels undergo testing beyond traditional JWL standards using increased loads, longer testing durations, and more severe impact testing procedures.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line Forged Wheel Design
- Proprietary Motorsport-Specific Forging Blanks
- Advanced Side-Milled I-Beam Spokes
- FEA-Optimized Structure for Strength and Weight Reduction
- Stronger Sprint Spec Inner Lip Design
- Higher Load Rating Than Traditional Lightweight Wheel Designs
- Nearly 10% Stiffer Than Comparable Apex Forged Wheel Designs
- Approximately 25% Stiffer Than First-Generation Apex Forged Wheels
- Independent Testing Beyond JWL Standards
- Massive Brake Clearance
- Application-Specific Spoke Profiles
- Deep Concavity Capability
- Paintless Knurled Bead Seats for Enhanced Tire Retention
- Compatible with Oversized Race Lugs and Impact Sockets
- Laser-Engraved Wheel Specifications
- Hub-Centric Fitment Design
- Accepts OEM and Aftermarket TPMS Sensors
- Compatible with Standard Valve Stems
- Satin Black Finish
Fitment
- Applications Utilizing 5x130 Bolt Pattern and 71.6mm Center Bore
- Commonly Compatible with Select Porsche Applications Utilizing 71.6mm Center Bore Hubs
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS part of Apex's Sprint Line?
The Sprint Line focuses on maximizing weight savings while maintaining exceptional strength and stiffness through advanced forging technology, motorsport-specific forgings, and extensive engineering optimization.
Can OEM TPMS sensors be reused with this wheel?
Yes. The SM-10RS accepts OEM and aftermarket TPMS sensors and standard valve stems for straightforward installation.
