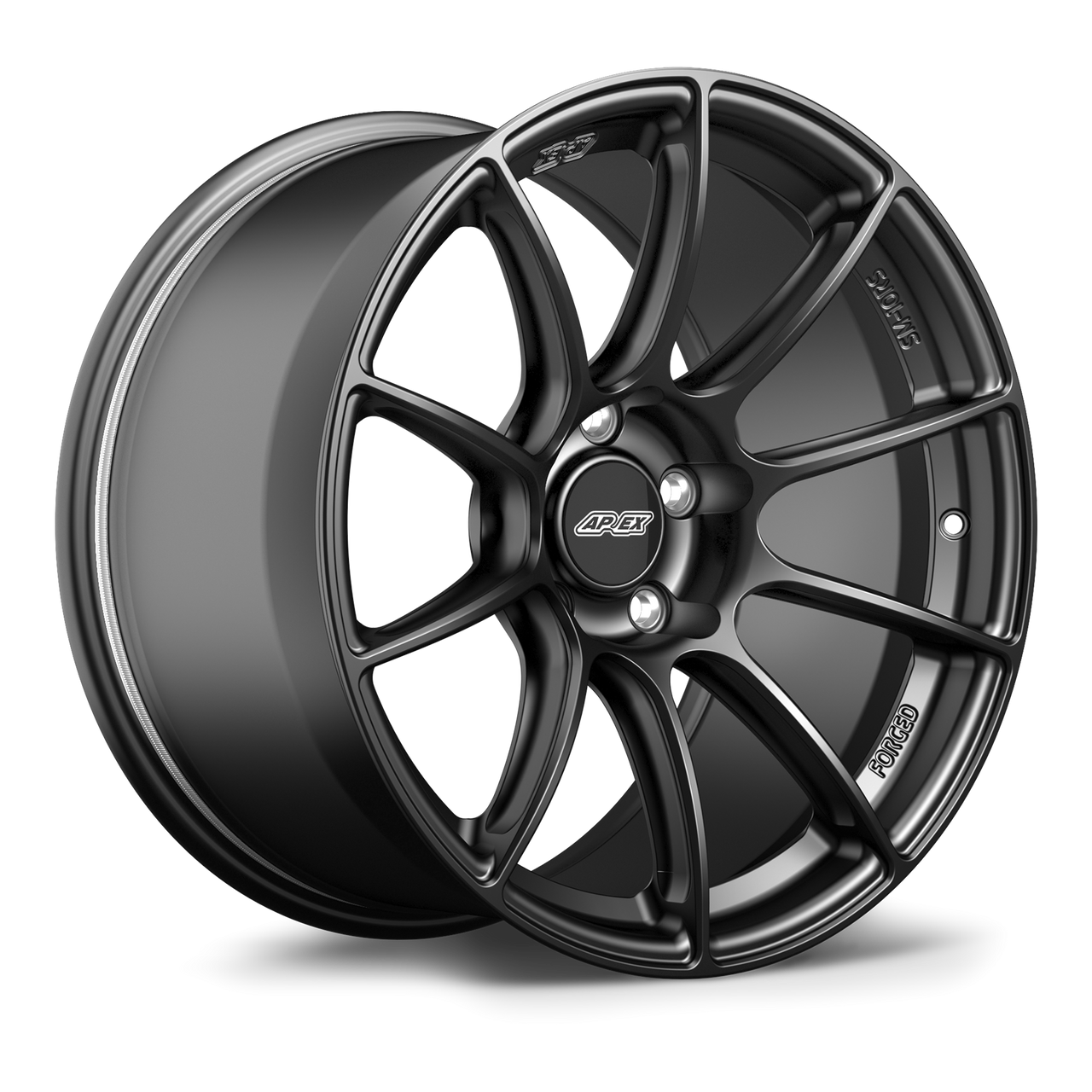

Apex SM-10RS 18x9 Forged Wheel - 5x114.3 BP / ET23 / 60.1mm CB - Satin Black (SM10RS189ET23-51143-601-NSBK)
The Apex SM-10RS is engineered for enthusiasts who expect more from their wheels than just great looks. As part of Apex's Sprint Line of forged wheels, the SM-10RS combines lightweight construction, exceptional stiffness, and race-proven durability into a package designed to perform under the most demanding driving conditions.
Manufactured from a massive 6061-T6 aluminum forging formed under an incredible 10,000 metric tons of pressure, the SM-10RS benefits from improved grain structure and reduced porosity for outstanding strength. Combined with Apex's proprietary motorsport-specific forging blanks, this wheel delivers exceptional brake clearance, optimized spoke geometry, and the durability serious drivers demand from a premium forged wheel.
Quick Specs
- Part Number: SM10RS189ET23-51143-601-NSBK
- Wheel Diameter: 18 inch
- Wheel Width: 9 inch
- Bolt Pattern: 5x114.3 BP
- Offset: ET23
- Center Bore: 60.1mm
- Finish: Satin Black
- Construction: Fully Forged 6061-T6 Aluminum
- Wheel Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
Purpose-Built for Performance
The SM-10RS begins life as a forging weighing up to 120 pounds before machining. The immense pressure used during the forging process refines the aluminum's grain structure while eliminating porosity, creating an exceptionally strong foundation. Unlike many wheel manufacturers that rely on generic third-party blanks, Apex designed proprietary motorsport-specific forgings to maximize brake clearance, spoke geometry flexibility, and overall wheel performance.
Extensive Finite Element Analysis (FEA) was utilized throughout development to reinforce high-load areas while eliminating unnecessary material. This process results in a wheel that is exceptionally lightweight without sacrificing structural integrity or long-term durability.
Advanced I-Beam Spoke Technology
One of the defining characteristics of the SM-10RS is its advanced side-milled I-beam spoke design. Material is precisely machined from both sides of each spoke using CNC equipment, reducing weight while maintaining exceptional rigidity. This sophisticated manufacturing process allows Apex to maximize stiffness and responsiveness without adding unnecessary mass.
The result is a wheel that delivers nearly identical weight to the popular VS-5RS while offering almost 10% greater stiffness and approximately 25% greater stiffness than Apex's first-generation forged wheel designs.
Built to Handle Abuse
The SM-10RS was designed to thrive in demanding environments. The reinforced Sprint Spec inner lip enhances impact resistance, while paintless knurled bead seats help prevent tire slippage under hard braking and acceleration. Massive brake clearance, deep concavity capability, and compatibility with oversized race hardware further reinforce the wheel's motorsport-focused design.
To validate durability, Apex utilizes independent testing through STL in Ohio, where Sprint Line wheels are evaluated beyond traditional JWL standards using increased loads, more severe impact testing, and longer testing durations.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line forged wheel design
- Proprietary motorsport-specific forging blanks
- Advanced side-milled I-beam spokes
- FEA-optimized structure for strength and weight reduction
- Stronger Sprint Spec inner lip design
- Higher load rating than traditional lightweight wheel designs
- Nearly 10% stiffer than comparable Apex forged wheel designs
- Approximately 25% stiffer than first-generation Apex forged wheels
- Independent testing beyond JWL standards
- Massive brake clearance
- Application-specific spoke profiles
- Deep concavity capability
- Paintless knurled bead seats for enhanced tire retention
- Compatible with oversized race lugs and impact sockets
- Laser-engraved wheel specifications
- Hub-centric fitment design
- Accepts OEM and aftermarket TPMS sensors
- Compatible with standard valve stems
- Satin Black finish
Fitment
- Applications Utilizing 5x114.3 Bolt Pattern and 60.1mm Center Bore
- Commonly Compatible with Select Toyota Applications Utilizing 60.1mm Center Bore Hubs
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS different from a standard forged wheel?
The SM-10RS utilizes proprietary motorsport-specific forgings, advanced I-beam spoke machining, extensive FEA optimization, and a reinforced Sprint Spec inner lip to deliver exceptional stiffness, strength, and lightweight performance.
Can factory TPMS sensors be installed in this wheel?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors and is compatible with standard valve stems for easy installation.
