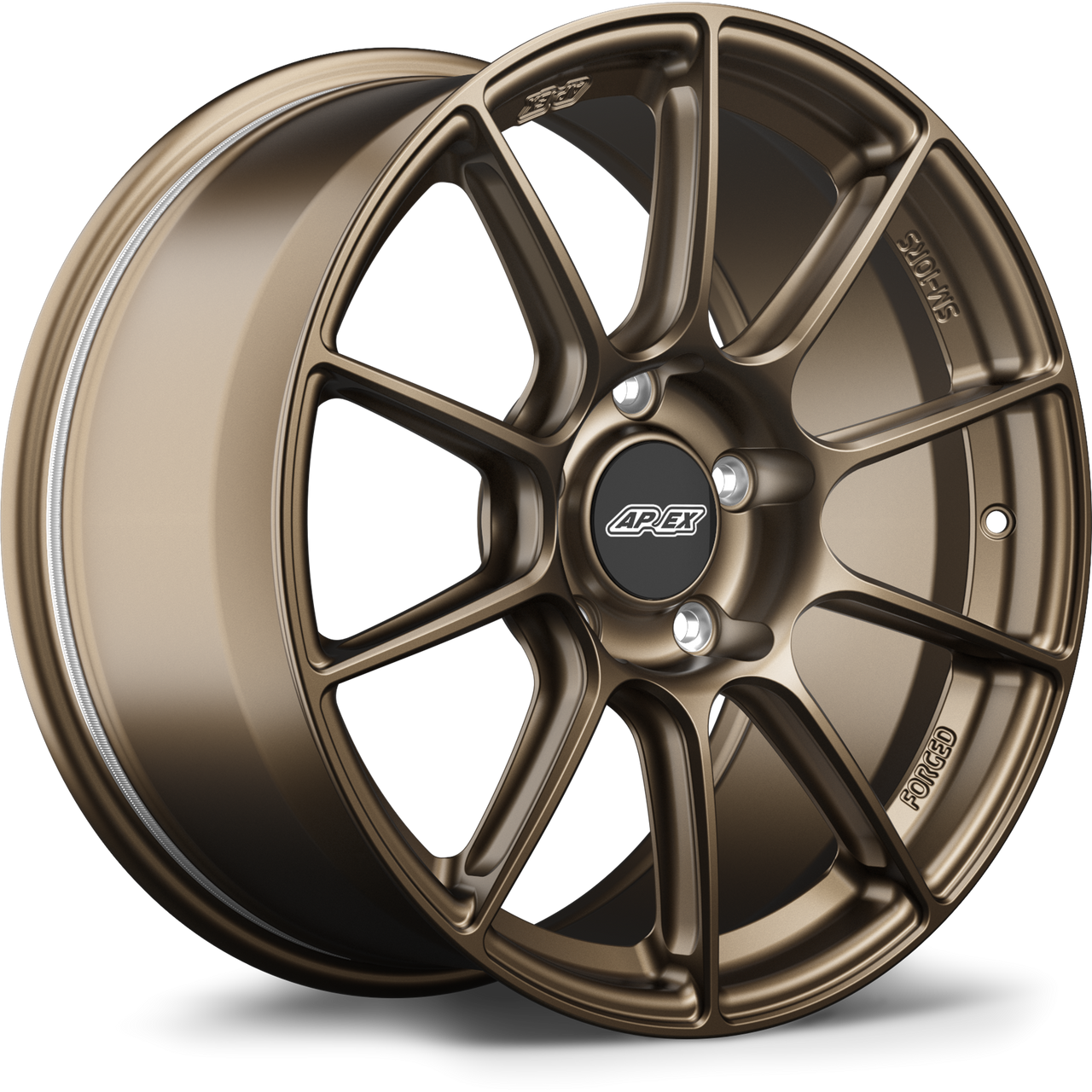

Apex SM-10RS 18x9.5 Forged Wheel - 5x120 BP / ET53 / 64.1mm CB - Satin Bronze (SM10RS1895ET53-5120-641-NSBZ)
The Apex SM-10RS is designed for enthusiasts who demand exceptional performance without sacrificing durability. As part of Apex's Sprint Line of forged wheels, the SM-10RS combines lightweight construction, advanced engineering, and race-proven strength to create a wheel that excels on both the street and the track.
Manufactured from a massive 6061-T6 aluminum forging formed under 10,000 metric tons of pressure, the SM-10RS benefits from improved grain structure and reduced porosity for outstanding strength. Apex's proprietary motorsport-specific forging blanks provide engineers complete control over brake clearance, spoke design, concavity, and structural performance, resulting in a wheel built to outperform conventional forged and flow-formed alternatives.
Quick Specs
- Part Number: SM10RS1895ET53-5120-641-NSBZ
- Wheel Diameter: 18 inch
- Wheel Width: 9.5 inch
- Bolt Pattern: 5x120 BP
- Offset: ET53
- Center Bore: 64.1mm
- Finish: Satin Bronze
- Construction: Fully Forged 6061-T6 Aluminum
- Wheel Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
Lightweight Without Compromise
The SM-10RS was developed with a simple philosophy: reduce weight without sacrificing strength. Apex removed as much unnecessary material as possible through extensive Finite Element Analysis, then strategically reinforced critical stress areas to improve durability and load capacity. The result is a wheel that remains exceptionally lightweight while delivering the confidence needed for demanding performance driving.
A reinforced Sprint Spec inner lip further improves impact resistance, creating a stronger design than previous Apex wheel generations while maintaining impressive weight savings.
Advanced I-Beam Spoke Engineering
One of the most distinctive features of the SM-10RS is its side-milled I-beam spoke design. Material is precision-machined from both sides of each spoke using CNC equipment, removing unnecessary mass while preserving rigidity. This advanced manufacturing process contributes to a wheel that is nearly identical in weight to the VS-5RS while offering almost 10% greater stiffness and approximately 25% greater stiffness than Apex's first-generation forged wheels.
Track-Tested Performance
The SM-10RS is built with motorsport use in mind. Massive brake clearance, application-specific spoke profiles, paintless knurled bead seats, and compatibility with oversized race hardware make it an ideal choice for enthusiasts who regularly push their vehicles to the limit.
To validate durability, Apex partners with STL, an independent testing laboratory in Ohio, where Sprint Line wheels undergo testing beyond standard JWL requirements using increased loads, longer test cycles, and more severe impact testing procedures.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line forged wheel design
- Proprietary motorsport-specific forging blanks
- Advanced side-milled I-beam spokes
- FEA-optimized structure for strength and weight reduction
- Stronger Sprint Spec inner lip design
- Higher load rating than traditional lightweight wheel designs
- Nearly 10% stiffer than comparable Apex forged wheel designs
- Approximately 25% stiffer than first-generation Apex forged wheels
- Independent testing beyond JWL standards
- Massive brake clearance
- Application-specific spoke profiles
- Deep concavity capability
- Paintless knurled bead seats for improved tire retention
- Compatible with oversized race lugs and impact sockets
- Laser-engraved wheel specifications
- Hub-centric fitment design
- Accepts OEM and aftermarket TPMS sensors
- Compatible with standard valve stems
- Satin Bronze finish
Fitment
- Applications Utilizing 5x120 Bolt Pattern and 64.1mm Center Bore
- Commonly Compatible with Select Honda Applications Utilizing 64.1mm Center Bore Hubs
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the Sprint Line different from other Apex wheel lines?
The Sprint Line focuses on maximizing weight savings while maintaining exceptional strength and stiffness through advanced forging technology, proprietary motorsport blanks, and extensive FEA optimization.
Does the SM-10RS support factory TPMS systems?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors and utilizes standard valve stems for easy installation and compatibility.
