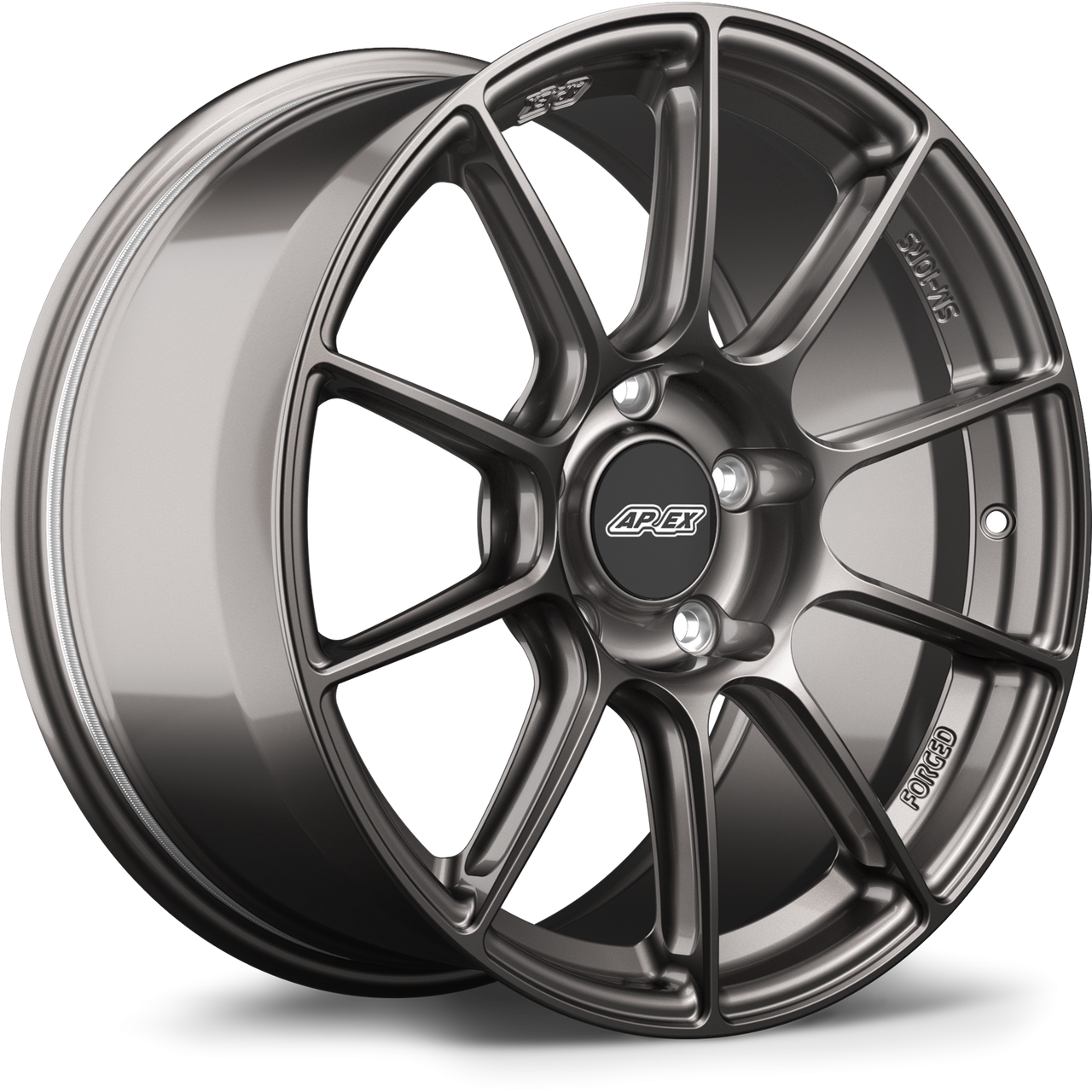

Apex SM-10RS 18x9.5 Forged Wheel - 5x120 BP / ET53 / 64.1mm CB - Anthracite (SM10RS1895ET53-5120-641-AN)
The Apex SM-10RS is engineered for enthusiasts who demand the perfect balance of lightweight performance, exceptional strength, and race-ready durability. As part of Apex's Sprint Line of forged wheels, the SM-10RS utilizes advanced engineering and cutting-edge manufacturing processes to deliver a wheel designed to perform at the highest levels on both the street and the track.
Starting with a massive 6061-T6 aluminum forging formed under 10,000 metric tons of pressure, the SM-10RS achieves superior material strength through refined grain structure and reduced porosity. Combined with Apex's proprietary motorsport-specific forging blanks, the result is a lightweight wheel optimized for stiffness, brake clearance, concavity, and long-term durability.
Quick Specs
- Part Number: SM10RS1895ET53-5120-641-AN
- Wheel Diameter: 18 inch
- Wheel Width: 9.5 inch
- Bolt Pattern: 5x120 BP
- Offset: ET53
- Center Bore: 64.1mm
- Finish: Anthracite
- Construction: Fully Forged 6061-T6 Aluminum
- Wheel Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
Purpose-Built Motorsport Engineering
The SM-10RS begins life as a forging weighing up to 120 pounds before any machining takes place. The immense pressure applied during the forging process improves aluminum density and strength while reducing porosity, creating an exceptionally durable foundation. Unlike many competitors that utilize generic third-party forgings, Apex developed proprietary motorsport-specific blanks to maximize brake clearance, spoke design flexibility, and application-specific performance.
Extensive Finite Element Analysis (FEA) was used throughout development to strengthen high-load areas while eliminating unnecessary material. This process results in a wheel that is exceptionally lightweight without sacrificing structural integrity or durability.
Advanced I-Beam Spoke Technology
One of the defining characteristics of the SM-10RS is its advanced side-milled I-beam spoke design. Material is precision-machined from both sides of each spoke using CNC equipment, reducing weight while maintaining exceptional rigidity. This manufacturing technique is often avoided due to its complexity and cost, but Apex utilizes it to maximize performance without compromise.
The result is a wheel that offers nearly identical weight to the popular VS-5RS while delivering almost 10% greater stiffness and approximately 25% greater stiffness than Apex's first-generation forged wheel designs.
Built for Track and Street Use
The SM-10RS incorporates a reinforced Sprint Spec inner lip that enhances impact resistance while maintaining low overall weight. Paintless knurled bead seats improve tire retention during aggressive acceleration and braking, while massive brake clearance and application-specific spoke profiles provide compatibility with a wide range of performance brake systems.
To ensure real-world durability, Apex partners with STL, an independent testing laboratory in Ohio, where Sprint Line wheels undergo testing beyond traditional JWL standards using increased loads, longer testing durations, and more severe impact procedures.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line forged wheel design
- Proprietary motorsport-specific forging blanks
- Advanced side-milled I-beam spokes
- FEA-optimized structure for strength and weight reduction
- Stronger Sprint Spec inner lip design
- Higher load capacity than typical lightweight wheel designs
- Nearly 10% stiffer than comparable Apex forged wheel designs
- Approximately 25% stiffer than first-generation Apex forged wheels
- Independent testing beyond JWL standards
- Massive brake clearance
- Application-specific spoke profiles
- Deep concavity capability
- Paintless knurled bead seats for improved tire retention
- Compatible with oversized race lugs and impact sockets
- Laser-engraved wheel specifications
- Hub-centric fitment design
- Accepts OEM and aftermarket TPMS sensors
- Compatible with standard valve stems
- Anthracite finish
Fitment
- Applications Utilizing 5x120 Bolt Pattern and 64.1mm Center Bore
- Commonly Compatible with Select Honda Applications Utilizing 64.1mm Center Bore Hubs
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS different from traditional forged wheels?
The SM-10RS combines proprietary motorsport-specific forgings, advanced I-beam spoke machining, extensive FEA optimization, and a reinforced Sprint Spec inner lip to provide exceptional stiffness, strength, and lightweight performance.
Can factory TPMS sensors be reused with this wheel?
Yes. The SM-10RS is fully compatible with OEM and aftermarket TPMS sensors and accepts standard valve stems for easy installation.
