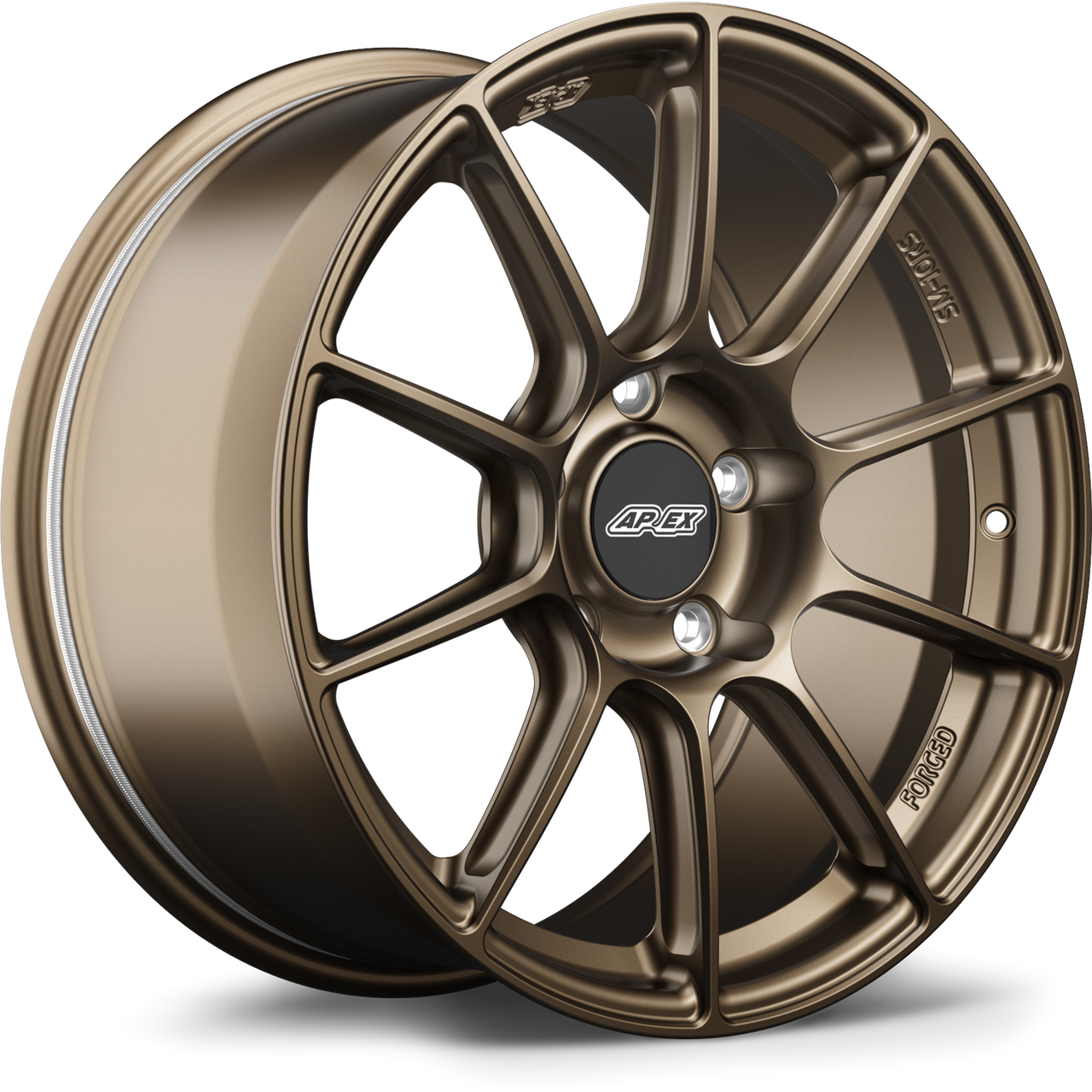

Apex SM-10RS 18x9.5 Forged Wheel - 5x112 BP / ET41 / 57.1mm CB - Satin Bronze (SM10RS1895ET41-5112-571-NSBZ)
The Apex SM-10RS was engineered for enthusiasts who demand maximum performance without compromise. As part of Apex's Sprint Line of forged wheels, the SM-10RS combines lightweight construction, exceptional stiffness, and race-proven durability into a package designed to excel on the street, at the track, and anywhere performance matters.
Manufactured from a massive 6061-T6 aluminum forging using an incredible 10,000 metric tons of pressure, the SM-10RS delivers outstanding strength through improved grain structure and reduced porosity. Apex's proprietary motorsport-specific forging blanks provide the freedom to optimize brake clearance, concavity, spoke geometry, and overall performance, creating a wheel that is exceptionally light while remaining incredibly strong.
Quick Specs
- Part Number: SM10RS1895ET41-5112-571-NSBZ
- Wheel Diameter: 18 inch
- Wheel Width: 9.5 inch
- Bolt Pattern: 5x112 BP
- Offset: ET41
- Center Bore: 57.1mm
- Finish: Satin Bronze
- Construction: Fully Forged 6061-T6 Aluminum
- Wheel Series: SM-10RS Sprint Line
- Hub Centric: Yes
- TPMS Compatible: Yes
Forged for Serious Performance
The SM-10RS starts life as a forging weighing up to 120 pounds before machining. The immense pressure used during the forging process improves material density and strength, creating the ideal foundation for a high-performance wheel. Unlike generic third-party forgings, Apex designed its own motorsport-specific blanks from the ground up, allowing complete control over critical design elements and fitment characteristics.
Extensive Finite Element Analysis was utilized throughout development to reinforce high-stress areas while removing unnecessary material. The result is a wheel that remains exceptionally lightweight without sacrificing durability or load capacity.
Advanced I-Beam Spoke Design
One of the defining features of the SM-10RS is its side-milled I-beam spoke architecture. Material is precisely removed from both sides of each spoke using CNC machining, reducing weight while maintaining structural integrity. This advanced manufacturing process allows Apex to maximize stiffness and responsiveness without adding unnecessary mass.
The result is a wheel that delivers nearly identical weight to the popular VS-5RS while offering almost 10% greater stiffness and approximately 25% greater stiffness than Apex's first-generation forged wheel designs.
Engineered Beyond Industry Standards
Apex developed the SM-10RS to withstand the demands of aggressive driving and motorsport use. A reinforced Sprint Spec inner lip increases impact resistance, while paintless knurled bead seats help prevent tire slippage during hard acceleration and braking. Massive brake clearance, application-specific spoke profiles, and compatibility with oversized race hardware further enhance the wheel's track-ready capabilities.
To validate performance, Apex partners with STL, an independent testing laboratory in Ohio, where Sprint Line wheels are tested beyond traditional JWL standards using increased loads, greater impact severity, and extended testing cycles.
Features
- 10K Ton Forged 6061-T6 Aluminum Construction
- Lightweight Sprint Line forged wheel design
- Proprietary motorsport-specific forging blanks
- Advanced side-milled I-beam spokes
- FEA-optimized design for strength and weight reduction
- Stronger Sprint Spec inner lip construction
- Higher load rating than typical lightweight wheel designs
- Nearly 10% stiffer than comparable Apex forged wheel designs
- Approximately 25% stiffer than first-generation Apex forged wheels
- Independent testing beyond JWL standards
- Massive brake clearance
- Application-specific spoke profiles
- Deep concavity capability
- Paintless knurled bead seats for enhanced tire retention
- Compatible with oversized race lugs and impact sockets
- Laser-engraved wheel specifications
- Hub-centric fitment design
- Accepts OEM and aftermarket TPMS sensors
- Compatible with standard valve stems
- Satin Bronze finish
Fitment
- Applications Utilizing 5x112 Bolt Pattern and 57.1mm Center Bore
- Commonly Compatible with Select Audi Small Bore and Volkswagen Applications
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
Why is the SM-10RS considered a Sprint Line wheel?
The Sprint Line focuses on maximizing weight savings while maintaining exceptional strength and stiffness. The SM-10RS utilizes advanced forging technology, proprietary blanks, and extensive FEA optimization to achieve that balance.
Can I use OEM TPMS sensors with this wheel?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors and is compatible with standard valve stems for easy installation.
