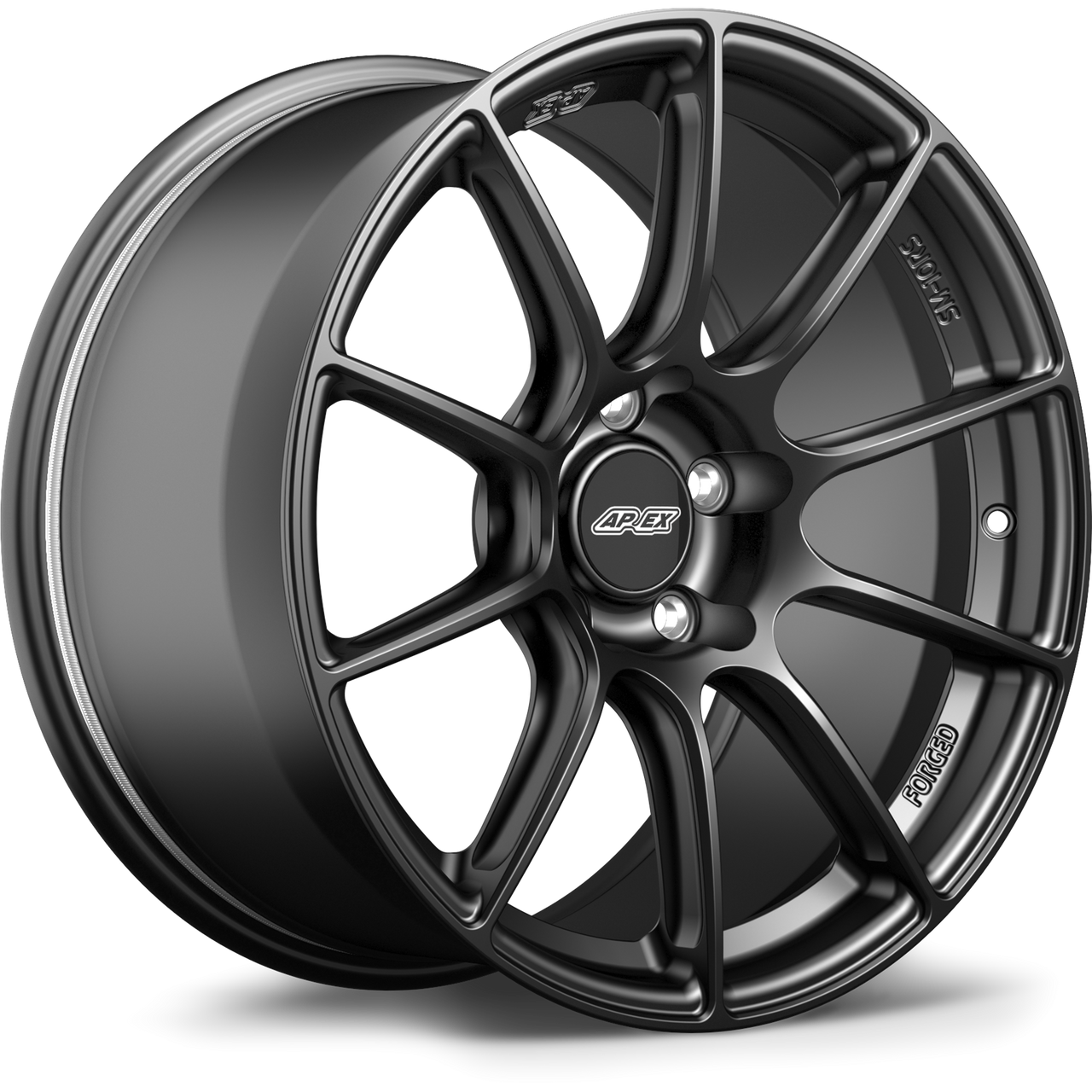

Apex SM-10RS 18x9.5 Forged Wheel - 5x100 BP / ET40 / 56.1mm CB - Satin Black (Toyota 86 / Subaru BRZ) - SM10RS1895ET40-5100-561-NSBK
The Apex SM-10RS is engineered for drivers who want lightweight forged performance without sacrificing durability or stiffness. As part of Apexs Sprint Line forged wheel collection, this 18x9.5 wheel delivers race-ready strength, aggressive styling, and precision handling characteristics tailored for enthusiast-focused Toyota 86 and Subaru BRZ applications. Finished in a clean Satin Black coating, the SM-10RS brings a purposeful motorsport appearance to any street or track build.
Built from forged 6061-T6 aluminum using an immense 10,000 metric tons of pressure, the SM-10RS achieves exceptional structural integrity while keeping rotational mass low. Apex developed proprietary motorsport-specific forging blanks to maximize brake clearance, optimize spoke geometry, and improve concavity. Combined with advanced I-beam spoke machining, a reinforced Sprint spec inner lip, and extensive FEA optimization, this wheel is designed to perform under intense driving conditions while maintaining outstanding responsiveness and durability.
Quick Specs
- Part Number: SM10RS1895ET40-5100-561-NSBK
- Wheel Size: 18x9.5
- Bolt Pattern: 5x100 BP
- Offset: ET40
- Center Bore: 56.1mm
- Finish: Satin Black
- Construction: 10K Ton Forged 6061-T6 Aluminum
- Wheel Series: Apex Sprint Line Forged
- I-Beam Side-Milled Spokes
- Reinforced Sprint Spec Inner Lip
- High Brake Clearance Design
- Paintless Knurled Beads
- Laser-Engraved Barrel Specifications
- Hub Centric Design
- TPMS Compatible
- Designed for Street and Track Performance
Features
- Forged 6061-T6 aluminum construction offers exceptional strength with reduced weight
- Produced using 10,000 metric tons of pressure for improved grain structure and durability
- Custom motorsport forging blanks maximize brake clearance and wheel optimization
- I-beam side milling removes excess material while preserving structural rigidity
- FEA-optimized spoke geometry improves stiffness and steering response
- Approximately 10% stiffer than the VS-5RS while maintaining similar weight
- Reinforced Sprint spec inner lip improves impact resistance during aggressive driving
- Independently tested beyond JWL standards for proven durability and confidence
- Deep concave spoke profile delivers aggressive motorsport-inspired styling
- Paintless knurled bead seats help reduce tire slippage under hard acceleration and braking
- Oversized lug openings support race lugs and impact socket compatibility
- Laser-engraved barrel specs improve visibility and long-term readability
- Hub centric fitment minimizes the need for centering rings
- Compatible with OEM and aftermarket TPMS sensors and standard valve stems
Fitment
- Applications Utilizing 5x100 Bolt Pattern and 56.1mm Center Bore
- Commonly Used on Toyota 86 and Subaru BRZ Performance Applications
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS ideal for performance driving?
The SM-10RS combines lightweight forged construction, reinforced high-stress areas, optimized spoke stiffness, and extensive independent testing to provide exceptional durability and handling performance on both street and track.
Will this wheel work with factory TPMS sensors?
Yes. The SM-10RS is designed to accept OEM and aftermarket TPMS sensors along with standard valve stems.
