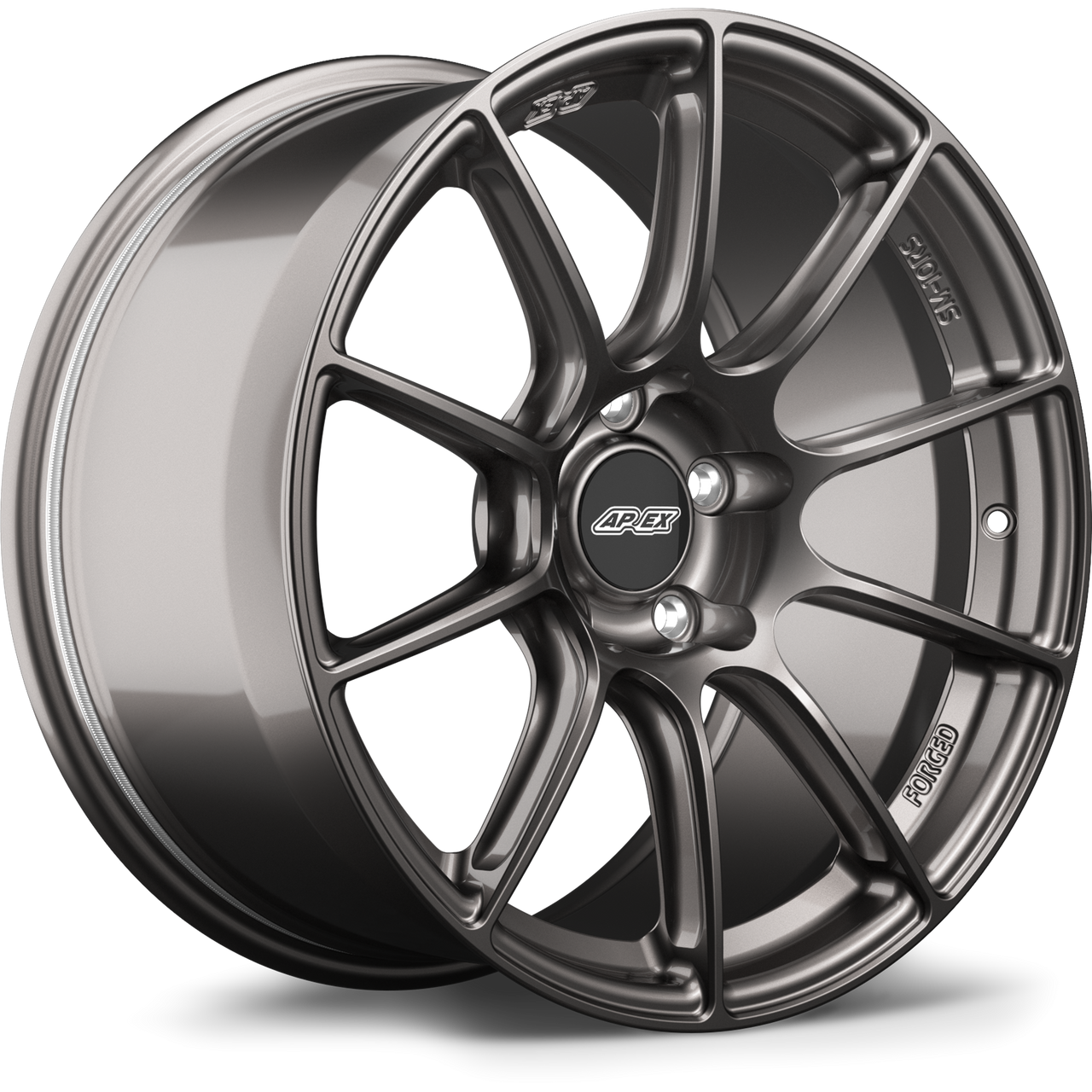

Apex SM-10RS 18x9.5 Forged Wheel - 5x100 BP / ET40 / 56.1mm CB - Anthracite (Toyota 86 / Subaru BRZ) - SM10RS1895ET40-5100-561-AN
The Apex SM-10RS was built for drivers who demand true forged performance without compromise. Designed as part of Apexs Sprint Line wheel collection, this 18x9.5 configuration combines ultra-lightweight construction, impressive rigidity, and race-proven durability in a package engineered specifically for enthusiast-driven Toyota 86 and Subaru BRZ applications. Finished in a motorsport-inspired Anthracite coating, the SM-10RS delivers aggressive styling with serious performance credentials for both street and track use.
Manufactured from forged 6061-T6 aluminum using an immense 10,000 metric tons of pressure, the SM-10RS achieves exceptional strength while minimizing unnecessary weight. Apex engineered proprietary motorsport-specific forging blanks to maximize brake clearance, improve spoke geometry, and optimize concavity. Combined with advanced I-beam side milling, reinforced Sprint spec inner lips, and extensive Finite Element Analysis testing, the result is a forged wheel designed to handle demanding driving conditions lap after lap.
Quick Specs
- Part Number: SM10RS1895ET40-5100-561-AN
- Wheel Size: 18x9.5
- Bolt Pattern: 5x100 BP
- Offset: ET40
- Center Bore: 56.1mm
- Finish: Anthracite
- Construction: 10K Ton Forged 6061-T6 Aluminum
- Wheel Series: Apex Sprint Line Forged
- I-Beam Side-Milled Spokes
- Sprint Spec Reinforced Inner Lip
- Massive Brake Clearance Design
- Paintless Knurled Beads
- Laser-Engraved Barrel Specifications
- Hub Centric Design
- TPMS Compatible
- Designed for Street and Track Use
Features
- Forged 6061-T6 aluminum construction provides exceptional strength with reduced weight
- Produced under 10,000 metric tons of pressure for improved grain structure and durability
- Custom motorsport forging blanks maximize brake clearance and wheel optimization
- I-beam spoke machining removes excess material while maintaining structural integrity
- FEA-optimized spoke geometry improves stiffness and steering response
- Approximately 10% stiffer than the VS-5RS while maintaining comparable weight
- Reinforced Sprint spec inner lip improves impact resistance under aggressive driving
- Independently tested above JWL standards for added confidence and durability
- Deep concave profile delivers aggressive motorsport-inspired styling
- Paintless knurled bead seats help minimize tire slippage during hard driving
- Oversized lug openings support race lugs and impact socket compatibility
- Laser-engraved specs improve long-term readability and identification
- Hub centric fitment minimizes the need for centering rings
- Compatible with OEM and aftermarket TPMS sensors and standard valve stems
Fitment
- Applications Utilizing 5x100 Bolt Pattern and 56.1mm Center Bore
- Commonly Used on Toyota 86 and Subaru BRZ Performance Applications
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the SM-10RS ideal for track use?
The SM-10RS combines forged lightweight construction with reinforced high-stress areas, improved stiffness, and extensive independent testing, making it well suited for aggressive track driving and high-performance street use.
Does this wheel support factory TPMS sensors?
Yes. The SM-10RS accepts OEM and aftermarket TPMS sensors along with standard valve stems.
