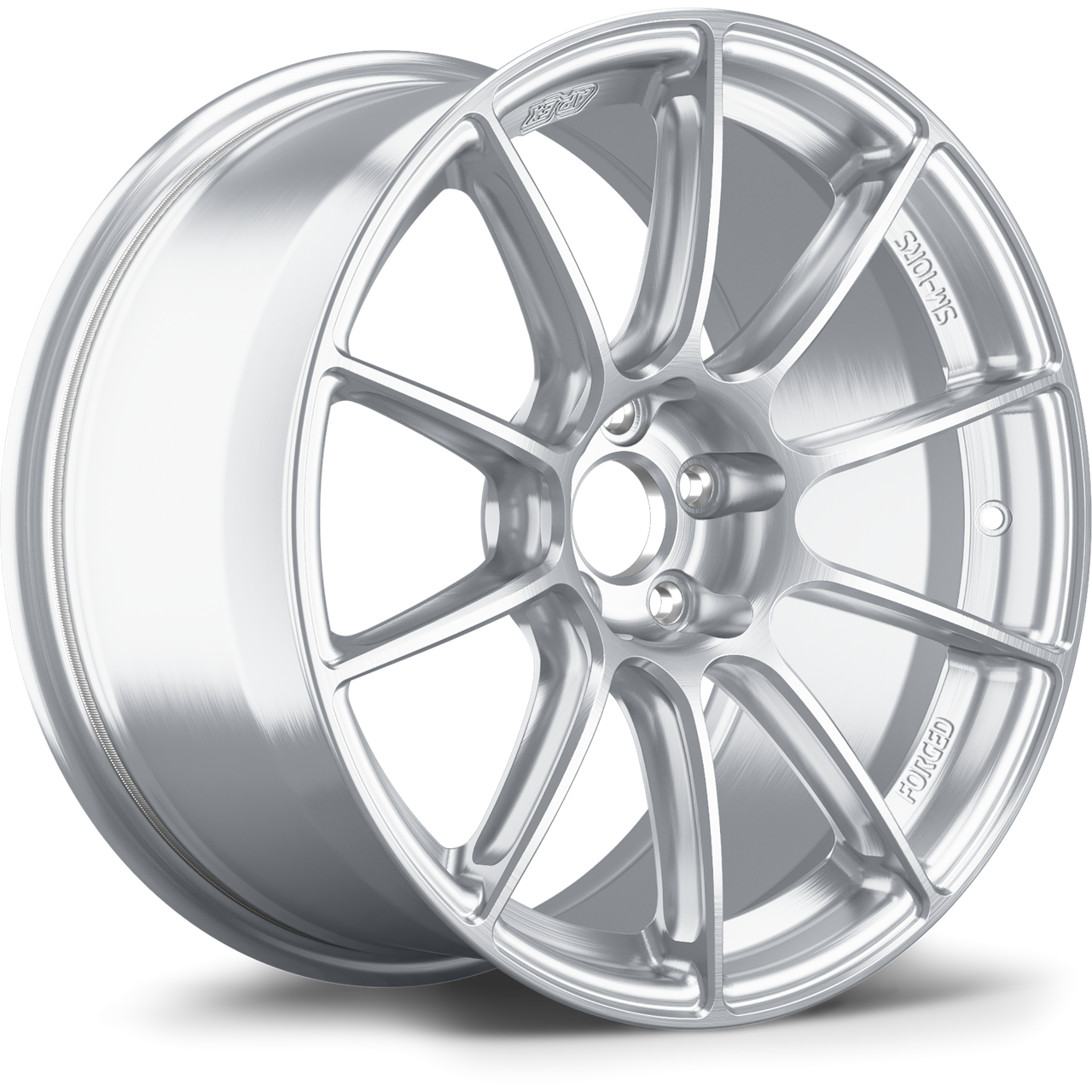

Apex SM-10RS 17x9 Forged Wheel - 5x100 BP / ET48 / 56.1mm CB - Brushed Clear (Toyota 86 / Subaru BRZ) - SM10RS179ET48-5100-561-BC
The Apex SM-10RS was designed for enthusiasts who demand true motorsport performance without compromising strength or reliability. As part of Apexs Sprint Line forged wheel lineup, the SM-10RS combines advanced forging technology, aggressive weight optimization, and reinforced structural engineering to deliver exceptional performance for both street and track applications. Finished in a premium Brushed Clear finish, this 17x9 configuration offers aggressive styling, outstanding brake clearance, and increased stiffness for drivers who push their cars hard.
Manufactured using custom motorsport-specific forgings formed under an immense 10,000 metric tons of pressure, the SM-10RS achieves remarkable strength while remaining exceptionally lightweight. Apex engineers utilized extensive Finite Element Analysis testing to strategically remove unnecessary material while reinforcing critical stress points throughout the wheel. The result is a forged wheel with improved rigidity, a reinforced Sprint spec inner lip, and the durability needed to withstand aggressive launches, heavy braking, and repeated track abuse.
Quick Specs
- Part Number: SM10RS179ET48-5100-561-BC
- Wheel Size: 17x9
- Bolt Pattern: 5x100 BP
- Offset: ET48
- Center Bore: 56.1mm
- Finish: Brushed Clear
- Construction: 10K Ton Forged 6061-T6 Aluminum
- Wheel Line: Apex Sprint Line Forged
- I-Beam Side-Milled Spokes
- Sprint Spec Reinforced Inner Lip
- Paintless Knurled Bead Seat
- Massive Brake Clearance Design
- Hub Centric Construction
- TPMS Compatible
- Laser-Engraved Barrel Specifications
- Designed to Accept OEM and Aftermarket TPMS Sensors
Features
- Fully forged 6061-T6 aluminum construction manufactured under 10,000 metric tons of pressure
- Custom motorsport-specific forging blanks optimized for brake clearance and spoke geometry
- Advanced I-beam spoke milling removes excess material while maintaining structural strength
- Weight optimized through extensive Finite Element Analysis testing
- Approximately 10% stiffer than the VS-5RS and roughly 25% stiffer than previous Apex forged wheel generations
- Reinforced Sprint spec inner lip improves impact resistance and long-term durability
- Independently tested beyond standard JWL testing requirements
- Massive brake clearance supports large factory and aftermarket brake systems
- Paintless knurled bead seat helps minimize tire slippage during aggressive driving
- Deep concavity provides aggressive motorsport-inspired styling
- Oversized lug pocket design accommodates race hardware and impact sockets
- Laser-engraved wheel specs improve long-term visibility and readability
- Hub centric design minimizes vibration and reduces the need for centering rings
- Compatible with OEM and aftermarket TPMS systems
- Engineered for both street performance and dedicated track use
Fitment
- Applications Utilizing 5x100 Bolt Pattern and 56.1mm Center Bore
- Commonly Used on Toyota 86, GR86, Subaru BRZ, and Scion FR-S Platforms
- Verify Brake Clearance, Suspension Clearance, and Tire Fitment Prior to Installation
FAQs
Is the SM-10RS built for track use?
Yes. The SM-10RS was engineered specifically for demanding street and track environments. Its forged construction, reinforced inner lip, increased stiffness, and independent testing make it ideal for aggressive performance driving.
Will factory TPMS sensors fit this wheel?
Yes. Apex designed the SM-10RS to accept both OEM and aftermarket TPMS sensors along with standard valve stems for easy installation.
