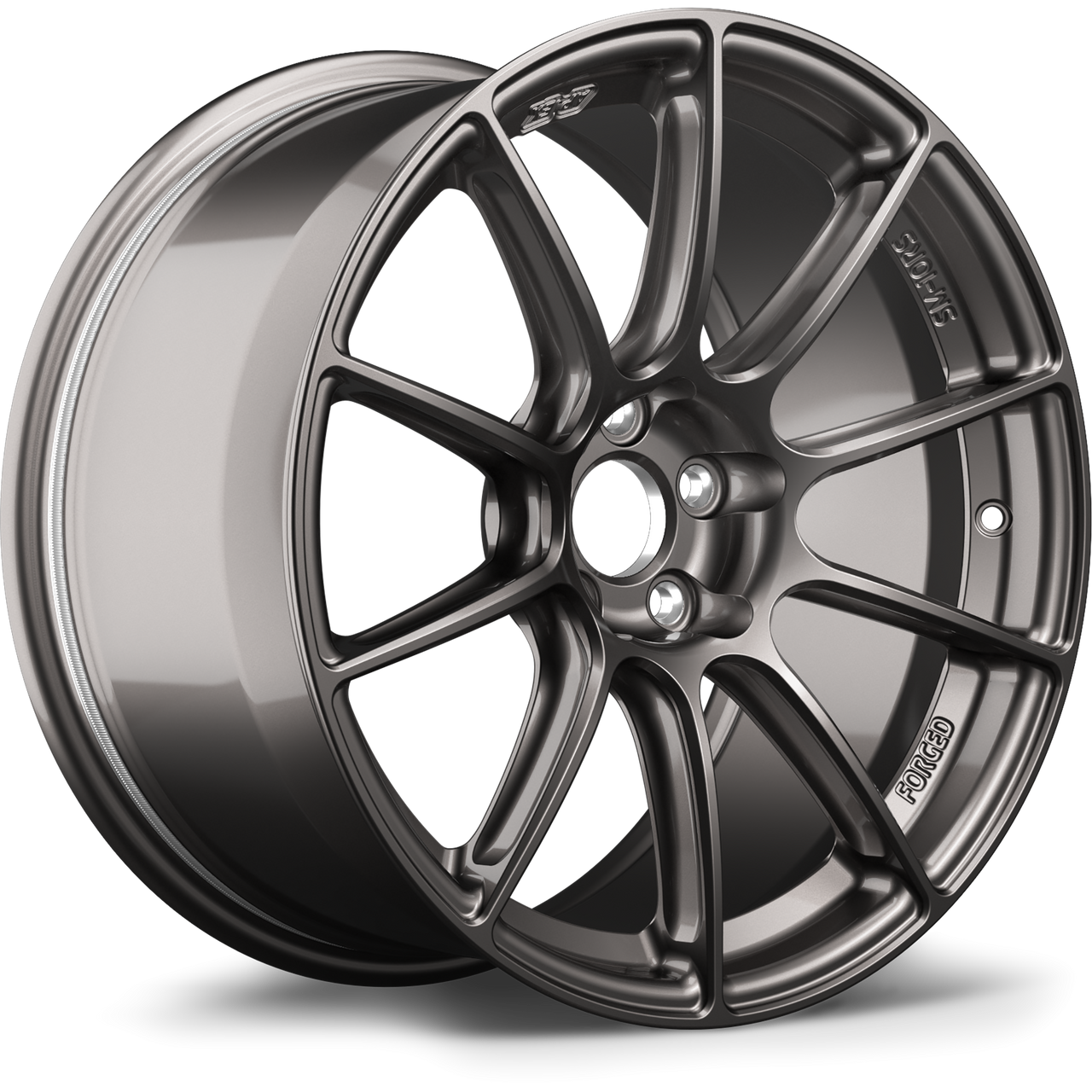

Apex SM-10RS 17x9 Forged Wheel - 5x100 BP / ET35 / 56.1mm CB - Anthracite (Toyota 86 / Subaru BRZ) - SM10RS179ET35-5100-561-AN
The Apex SM-10RS was engineered for enthusiasts who demand true motorsport performance without compromising durability. Built as part of Apexs premium Sprint Line forged wheel lineup, the SM-10RS combines advanced forging technology, aggressive weight optimization, and increased stiffness to deliver a wheel that performs as good as it looks. Finished in a sleek Anthracite finish, this 17x9 configuration is ideal for drivers looking to maximize handling response, brake clearance, and strength on both street and track applications.
Unlike many lightweight wheels that sacrifice durability in pursuit of lower weight numbers, the SM-10RS was engineered with real-world abuse in mind. Apex used extensive Finite Element Analysis testing to remove unnecessary material while strategically reinforcing critical load areas. The result is a forged wheel that remains exceptionally lightweight while offering increased stiffness, improved impact resistance, and a reinforced Sprint spec inner lip designed to withstand repeated hard driving conditions.
Quick Specs
- Part Number: SM10RS179ET35-5100-561-AN
- Wheel Size: 17x9
- Bolt Pattern: 5x100 BP
- Offset: ET35
- Center Bore: 56.1mm
- Finish: Anthracite
- Construction: 10K Ton Forged 6061-T6 Aluminum
- Wheel Line: Apex Sprint Line Forged
- I-Beam Side-Milled Spokes
- Sprint Spec Reinforced Inner Lip
- Paintless Knurled Bead Seat
- Massive Brake Clearance Design
- Hub Centric Construction
- TPMS Compatible
- Laser-Engraved Barrel Specifications
- Designed to Accept OEM and Aftermarket TPMS Sensors
Features
- Fully forged 6061-T6 aluminum construction manufactured under 10,000 metric tons of pressure
- Custom motorsport-specific forging blanks engineered for optimal brake clearance and spoke geometry
- Advanced I-beam spoke milling reduces weight while maintaining exceptional strength
- Weight optimized through extensive Finite Element Analysis testing
- Nearly 10% stiffer than the VS-5RS and approximately 25% stiffer than earlier Apex forged wheel generations
- Reinforced Sprint spec inner lip increases impact resistance and durability
- Independently tested beyond standard JWL requirements
- Massive brake clearance for factory and aftermarket big brake kits
- Paintless knurled bead seat helps reduce tire slippage under hard acceleration and braking
- Deep concavity and aggressive motorsport styling
- Oversized lug pocket design accommodates impact sockets and race hardware
- Laser-engraved wheel specs improve long-term readability and identification
- Hub centric design minimizes vibration and eliminates the need for centering rings in many applications
- Compatible with OEM and aftermarket TPMS systems
- Engineered for both street and track use
Fitment
- Applications Utilizing 5x100 Bolt Pattern and 56.1mm Center Bore
- Commonly Used on Toyota 86, GR86, Subaru BRZ, and Scion FR-S Platforms
- Verify Brake Clearance, Suspension Clearance, and Tire Fitment Prior to Installation
FAQs
Is the SM-10RS suitable for track use?
Yes. The SM-10RS was specifically engineered for high-performance street and track driving. Its forged construction, reinforced inner lip, independently tested durability, and increased stiffness make it ideal for demanding motorsport environments.
Does this wheel support factory TPMS sensors?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors along with standard valve stems for straightforward installation.
