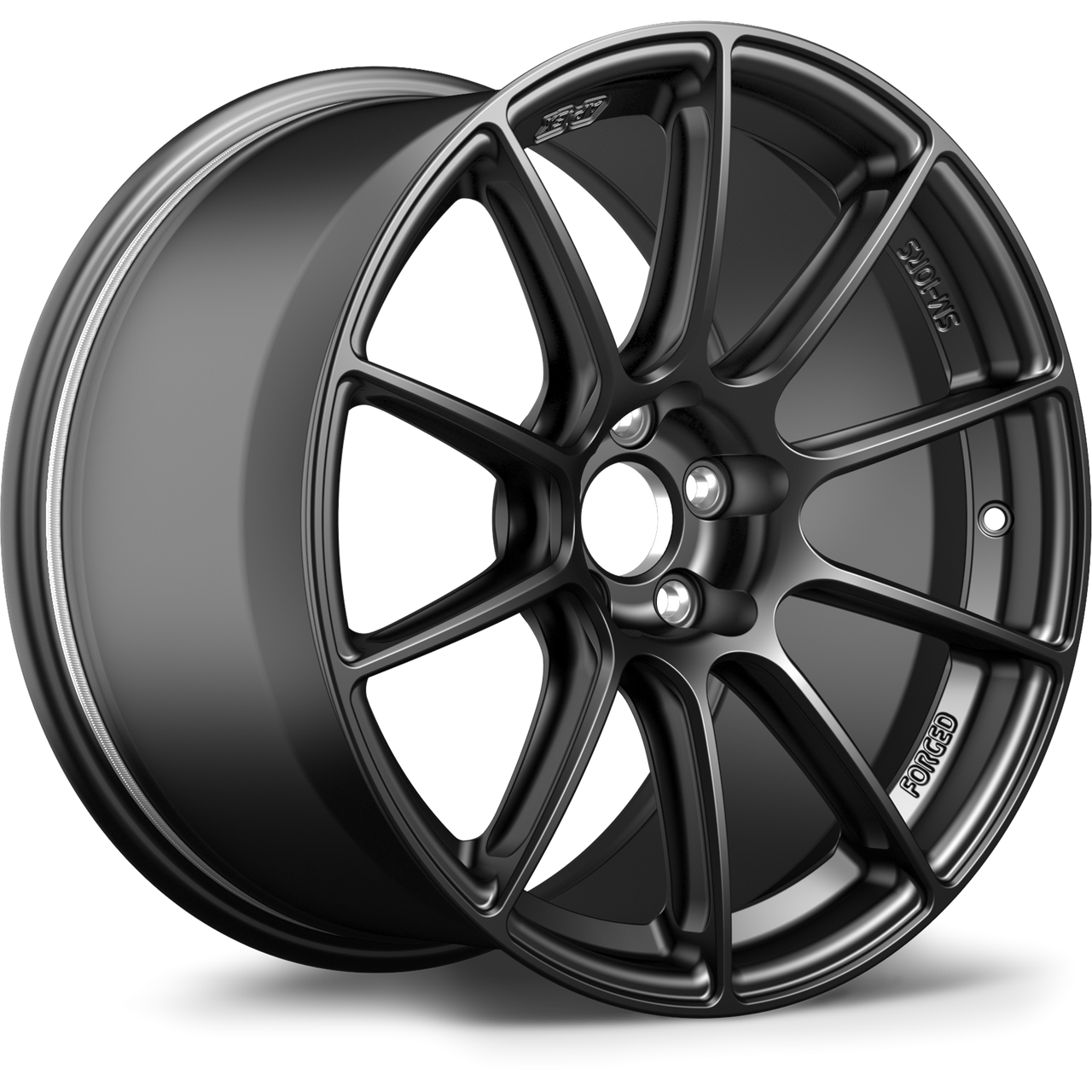

Apex SM-10RS 17x10 Forged Wheel - 5x100 BP / ET45 / 56.1mm CB - Satin Black (Toyota 86 / Subaru BRZ) - SM10RS1710ET45-5100-561-NSBK
The Apex SM-10RS was built for drivers who refuse to compromise between lightweight performance and real-world durability. As part of Apexs Sprint Line forged wheel lineup, the SM-10RS combines advanced engineering, aggressive motorsport styling, and race-proven strength into a wheel capable of handling demanding street and track environments alike. Finished in Satin Black, this 17x10 forged setup delivers a clean, purposeful look backed by serious performance capability.
Manufactured from proprietary 10K ton forged 6061-T6 aluminum blanks, the SM-10RS was engineered to maximize stiffness and strength while minimizing unnecessary rotational weight. Apex utilized extensive Finite Element Analysis to strategically reinforce high-stress areas and remove material where it does not contribute to structural integrity. The result is an exceptionally lightweight forged wheel designed to maintain durability during hard launches, aggressive cornering, and repeated track abuse.
True Motorsport-Focused Engineering
Unlike many lightweight wheels that utilize generic third-party forgings, the SM-10RS uses purpose-built motorsport-specific forged blanks developed entirely in-house by Apex. This allows for optimized spoke geometry, deeper concavity, improved brake clearance, and increased rigidity compared to traditional wheel designs.
The aggressive I-beam spoke design utilizes precision side milling on both sides of each spoke to reduce excess material while maintaining exceptional structural strength. Apex also reinforced the wheel with its Sprint spec inner lip design, increasing impact resistance in critical load zones. Paintless knurled bead seats help reduce tire slippage under hard acceleration and braking, while oversized race lug and impact socket compatibility make wheel swaps faster and easier for serious enthusiasts.
Quick Specs
- Part Number: SM10RS1710ET45-5100-561-NSBK
- Wheel Size: 17x10
- Bolt Pattern: 5x100 BP
- Offset: ET45
- Center Bore: 56.1mm
- Finish: Satin Black
- Construction: Fully Forged 6061-T6 Aluminum
- Manufacturing Process: 10K Ton Forged
- Wheel Line: Sprint Line
- Spoke Design: I-Beam Side-Milled Spokes
- Inner Lip Design: Reinforced Sprint Spec Inner Lip
- Bead Seat: Paintless Knurled Beads
- TPMS Compatible: Yes
- Hub Centric: Yes
- Brake Clearance: Massive Big Brake Clearance Design
Features
- Fully forged 6061-T6 aluminum construction
- Produced using 10,000 metric tons of forging pressure
- Lightweight Sprint Line wheel engineered for motorsport use
- Advanced I-beam spoke machining reduces weight while maintaining strength
- Nearly 10% stiffer than the VS-5RS design
- Approximately 25% stiffer than Apex first-generation forged wheels
- Reinforced Sprint spec inner lip for increased durability
- Engineered using extensive Finite Element Analysis optimization
- Purpose-built motorsport forged blanks developed in-house by Apex
- Massive brake clearance for factory and aftermarket big brake kits
- Deep concave spoke profile optimized for vehicle-specific applications
- Paintless knurled bead seats help reduce tire slippage
- Compatible with OEM and aftermarket TPMS sensors
- Designed to accommodate oversized race lugs and impact sockets
- Laser-engraved barrel specifications for easy identification
- Independently tested above JWL standards by STL testing laboratory
- Hub-centric fitment for select applications
Fitment
- Applications Utilizing 5x100 Bolt Pattern and 56.1mm Center Bore
- Commonly Used for Toyota 86, GR86, Subaru BRZ, and Scion FR-S Applications
- Verify Brake Clearance, Suspension Clearance, and Tire Fitment Prior to Installation
FAQs
Will this wheel clear aftermarket big brake kits?
The SM-10RS was engineered with massive brake clearance to support many factory and aftermarket big brake kits. Clearance should always be verified for your exact brake setup before installation.
Can OEM TPMS sensors be reused with these wheels?
Yes. The SM-10RS accepts both OEM and aftermarket TPMS sensors along with standard valve stems.
