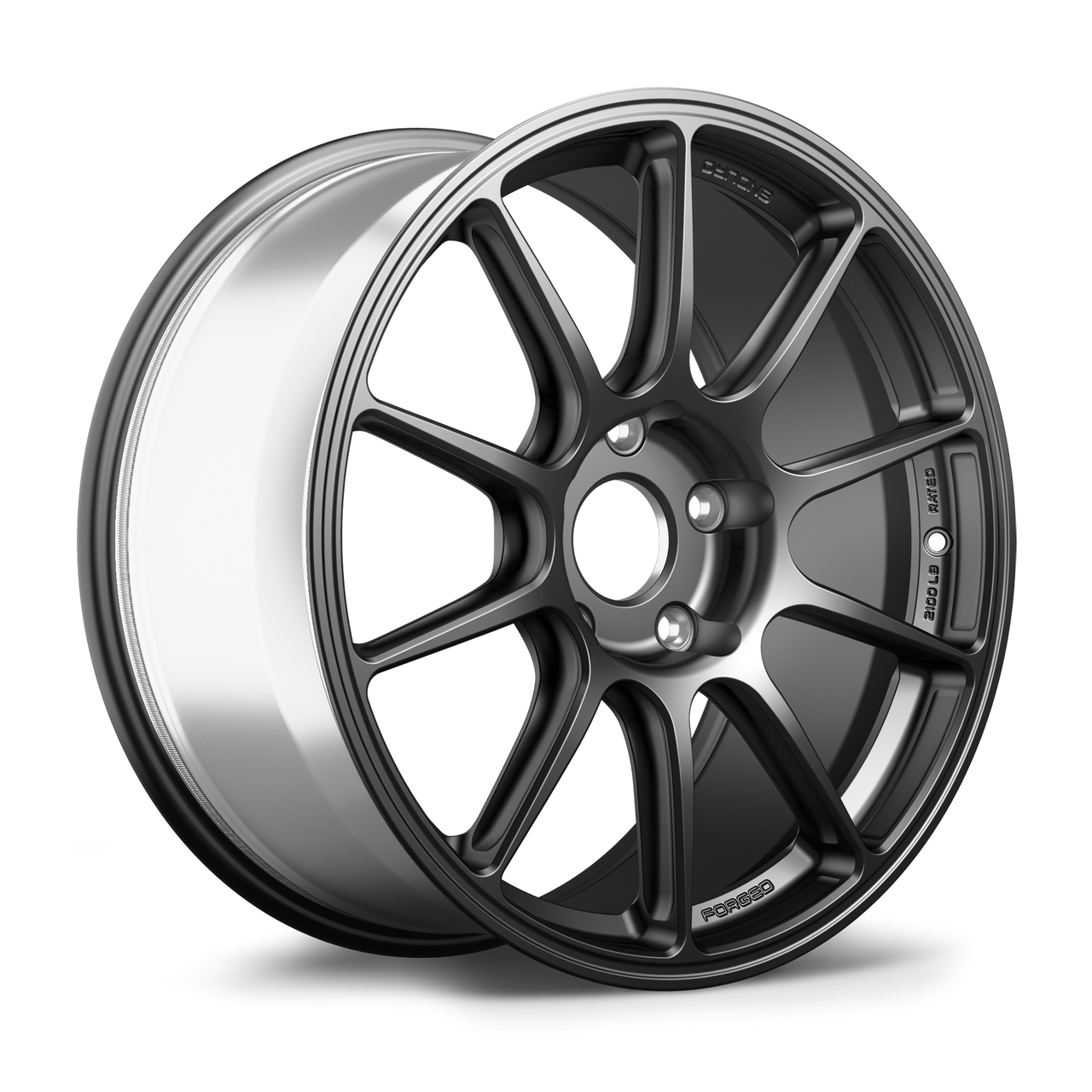

Apex SM-10RE 19x9 Forged Wheel - 5x130 BP / ET48 / 71.6mm CB - Satin Black (Porsche) SM10RE199ET48-5130-716-NSBK
The Apex SM-10RE is the endurance-focused forged evolution of the iconic SM-10 design, engineered specifically for drivers who demand uncompromising strength, stiffness, and durability in extreme motorsport environments. Built for endurance racing and high-load track use, the SM-10RE features Apexs strongest lip design and highest load rating to withstand repeated abuse lap after lap.
Designed for Porsche applications utilizing a 5x130 bolt pattern and 71.6mm center bore, this forged wheel combines advanced engineering, reinforced construction, and race-proven details to deliver exceptional brake clearance, steering precision, and long-term durability for aggressive street and track use.
Engineered for Maximum Strength
While many motorsport wheels prioritize reducing weight above all else, the SM-10RE was designed around increased rigidity and durability for demanding applications. Compared to the SM-10RS, the Enduro version is approximately 30 percent stronger, making it ideal for vehicles running sticky tires, heavy aerodynamic downforce, and aggressive track setups.
The Enduro Spec inner lip introduces Apexs strongest inner barrel reinforcement ever, featuring approximately 50 percent more reinforcement to better survive curbing, potholes, rough track surfaces, and off-track excursions.
A reinforced front lip further improves impact resistance while maintaining the aggressive motorsport styling expected from the SM-10RE lineup.
10,000 Ton Forged Construction
Each SM-10RE wheel is fully forged from premium 6061-T6 aluminum using an immense 10,000 ton forging process. This extreme pressure improves grain structure and density while minimizing porosity for exceptional strength and durability.
Unlike companies relying on generic third-party forgings, Apex engineered proprietary motorsport-specific forging blanks to maximize brake clearance, spoke geometry, structural efficiency, and application-specific concavity.
Advanced Finite Element Analysis (FEA) was used to reinforce high-stress zones while removing unnecessary material in low-load areas, optimizing both strength and weight.
Stiffer Side-Milled Spokes
The SM-10RE features redesigned side-milled spokes that are approximately 20 to 25 percent stiffer than Apex Sprint Line wheels. Increased spoke rigidity helps minimize camber loss under hard cornering loads, improving steering response, tire stability, responsiveness, and outer shoulder tire wear.
Precision CNC side-milling removes excess material while maintaining structural integrity, helping the wheel achieve an excellent strength-to-weight ratio despite its endurance-focused construction.
Track-Ready Engineering Features
The SM-10RE incorporates a range of race-proven details designed specifically for serious track enthusiasts. Paintless knurled beads improve tire retention during repeated hard braking and acceleration, while the paintless barrel reduces rotational inertia to improve acceleration and braking response.
A capless hub design minimizes unnecessary weight, and oversized lug openings allow compatibility with impact sockets and race hardware for fast wheel changes during track events.
Laser-engraved wheel specifications remain visible and easy to identify even after repeated heat cycles and heavy track use.
Every Apex Enduro Line wheel is independently tested by ITS in Michigan under conditions exceeding standard JWL testing requirements for added confidence and durability.
Specifications
- Part Number: SM10RE199ET48-5130-716-NSBK
- Wheel Model: SM-10RE
- Wheel Size: 19x9
- Bolt Pattern: 5x130 BP
- Offset: ET48
- Center Bore: 71.6mm
- Finish: Satin Black
- Construction: Fully Forged 6061-T6 Aluminum
- Forging Process: 10,000 Ton Forged Construction
- Load Rating: 2100 pounds
- Inner Lip Design: Enduro Spec Reinforced Inner Lip
- Spoke Design: Stiffer Side-Milled Spokes
- Hub Design: Capless Hub Design
- Bead Seat: Paintless Knurled Bead
- Brake Clearance: Massive Big Brake Clearance
- Warranty: Lifetime Structural Warranty
- Finish Warranty: 1 Year Finish Warranty
- Replacement Program: Accidental Damage Replacement Program
Features
- Forged endurance wheel engineered for high-load motorsport use
- Approximately 30 percent stronger than SM-10RS wheels
- 20 to 25 percent stiffer spokes improve steering precision and stability
- Heavy-duty Enduro Spec reinforced inner lip
- Reinforced front lip improves impact durability
- Fully forged 6061-T6 aluminum construction
- Manufactured using a 10,000 ton forging process
- FEA-optimized structure balances strength and reduced weight
- Deep side-milled spokes reduce unnecessary rotational mass
- Independent ITS testing exceeds JWL testing standards
- Vehicle-specific spoke profiles maximize brake clearance
- High-clearance barrel design supports large brake kits
- Paintless knurled bead improves tire grip on the bead seat
- Paintless barrel reduces rotational inertia
- Capless hub design reduces unnecessary weight
- Oversized lug openings fit race hardware and impact sockets
- CNC-machined outer lip pocketing reduces rotational mass
- Laser-engraved wheel specs improve visibility and identification
- Lifetime structural warranty included
- Accidental damage replacement support available
Fitment
Designed for Porsche applications utilizing a 5x130 bolt pattern and 71.6mm center bore.
Ideal for high-performance Porsche street, track, and endurance racing builds requiring exceptional brake clearance and maximum wheel strength.
Always verify brake clearance, suspension clearance, and tire fitment before installation.
FAQs
What makes the SM-10RE different from the SM-10RS?
The SM-10RE is Apexs endurance-focused wheel featuring increased structural reinforcement, a stronger lip design, and stiffer spokes for extreme track use and endurance racing applications.
Will these wheels clear large aftermarket brake kits?
Yes. Apex engineered the SM-10RE with vehicle-specific spoke profiles and a high-clearance barrel design to maximize compatibility with large factory and aftermarket brake systems.
