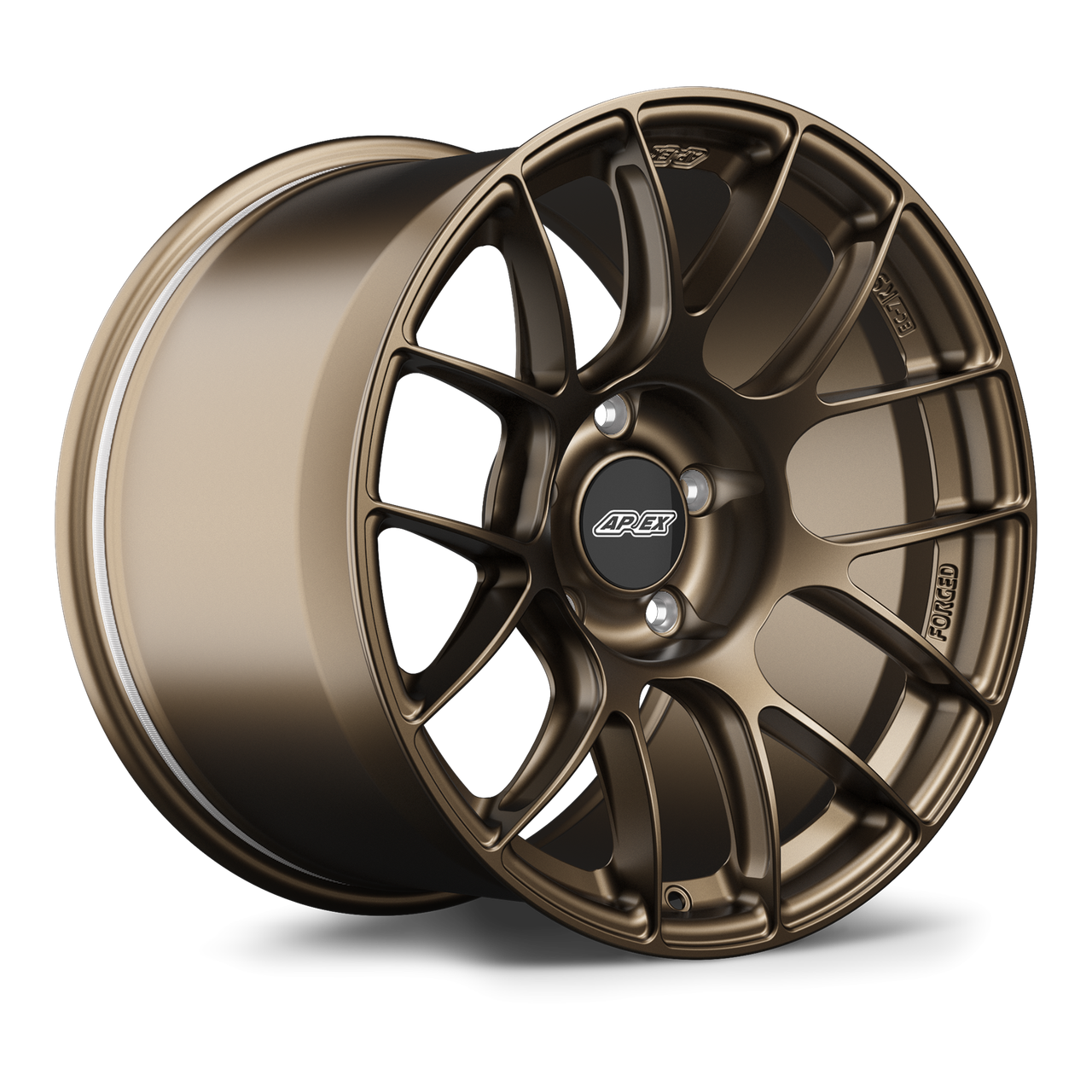

Apex EC-7RS 18x11 Forged Wheel (EC7RS1811ET40-5112-666-SBZ) - Toyota
The Apex EC-7RS is engineered for enthusiasts who demand maximum performance without compromise. As part of Apex's Sprint Line of fully forged wheels, the EC-7RS takes the proven EC-7 design and refines it into an ultralight, race-focused wheel built to improve acceleration, braking performance, handling precision, and overall vehicle dynamics. Finished in Satin Bronze, this wheel combines aggressive motorsport styling with the strength and durability required for serious track and street applications.
Constructed from proprietary forged blanks developed specifically for motorsport use, the EC-7RS incorporates advanced side-milled spokes, extensive Finite Element Analysis optimization, a reinforced Sprint Spec inner lip, and independent testing beyond industry standards. The result is an exceptionally lightweight forged wheel that delivers race-ready performance while maintaining the durability and reliability expected from a premium wheel upgrade.
Quick Specs
- Part Number: EC7RS1811ET40-5112-666-SBZ
- Wheel Model: EC-7RS
- Wheel Size: 18x11
- Bolt Pattern: 5x112
- Offset: ET40
- Center Bore: 66.6mm
- Finish: Satin Bronze
- Construction: Fully Forged 6061-T6 Aluminum
- Product Line: Sprint Line
- Hub Centric Design
- Vehicle Application: Toyota
Features
- 10K Ton forged 6061-T6 aluminum construction
- Sprint Line ultralight forged wheel design
- Side-milled spokes for reduced rotational mass
- Reinforced Sprint Spec inner lip for increased durability
- Proprietary motorsport forging blanks
- Extensive FEA optimization for strength and weight reduction
- Independent testing beyond JWL standards
- Massive brake clearance for performance brake systems
- Vehicle-specific spoke profiles
- Deep concave spoke profile design
- Paintless knurled bead seats for improved tire retention
- Built to accommodate oversized race lugs and impact sockets
- Laser-engraved wheel specifications
- Hub-centric fitment design
- Compatible with OEM and aftermarket TPMS sensors
- Works with OEM mounting hardware and most wheel spacers
- Gloss black center cap included
- Compatible with OEM center caps on applicable vehicles
Forged Under 10,000 Tons of Pressure
Each EC-7RS begins as a forged aluminum blank weighing up to 120 pounds before machining. Formed using an incredible 10,000 metric tons of pressure, the forging process improves grain structure, increases material density, and minimizes porosity. This creates an exceptionally strong foundation capable of handling the demands of aggressive driving and competitive motorsport use.
Purpose-Built Motorsport Engineering
Unlike many forged wheels that rely on generic third-party blanks, Apex developed proprietary forging profiles specifically for motorsport applications. This allows complete control over wheel geometry, brake clearance, spoke architecture, concavity, and overall structural performance, resulting in a wheel optimized for maximum strength and performance.
Advanced Side-Milled Spoke Technology
One of the defining features of the EC-7RS is its aggressively side-milled spoke design. Precision CNC machining removes excess material that does not contribute to structural strength, reducing rotational weight while maintaining durability where it matters most. The result is improved responsiveness and sharper vehicle dynamics.
Lightweight Without Compromise
Many lightweight wheels sacrifice durability in pursuit of lower weight. Apex followed a different philosophy by strategically removing unnecessary material and then reinforcing critical stress areas. This process created a stronger Sprint Spec inner lip and improved load capacity while maintaining exceptionally low overall wheel weight.
Independently Tested Beyond Industry Standards
To validate performance and durability, Apex utilizes independent testing through STL in Ohio. Sprint Line wheels undergo testing beyond traditional JWL requirements with increased impact severity, longer testing durations, and higher load thresholds to ensure confidence under demanding real-world conditions.
Massive Brake Clearance
Developed using more than a decade of brake fitment experience and advanced 3D scanning technology, the EC-7RS incorporates a high-clearance barrel profile and application-specific spoke geometry. This design allows clearance for many large factory and aftermarket brake systems while maintaining optimal wheel strength and weight.
Track-Ready Features Throughout
From paintless knurled bead seats that maximize tire grip to laser-engraved specifications that remain easy to read over time, every detail of the EC-7RS was designed with enthusiasts and racers in mind. Oversized socket clearance also simplifies wheel changes during track events and race weekends.
Fitment
- Toyota Applications Utilizing 5x112 Bolt Pattern and 66.6mm Center Bore
- Verify Brake Clearance, Suspension Clearance, and Tire Fitment Prior to Installation
FAQs
What makes the EC-7RS different from the standard EC-7?
The EC-7RS is a fully forged Sprint Line wheel featuring side-milled spokes, proprietary forged blanks, a reinforced Sprint Spec inner lip, advanced weight optimization, and enhanced durability compared to the flow-formed EC-7.
Can I use factory TPMS sensors and OEM wheel hardware?
Yes. The EC-7RS is compatible with OEM and aftermarket TPMS sensors, factory mounting hardware, wheel locks, stud conversion kits, and most wheel spacer configurations.
