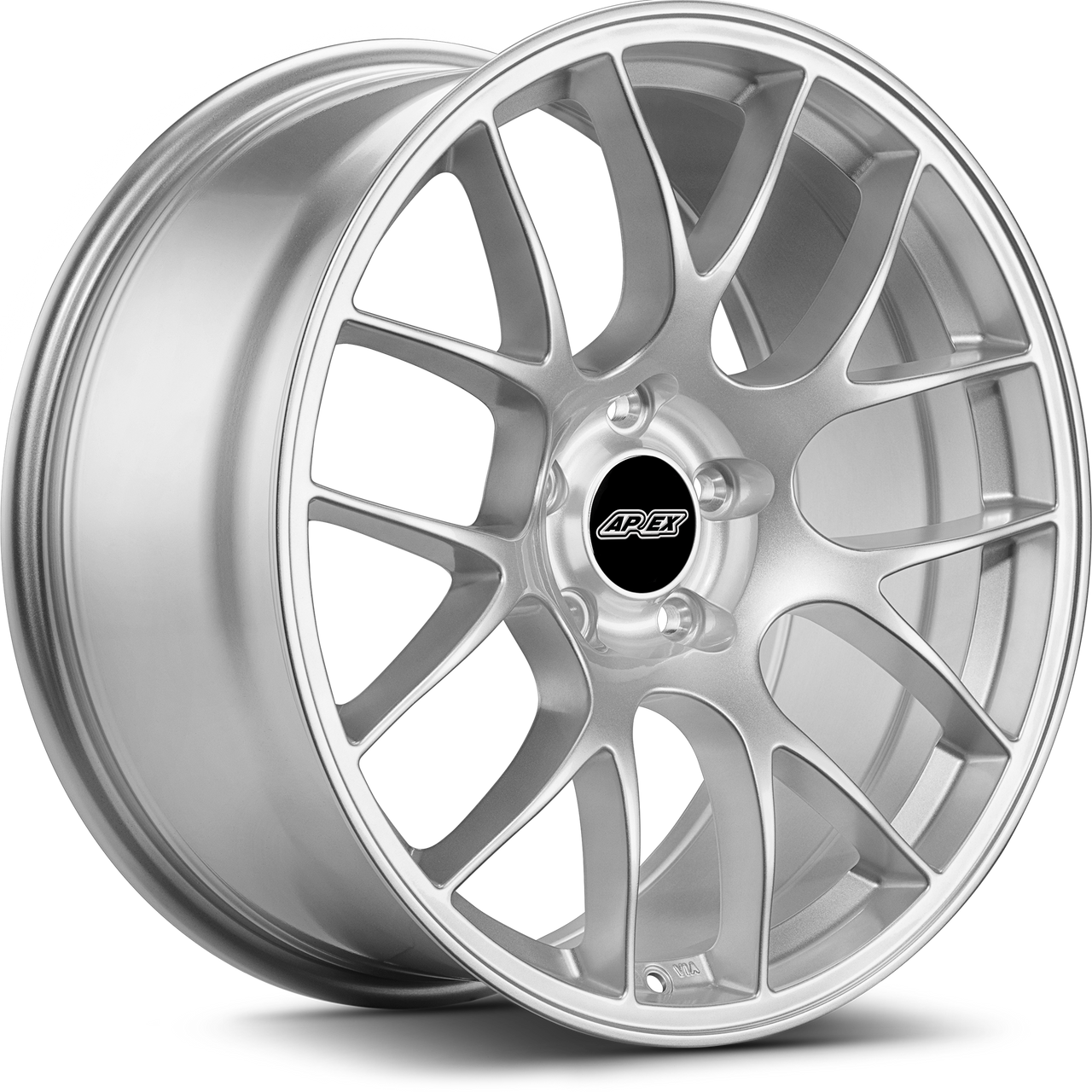

Apex EC-7 19x10 Flow-Formed Wheel 5x114.3 BP / ET40 / 70.5mm CB - Race Silver (Ford Mustang) (EC71910ET40-51143-705-RS)
The Apex EC-7 delivers the ideal combination of lightweight performance, exceptional strength, and aggressive motorsport styling for Ford Mustang enthusiasts. Utilizing Apex's advanced flow-forming technology, this 19x10 wheel is engineered to reduce unsprung weight while maintaining the durability required for spirited street driving, track days, autocross competition, and high-performance applications.
Finished in Apex's striking Race Silver finish, the EC-7 combines timeless motorsport aesthetics with modern engineering. Designed specifically for Ford Mustang applications utilizing a 5x114.3 bolt pattern and 70.5mm center bore, this wheel offers impressive brake clearance, optimized fitment, and support for wider performance tire packages to maximize grip and handling performance.
Specifications
- Part Number: EC71910ET40-51143-705-RS
- Wheel Model: EC-7
- Construction: Flow-Formed
- Diameter: 19 inches
- Width: 10 inches
- Bolt Pattern: 5x114.3
- Offset: ET40
- Center Bore: 70.5mm
- Finish: Race Silver
- Vehicle Application: Ford Mustang
- Hub Centric Design
- One-Piece Wheel Construction
- TPMS Compatible
- OEM Center Cap Compatible
- Compatible with OEM and Aftermarket Wheel Hardware
- JWL Tested
- VIA Certified
Features
- Flow-formed construction increases strength while reducing overall wheel weight.
- Enhanced barrel grain structure improves stiffness and durability.
- Engineered with substantial brake clearance for many OEM and aftermarket brake systems.
- Multiple concave profiles maximize aesthetics and performance potential.
- Finite Element Analysis optimized design reinforces critical stress areas.
- Lightweight construction improves acceleration, braking, and steering response.
- Oversized lug pockets accommodate race lugs and impact sockets.
- Multi-stage liquid paint finish applied over a durable powder coated base coat.
- Mounting surfaces remain free of excess coating for proper fitment and torque retention.
- Meets or exceeds JWL load-rating requirements.
- Independently tested and certified through VIA standards.
- Hub-centric fitment minimizes the need for centering rings.
- Compatible with OEM and aftermarket TPMS sensors.
- Works with factory wheel hardware, wheel locks, stud conversion kits, and most wheel spacers.
- Includes Apex gloss black center cap and accepts compatible OEM center caps.
Advanced Flow-Formed Engineering
Flow forming allows Apex to create a wheel that offers many of the performance advantages associated with more expensive manufacturing methods while maintaining excellent value. The process improves the barrel's mechanical properties and grain structure, resulting in increased strength and stiffness while reducing unnecessary weight.
Extensive Finite Element Analysis was used throughout development to reinforce high-load areas and remove excess material where it did not contribute to overall strength. The result is a wheel engineered to withstand demanding performance driving without sacrificing responsiveness.
Built for Modern Mustang Performance
The EC-7 was developed using extensive laser scanning and repeated fitment testing to provide exceptional brake clearance and optimized Mustang fitment. Whether you're running a factory performance brake package or a larger aftermarket setup, the EC-7 is engineered to provide the clearance serious enthusiasts demand.
Fitment
- Ford Mustang Applications Utilizing 5x114.3 Bolt Pattern and 70.5mm Center Bore
- Hub Centric Mustang Fitment Design
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, Tire Fitment, and Wheel Spacer Requirements Prior to Installation
FAQs
What makes the EC-7 a popular choice for performance Mustangs?
The EC-7 combines lightweight flow-formed construction, exceptional brake clearance, strong load ratings, and aggressive styling, making it ideal for both street and track-focused Mustang builds.
Can factory TPMS sensors and wheel hardware be reused?
Yes. The EC-7 accepts OEM and aftermarket TPMS sensors and works with factory wheel hardware, wheel locks, and most stud conversion kits.
