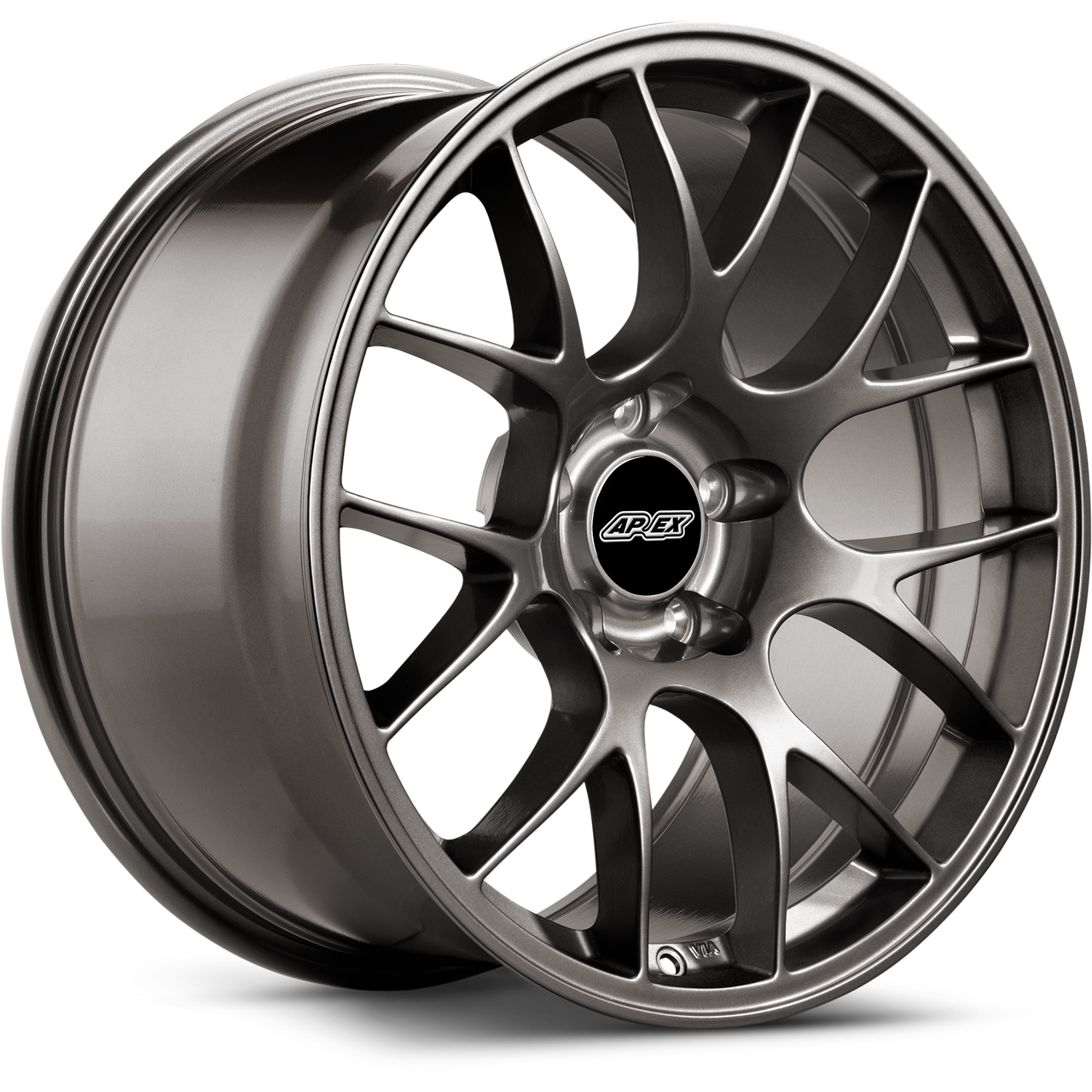

Apex EC-7 18x11 Flow-Formed Wheel (EC71811ET52-51143-705-AN) - Ford Mustang
The Apex EC-7 18x11 Flow-Formed Wheel in Anthracite delivers lightweight performance, exceptional strength, and aggressive motorsport styling for Mustang enthusiasts looking to maximize both appearance and capability. As one of Apex's most popular wheel designs, the EC-7 combines proven track-focused engineering with a timeless split-spoke design that looks equally at home on street-driven builds and dedicated track cars.
Built as part of Apex's Flow Formed Classic Line, the EC-7 utilizes advanced flow forming technology to increase barrel strength and stiffness while reducing unnecessary weight. Extensive engineering, brake clearance development, and weight optimization result in a wheel that delivers outstanding performance without the premium price associated with fully forged alternatives.
Quick Specs
- Part Number: EC71811ET52-51143-705-AN
- Wheel Model: Apex EC-7
- Wheel Size: 18x11
- Offset: ET52
- Bolt Pattern: 5x114.3
- Center Bore: 70.5mm
- Finish: Anthracite
- Construction: Flow-Formed Aluminum
- Vehicle Compatibility: Ford Mustang Applications
- Hub Centric Design
- TPMS Compatible
- OEM Center Cap Compatible
- Compatible with OEM and Aftermarket Hardware
Flow-Formed Performance Engineering
The EC-7 utilizes Apex's advanced flow forming process to improve the grain structure and mechanical properties of the wheel barrel. This manufacturing method increases strength and rigidity while allowing engineers to reduce excess material, resulting in a wheel that offers an excellent balance of durability, responsiveness, and reduced weight.
Extensive Finite Element Analysis was performed throughout development to reinforce high-stress areas while removing material where it provided no structural benefit. The result is a lightweight wheel engineered to withstand demanding driving conditions without sacrificing reliability.
Massive Brake Clearance
Large brake packages often force enthusiasts into larger and heavier wheel combinations, but the EC-7 was specifically engineered to maximize brake clearance while maintaining lightweight 18 inch sizing. Through comprehensive laser scanning and extensive test fitting, Apex developed the EC-7 to clear many high-performance brake systems that typically require larger wheels from competing designs.
Aggressive Concavity and Timeless Styling
The EC-7 utilizes multiple concave face profiles to maximize brake clearance and visual depth across different applications. The deep concave profile creates an aggressive motorsport-inspired appearance while helping reduce overall wheel weight. Finished in Anthracite, the EC-7 delivers a clean and purposeful performance look that complements virtually any Mustang build.
Built for Track Duty
Unlike many lightweight wheel designs that require specialized tuner hardware, the EC-7 is engineered to accommodate oversized race lugs and impact sockets. This makes wheel changes faster and easier during track events, autocross competition, and routine maintenance.
The wheel receives a multi-stage liquid paint finish over a powder coated base coat for long-lasting durability. Apex also leaves the mounting pad, center bore, and lug holes free from excess coating material to ensure proper fitment and accurate torque values.
Certified Strength and Compatibility
All Apex Flow Formed wheels meet or exceed JWL load rating requirements and are independently certified through VIA testing standards. Apex provides legitimate VIA registration numbers to verify compliance and structural integrity.
The EC-7 is compatible with OEM and aftermarket TPMS sensors, factory hardware, wheel locks, stud conversion kits, and many wheel spacer configurations for installation flexibility.
Features
- Flow-formed construction for lightweight strength and rigidity
- 18x11 sizing for aggressive performance-oriented Mustang applications
- 5x114.3 bolt pattern with 70.5mm hub-centric center bore
- ET52 offset
- Anthracite finish with motorsport-inspired styling
- Engineered for substantial brake clearance
- Multiple concave face profiles for optimized fitment and appearance
- Weight optimized using Finite Element Analysis
- Oversized lug and impact socket compatibility
- Compatible with OEM mounting hardware and TPMS sensors
- JWL compliant and VIA certified construction
- Includes interchangeable gloss black Apex center cap
- Compatible with wheel locks and stud conversion kits
Fitment
- Ford Mustang Applications Utilizing 5x114.3 Bolt Pattern and 70.5mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, Tire Size, and Final Fitment Prior to Installation
FAQs
Will this wheel work with aftermarket big brake kits?
The EC-7 was engineered to provide substantial brake clearance and can accommodate many high-performance brake systems depending on the complete vehicle setup.
Can I reuse my factory TPMS sensors and wheel hardware?
Yes. The EC-7 is designed to work with OEM TPMS sensors, factory mounting hardware, and many common aftermarket wheel accessories.
