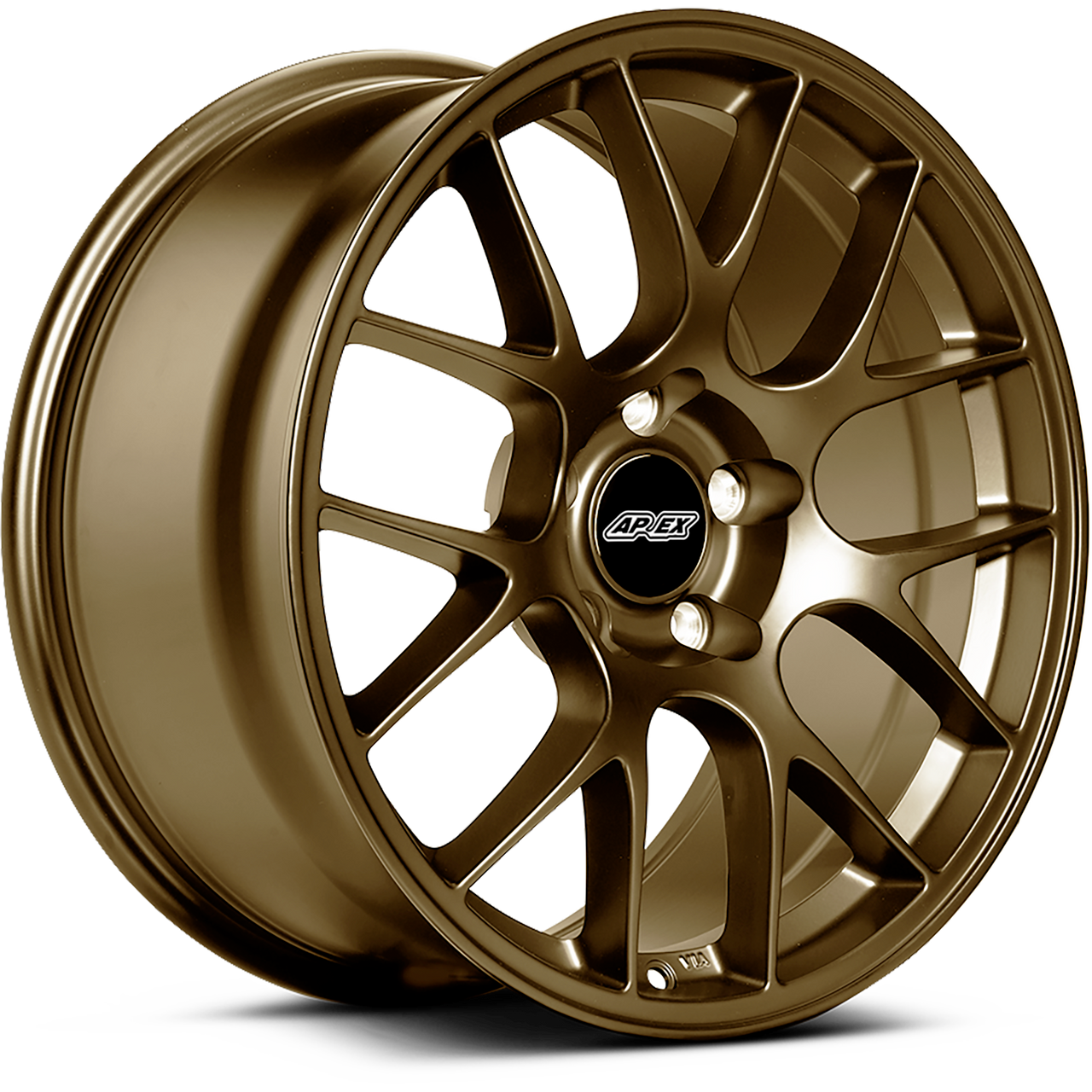

Apex EC-7 18x10 Flow-Formed Wheel (EC71810ET58-512065-703-SBZ) - Chevy Corvette
The Apex EC-7 18x10 Flow-Formed Wheel in Satin Bronze combines lightweight motorsport engineering, aggressive concavity, and serious brake clearance for Corvette enthusiasts who want track-ready performance with standout styling. As part of Apex's highly respected Flow Formed Classic Line, the EC-7 delivers race-inspired functionality with a timeless split-spoke design engineered for demanding street and track use.
Using advanced flow forming technology, Apex improves barrel strength and stiffness while minimizing unnecessary weight. Extensive Finite Element Analysis was also utilized during development to reinforce critical stress areas and eliminate excess material wherever possible. The result is a wheel engineered for sharp handling response, durability under load, and long-term reliability without the premium cost of a fully forged wheel.
Quick Specs
- Part Number: EC71810ET58-512065-703-SBZ
- Wheel Model: Apex EC-7
- Wheel Size: 18x10
- Offset: ET58
- Bolt Pattern: 5x120.65
- Center Bore: 70.3mm
- Finish: Satin Bronze
- Construction: Flow-Formed Aluminum
- Vehicle Compatibility: Chevy Corvette Applications
- Hub Centric Design
- TPMS Compatible
- OEM Center Cap Compatible
- Compatible with OEM and Aftermarket Hardware
Flow-Formed Lightweight Engineering
The EC-7 utilizes Apex's advanced flow forming process to improve barrel strength, stiffness, and structural integrity while reducing overall wheel weight. This manufacturing method enhances the grain structure and mechanical properties of the barrel, creating a wheel capable of handling aggressive street and track driving conditions.
Extensive Finite Element Analysis was used during development to reinforce high-load areas while removing unnecessary material wherever possible. The result is a lightweight wheel optimized for high-performance use without sacrificing durability.
Massive Brake Clearance
High-performance brake systems often require oversized and heavier wheel setups, but the EC-7 was specifically engineered to maximize brake clearance while maintaining lightweight 18 inch sizing. Through extensive laser scanning and repeated fitment testing, Apex developed the EC-7 to clear many large brake packages commonly found on Corvette performance builds.
Aggressive Concavity and Motorsport Styling
The EC-7 utilizes multiple concave face profiles to maximize both brake clearance and visual depth depending on the application. The deep concave design delivers an aggressive motorsport-inspired appearance while helping reduce overall wheel weight. Finished in Satin Bronze, the EC-7 adds a bold performance-focused look to Corvette applications.
Track-Ready Functionality
Unlike many lightweight wheels that require specialized tuner hardware, the EC-7 is engineered to accommodate oversized race lugs and impact sockets. This allows for quicker and easier wheel swaps during track days, autocross events, or routine maintenance.
The wheel's multi-stage liquid paint finish is applied over a powder coated base layer for long-lasting durability. Apex also leaves mounting pads, center bores, and lug holes free from excess coating material to ensure proper fitment and accurate torque values.
Certified Strength and OEM Compatibility
All Apex Flow Formed wheels meet or exceed JWL load rating requirements and are independently certified through VIA testing. Apex also provides legitimate VIA registration numbers for additional verification and confidence.
The EC-7 is compatible with OEM and aftermarket TPMS sensors, OEM hardware, wheel locks, stud conversion kits, and many wheel spacer configurations for installation flexibility.
Features
- Flow-formed construction for lightweight strength and rigidity
- 18x10 sizing optimized for Corvette performance applications
- 5x120.65 bolt pattern with 70.3mm hub-centric center bore
- ET58 offset for performance-oriented fitment
- Satin Bronze finish with motorsport-inspired styling
- Engineered for substantial brake clearance
- Multiple concave profiles for optimized fitment and appearance
- Lightweight design developed using Finite Element Analysis
- Oversized lug and impact socket compatibility
- Compatible with OEM mounting hardware and TPMS sensors
- JWL compliant and VIA certified construction
- Includes interchangeable gloss black Apex center cap
- Compatible with wheel locks and stud conversion kits
Fitment
- Chevy Corvette Applications Utilizing 5x120.65 Bolt Pattern and 70.3mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, Tire Size, and Final Fitment Prior to Installation
FAQs
Will this EC-7 wheel clear aftermarket brake kits?
Yes. The EC-7 was engineered with substantial brake clearance and can accommodate many large brake packages depending on the complete vehicle setup.
Can factory TPMS sensors and hardware be reused?
Yes. The EC-7 is compatible with OEM and aftermarket TPMS sensors along with factory mounting hardware and many common aftermarket wheel accessories.
Why Buy from Beefcake Racing?
Beefcake Racing is trusted by performance enthusiasts nationwide for premium parts, knowledgeable support, and real-world fitment guidance. Whether you are building a street-driven Corvette or a dedicated track car, our team can help you choose the right wheel and tire package for your setup.
Need help with fitment, tire sizing, or brake clearance? Contact Beefcake Racing today.
Email: sales@beefcakeracing.com
Phone: 1-855-827-7223
Note: Wheels that have been mounted with tires are considered used and cannot be returned or refunded. Please verify vehicle fitment before placing your order, and always test fit wheels prior to tire mounting.
