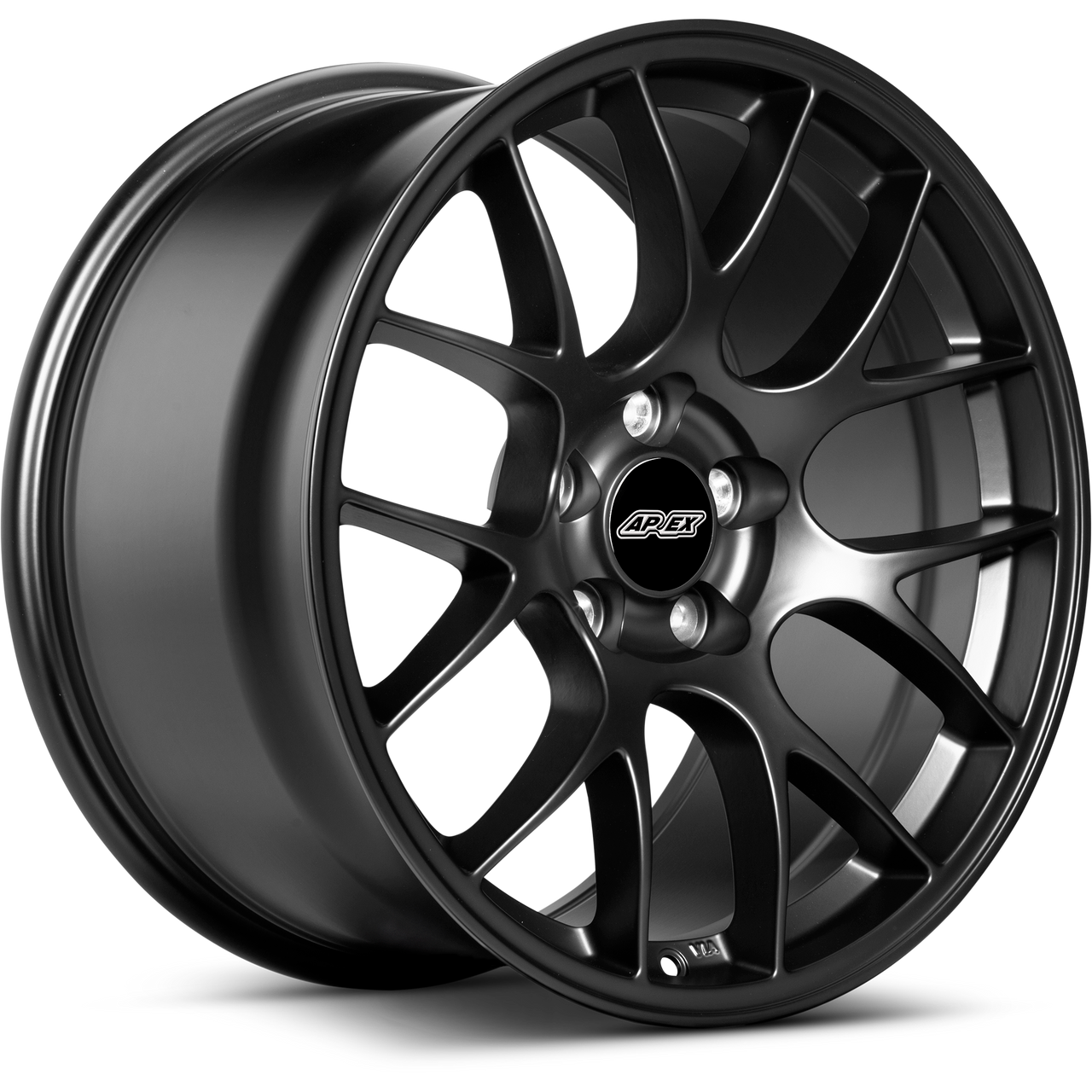

Apex EC-7 18x10 Flow-Formed Wheel (EC71810ET40-51143-705-SMBK) - Ford Mustang
The Apex EC-7 18x10 Flow-Formed Wheel in Satin Black gives Mustang owners a strong, lightweight, track-capable wheel with aggressive concavity and a stealthy motorsport look. This 18x10 ET40 wheel uses a 5x114.3 bolt pattern and 70.5mm center bore for Mustang applications where the complete wheel, tire, brake, and suspension combination has been confirmed.
Built as part of Apex's Flow Formed Classic Line, the EC-7 improves barrel strength and stiffness through flow forming while keeping weight low. Apex also uses Finite Element Analysis to reinforce critical areas and remove unnecessary material, giving enthusiasts a durable performance wheel that does not carry the cost of a fully forged design.
Quick Specs
- Part Number: EC71810ET40-51143-705-SMBK
- Wheel Model: Apex EC-7
- Wheel Size: 18x10
- Offset: ET40
- Bolt Pattern: 5x114.3
- Center Bore: 70.5mm
- Finish: Satin Black
- Construction: Flow-Formed Aluminum
- Face Profile: Profile 2
- Lug Seat: 60 Degree Conical
- Centering Ring: N/A Direct Fit
- Center Cap: Gloss Black Apex Cap Included
- OEM Cap Compatible
- Load Rating: 1,550 lbs
- Weight: 22.1 lbs
- Tested By: VIA
- Test Reference Number: VIA-22-1496
- TPMS Compatible
- Lifetime Structural Warranty
- 1 Year Finish Warranty
Features
- Flow-formed construction for lightweight strength and rigidity
- 18x10 ET40 sizing for performance Mustang applications
- 5x114.3 bolt pattern with 70.5mm direct-fit center bore
- Profile 2 concave face for aggressive styling
- Satin Black finish for a clean, stealthy motorsport look
- Engineered for substantial brake clearance
- Designed using Finite Element Analysis for optimized strength and weight
- Accepts oversized race lugs and impact sockets
- Multi-stage liquid paint over powder coated base coat
- Mounting pads, center bores, and lug holes are left free of excess coating for proper torque accuracy
- JWL compliant and VIA tested
- Compatible with OEM and aftermarket TPMS sensors
- Compatible with OEM hardware, proper aftermarket hardware, most spacers, wheel locks, and stud conversion kits
Fitment
- Ford Mustang Applications Utilizing 5x114.3 Bolt Pattern and 70.5mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, Tire Size, and Final Fitment Prior to Installation
FAQs
Is this Apex EC-7 confirmed for all Mustang years and trims?
No. This wheel uses Mustang-compatible 5x114.3 and 70.5mm hub specifications, but final fitment depends on the vehicle setup, tire size, brake package, suspension, alignment, and fender clearance.
What center cap comes with this wheel?
Apex EC-7 wheels include a gloss black Apex center cap and are OEM cap compatible where applicable.
Why Buy from Beefcake Racing?
Beefcake Racing helps performance enthusiasts choose the right parts with knowledgeable support, competitive pricing, and real-world fitment guidance. Need help confirming wheel sizing, tire choice, or brake clearance? Contact Beefcake Racing before ordering.
Email: sales@beefcakeracing.com
Phone: 1-855-827-7223
Note: Wheels that have been mounted with tires are considered used and cannot be returned or refunded. Please verify vehicle fitment before placing your order, and always test fit wheels prior to tire mounting.
