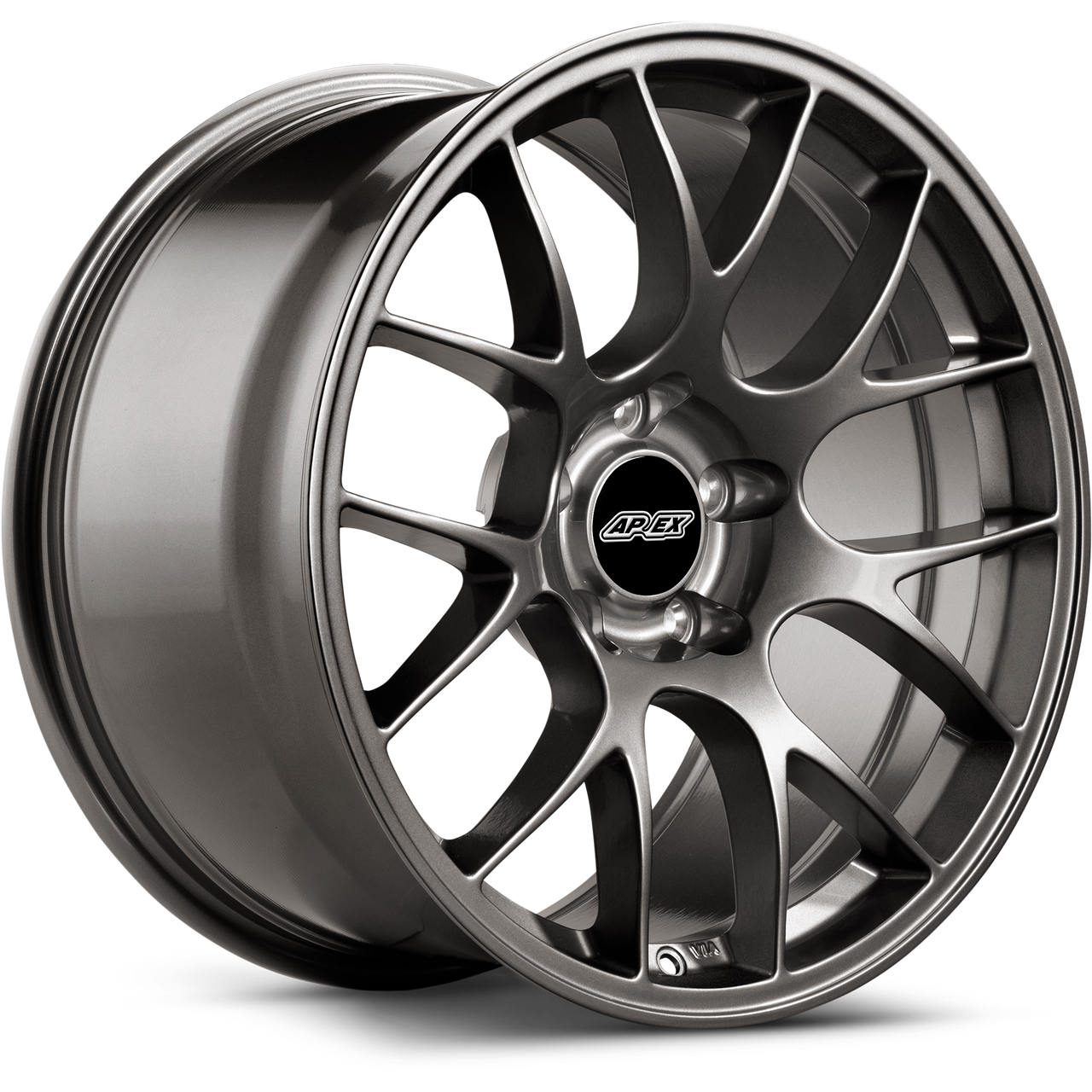

Apex EC-7 18x10 Flow-Formed Wheel (EC71810ET40-51143-705-AN) - Ford Mustang
The Apex EC-7 18x10 Flow-Formed Wheel in Anthracite gives Mustang owners a proven motorsport wheel with lightweight construction, serious brake clearance, and a clean split-spoke design built for real performance use. This 18x10 ET40 fitment uses a 5x114.3 bolt pattern and 70.5mm center bore, making it a strong choice for Mustang applications where the final wheel, tire, brake, and suspension setup has been verified.
Part of Apex's Flow Formed Classic Line, the EC-7 is engineered to improve barrel strength and stiffness while keeping weight under control. Apex uses Finite Element Analysis to reinforce high-stress areas and remove unnecessary material, creating a wheel that is light, durable, and track-capable without the cost of a fully forged wheel.
Quick Specs
- Part Number: EC71810ET40-51143-705-AN
- Wheel Model: Apex EC-7
- Wheel Size: 18x10
- Offset: ET40
- Bolt Pattern: 5x114.3
- Center Bore: 70.5mm
- Finish: Anthracite
- Construction: Flow-Formed Aluminum
- Face Profile: Profile 2
- Lug Seat: 60 Degree Conical
- Centering Ring: N/A Direct Fit
- Center Cap: Gloss Black Apex Cap Included
- OEM Cap Compatible
- Load Rating: 1,550 lbs
- Weight: 22.1 lbs
- Tested By: VIA
- Test Reference Number: VIA-22-1496
- TPMS Compatible
- Lifetime Structural Warranty
- 1 Year Finish Warranty
Features
- Flow-formed construction improves barrel strength, stiffness, and weight efficiency
- 18x10 ET40 sizing for performance-focused Mustang wheel setups
- 5x114.3 bolt pattern with 70.5mm direct-fit center bore
- Profile 2 face for a strong concave motorsport appearance
- Anthracite finish for a clean, aggressive performance look
- Engineered for substantial brake clearance
- Designed using Finite Element Analysis for optimized weight and strength
- Accepts oversized race lugs and impact sockets
- Multi-stage liquid paint over powder coated base coat
- Mounting pads, center bores, and lug holes are left free of excess coating for proper torque accuracy
- JWL compliant and VIA tested
- Compatible with OEM and aftermarket TPMS sensors
- Compatible with OEM hardware, proper aftermarket hardware, most spacers, wheel locks, and stud conversion kits
Fitment
- Ford Mustang Applications Utilizing 5x114.3 Bolt Pattern and 70.5mm Center Bore
- Verify Brake Clearance, Suspension Clearance, Fender Clearance, Tire Size, and Final Fitment Prior to Installation
FAQs
Is this a confirmed direct fit for every Mustang year and trim?
No. This wheel is built for Mustang applications using a 5x114.3 bolt pattern and 70.5mm center bore, but final fitment depends on tire size, brakes, suspension, alignment, and ride height.
Does this Apex EC-7 accept TPMS sensors?
Yes. Apex EC-7 wheels accept OEM and aftermarket TPMS sensors along with standard valve stems.
Why Buy from Beefcake Racing?
Beefcake Racing helps performance enthusiasts choose the right parts with knowledgeable support, competitive pricing, and real-world fitment guidance. Need help confirming wheel sizing, tire choice, or brake clearance? Contact Beefcake Racing before ordering.
Email: sales@beefcakeracing.com
Phone: 1-855-827-7223
Note: Wheels that have been mounted with tires are considered used and cannot be returned or refunded. Please verify vehicle fitment before placing your order, and always test fit wheels prior to tire mounting.
