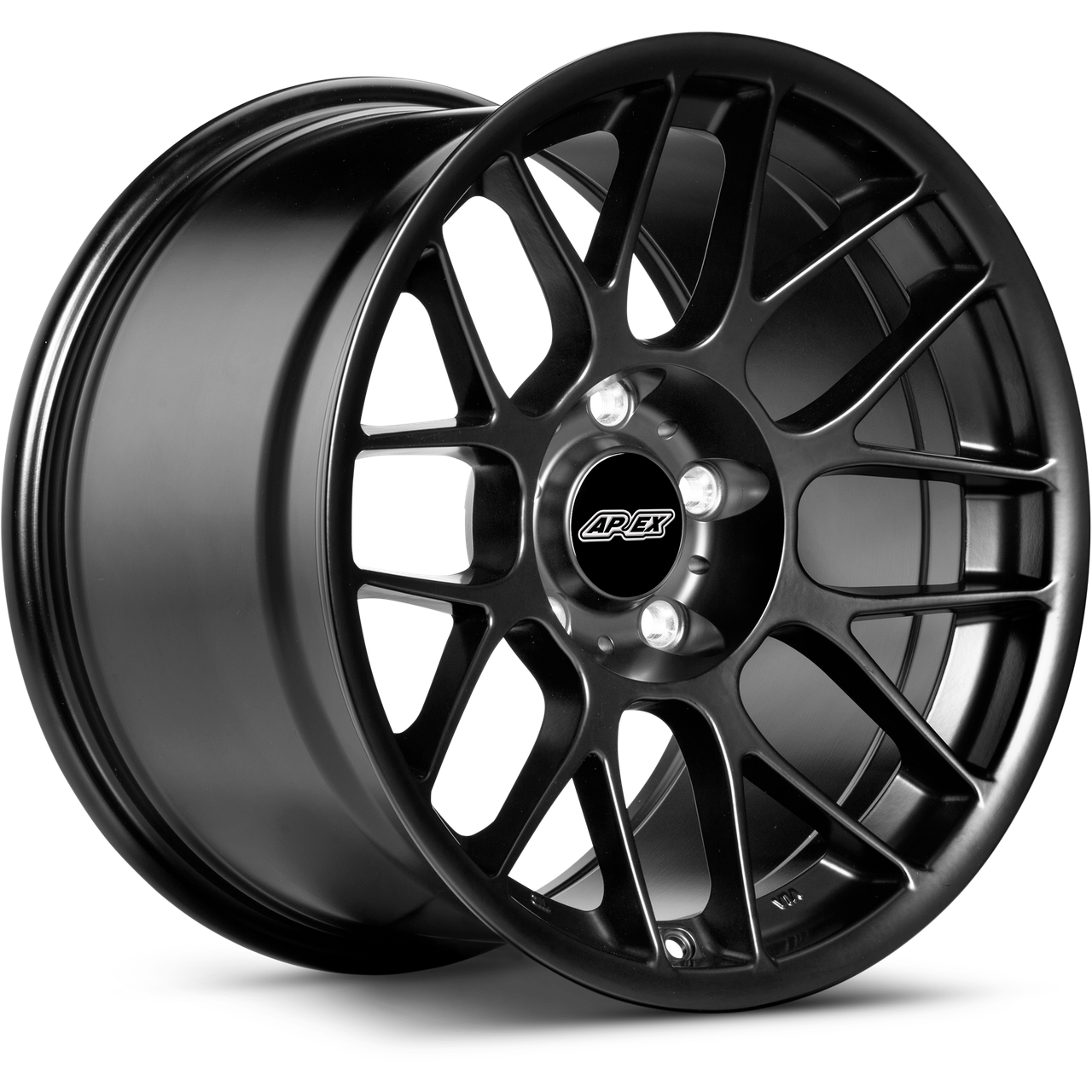

Apex ARC-8 19x10.5 Flow-Formed Wheel 5x120 BP / ET22 / 72.56mm CB - Satin Black (BMW) (ARC819105ET22-5120-7256-SMBK)
The Apex ARC-8 has become one of the most respected BMW performance wheels on the market by delivering lightweight construction, aggressive fitment options, and race-proven durability trusted by enthusiasts worldwide. This 19x10.5 ET22 version finished in Satin Black combines an aggressive motorsport-inspired appearance with the strength, brake clearance, and handling performance needed for serious street and track applications.
Built using advanced flow-forming technology, the ARC-8 strengthens the barrel structure to improve rigidity and impact resistance while reducing unnecessary material for optimized weight savings. Apex engineers further refined the wheel using extensive Finite Element Analysis testing to reinforce high-stress areas while eliminating excess material wherever possible. The result is a lightweight wheel engineered to handle aggressive cornering, repeated heat cycles, and demanding driving conditions without compromising durability.
Quick Specs
- Part Number: ARC819105ET22-5120-7256-SMBK
- Wheel Size: 19x10.5
- Offset: ET22
- Bolt Pattern: 5x120
- Center Bore: 72.56mm
- Finish: Satin Black
- Construction: Flow Formed
- Face Profile: Profile 3 Deep Concavity
- Load Rating: 1,550 pounds
- Weight: Approximately 21.9 pounds
- VIA Registration: VIA-24-0135
- Designed For: BMW Applications
- Accepts OEM BMW Center Caps
- Compatible with OEM and Aftermarket TPMS Sensors
- Compatible with OEM and Aftermarket Mounting Hardware
- Lifetime Structural Warranty
- 1 Year Finish Warranty
Aggressive Fitment with Track-Ready Engineering
The ARC-8 was engineered with true motorsport functionality in mind. Oversized lug recesses allow the use of race lugs and impact sockets, making wheel swaps faster and easier during track days and race weekends. The open hub center design further improves accessibility for enthusiasts who regularly rotate between street and track wheel setups.
Brake clearance was also heavily prioritized during development. The ARC-8 accommodates many aftermarket big brake kits while maintaining its signature deep-concave spoke profile. The aggressive 19x10.5 sizing and ET22 offset allow for wider tire setups, increased rear traction, and a more commanding stance that perfectly complements modern BMW performance builds.
Features
- Advanced flow-formed construction improves strength while minimizing weight
- Large 19x10.5 sizing with aggressive ET22 offset
- Deep concave Profile 3 face design for aggressive motorsport styling
- Finite Element Analysis optimized structure improves rigidity and durability
- Excellent clearance for many aftermarket big brake kits
- Open hub center allows rapid wheel swaps during track use
- Oversized lug recesses support impact sockets and race hardware
- Satin Black multi-stage finish over powder coated base layer
- Untouched mounting surfaces maintain accurate torque retention
- Hub-centric BMW fitment with 72.56mm center bore
- No centering rings required for most BMW applications
- Compatible with OEM BMW center caps
- Accepts OEM and aftermarket TPMS sensors
- Compatible with OEM hardware, wheel spacers, wheel locks, and stud conversions
- Meets or exceeds JWL standards and independently VIA certified
- Backed by Apex lifetime structural warranty
- Protected by Apex accidental damage replacement program
Fitment
- BMW E46 M3
- BMW E90 M3
- BMW E92 M3
- BMW F80 M3
- BMW F82 M4
- BMW F87 M2
FAQs
Why is the 19x10.5 ET22 setup popular for BMW performance builds?
This aggressive sizing supports wider rear tire setups for improved traction and stability while delivering a more aggressive stance ideal for high-performance street and track-focused BMW applications.
Can this wheel clear aftermarket big brake kits?
Yes. The ARC-8 was specifically engineered with generous spoke and barrel clearance to accommodate many popular aftermarket big brake systems.
