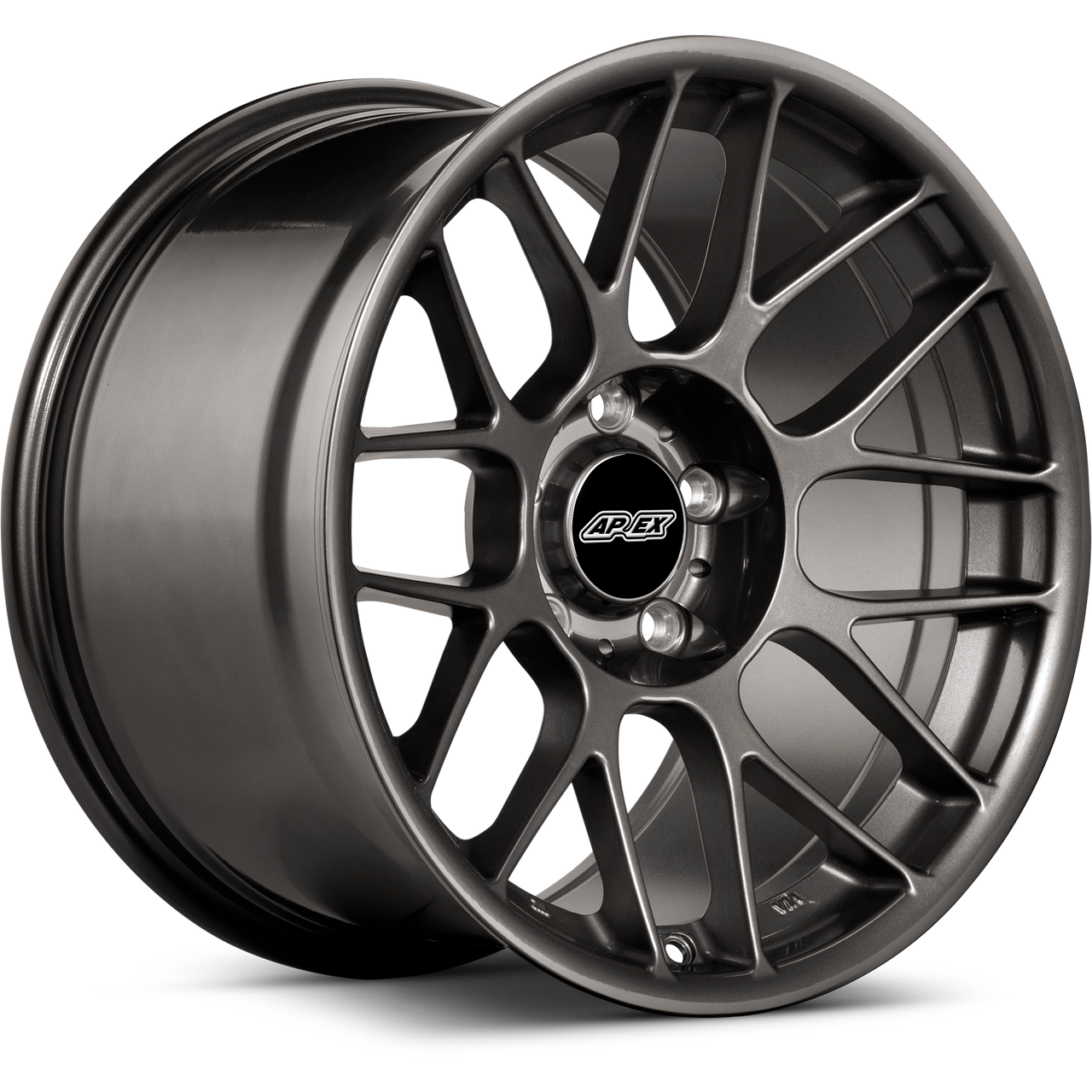

Apex ARC-8 19x10.5 Flow-Formed Wheel 5x120 BP / ET22 / 72.56mm CB - Anthracite (BMW) (ARC819105ET22-5120-7256-AN)
The Apex ARC-8 is one of the most proven BMW performance wheels available, combining lightweight construction, aggressive fitment, and race-ready durability into a package trusted by enthusiasts on both the street and the track. This 19x10.5 ET22 configuration finished in Anthracite delivers an aggressive stance and deep concave profile while maintaining the strength, brake clearance, and low rotational mass needed for serious high-performance driving.
Manufactured using advanced flow-forming technology, the ARC-8 strengthens the barrel structure to improve rigidity and impact resistance while reducing unnecessary material for optimized weight savings. Apex engineers also utilized extensive Finite Element Analysis testing to reinforce high-load areas while eliminating excess mass wherever possible. The result is a lightweight wheel engineered to withstand aggressive cornering, repeated track heat cycles, and demanding road conditions without compromising durability.
Quick Specs
- Part Number: ARC819105ET22-5120-7256-AN
- Wheel Size: 19x10.5
- Offset: ET22
- Bolt Pattern: 5x120
- Center Bore: 72.56mm
- Finish: Anthracite
- Construction: Flow Formed
- Face Profile: Profile 3 Deep Concavity
- Load Rating: 1,550 pounds
- Weight: Approximately 21.9 pounds
- VIA Registration: VIA-24-0135
- Designed For: BMW Applications
- Accepts OEM BMW Center Caps
- Compatible with OEM and Aftermarket TPMS Sensors
- Compatible with OEM and Aftermarket Mounting Hardware
- Lifetime Structural Warranty
- 1 Year Finish Warranty
Deep Concavity and Motorsport Engineering Combined
The ARC-8 was engineered around real-world motorsport functionality. Oversized lug recesses allow the use of race lugs and impact sockets, making wheel swaps significantly faster during track days and race weekends. The open hub center design further improves access and serviceability for enthusiasts who regularly switch between street and track wheel setups.
Brake clearance was also heavily prioritized during development. The ARC-8 accommodates many aftermarket big brake kits while maintaining its signature deep-concave spoke design. The aggressive 19x10.5 sizing and ET22 offset provide a powerful stance and increased rear tire capability, making this wheel ideal for BMW enthusiasts looking to maximize traction, stability, and visual presence.
Features
- Advanced flow-formed construction improves strength while minimizing weight
- Large 19x10.5 sizing with aggressive ET22 offset
- Deep concave Profile 3 face design for aggressive motorsport styling
- Finite Element Analysis optimized structure improves rigidity and durability
- Excellent clearance for many aftermarket big brake kits
- Open hub center allows rapid wheel swaps during track use
- Oversized lug recesses support impact sockets and race hardware
- Anthracite multi-stage finish over powder coated base layer
- Untouched mounting surfaces maintain accurate torque retention
- Hub-centric BMW fitment with 72.56mm center bore
- No centering rings required for most BMW applications
- Compatible with OEM BMW center caps
- Accepts OEM and aftermarket TPMS sensors
- Compatible with OEM hardware, wheel spacers, wheel locks, and stud conversions
- Meets or exceeds JWL standards and independently VIA certified
- Backed by Apex lifetime structural warranty
- Protected by Apex accidental damage replacement program
Fitment
- BMW E46 M3
- BMW E90 M3
- BMW E92 M3
- BMW F80 M3
- BMW F82 M4
- BMW F87 M2
FAQs
What is the advantage of the 19x10.5 ET22 sizing?
This aggressive sizing allows for wider rear tire setups, improved traction, and a more aggressive stance, making it popular for high-performance street and track-focused BMW builds.
Will this wheel clear aftermarket big brake kits?
Yes. The ARC-8 was specifically engineered with excellent spoke and barrel clearance to accommodate many popular aftermarket big brake systems.
