Vortech Standard 10:1 FMU Recalibration Kit 6Z170-040
10:1 FMU Recalibration Kit for Vortech Standard Fuel Management Units
The Vortech Standard 10:1 FMU Recalibration Kit (PN 6Z170-040) is engineered to change the fuel pressure rise rate of an existing Vortech Standard Fuel Management Unit (FMU) to a 10:1 ratio. This calibration is commonly used in EFI supercharged applications that require less aggressive fuel pressure gain than a 12:1 FMU while still maintaining safe air-to-fuel ratios under boost.
Instead of replacing the complete FMU assembly, this kit provides a precise and cost-effective method to tailor fuel pressure behavior to injector size, boost level, and overall engine combination.
What the 10:1 Calibration Is Used For
The 10:1 FMU calibration is typically paired with 24 lb/hr fuel injectors in Vortech supercharged applications, including Cobra-style injector setups. It offers a balanced increase in fuel pressure that improves control and drivability while still supplying sufficient enrichment under boost.
Higher ratios such as 12:1 are best suited for stock injectors, while lower ratios are recommended when larger injectors are installed to prevent excessive fuel pressure.

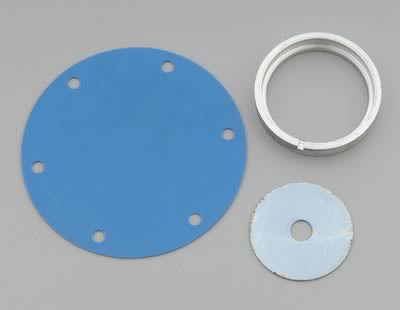

Kit Contents
- 10:1 calibration ring
- Washer
- Replacement upper diaphragm
- FMU recalibration instructions
Recommended Injector Pairings
- 12:1 - 19 lb/hr injectors
- 10:1 - 24 lb/hr injectors (Cobra)
- 8:1 - 24 lb/hr injectors (GT/LX)
- 6:1 - 30 lb/hr injectors
- 4:1 - 38-42 lb/hr injectors
- 3:1 - 50 lb/hr injectors
Injector Conversion Note: To convert injector size from cc/min to lb/hr, divide the cc value by 10.5 (example: 440cc ? 42 lb/hr).
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 6Z170-040
- Product Type: FMU Recalibration Kit
- Calibration Ratio: 10:1
- Compatible Product: Vortech Standard FMUs
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with extensive experience supporting FMU-based EFI supercharger fuel systems. If you're recalibrating an existing FMU to match injector upgrades or revised power goals, our team can help ensure a safe and effective setup.
