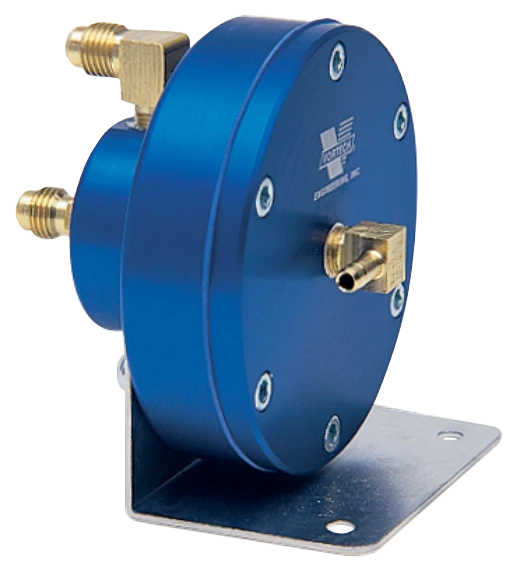

Vortech Standard Fuel Management Unit 12:1 FMU with 1/4" Barb Fittings & Stiffer Spring 6Z110-139
12:1 Rising-Rate FMU for Stock-Injector EFI Vortech Systems
The Vortech Standard Fuel Management Unit (FMU) (PN 6Z110-139) is a high-quality secondary fuel pressure regulator engineered for multi-point electronic fuel injected (EFI) engines running Vortech supercharger systems. This 12:1 rising-rate FMU installs inline with the factory fuel pressure regulator on the return line and increases fuel pressure in direct proportion to boost pressure to maintain safe air-to-fuel ratios under boost.
This configuration features 1/4" barb fittings and a stiffer internal spring, making it the standard calibration supplied with many Vortech supercharger systems. Proper operation assumes the fuel pump being used is capable of delivering the pressure and flow required to support rising fuel demands under boost.
12:1 FMU Calibration Overview
The 12:1 FMU is designed primarily for Vortech supercharged applications using original equipment fuel injectors. This higher fuel pressure rise rate helps maintain an air-to-fuel ratio of approximately 10.8:1 to 11.5:1 under boost, depending on engine efficiency, boost level, and overall system configuration.
For applications using upgraded injectors, lower-ratio FMUs (10:1, 8:1, 7:1, 6:1, 4:1, and 3:1) are recommended to prevent excessive fuel pressure while still supporting safe fueling.
Recommended Injector Pairings
- 12:1 - 19 lb/hr injectors
- 10:1 - 24 lb/hr injectors (Cobra)
- 8:1 - 24 lb/hr injectors (GT/LX)
- 6:1 - 30 lb/hr injectors
- 4:1 - 38-42 lb/hr injectors
- 3:1 - 50 lb/hr injectors
Injector Conversion Note: To convert injector size from cc/min to lb/hr, divide the cc value by 10.5 (example: 440cc ? 42 lb/hr).
Construction & Design Features
- Precision CNC-machined 6061-T6 aluminum body
- Durable blue anodized finish
- Stiffer internal spring for higher fuel pressure rise rates
- Boost-referenced rising-rate fuel pressure control
- Installs inline with factory fuel pressure regulator
- Designed for Vortech supercharged multi-point EFI applications
- 1/4" barb fittings for easy fuel line integration
Quick Specs
- Manufacturer: Vortech Superchargers
- Part Number: 6Z110-139
- FMU Ratio: 12:1
- Fuel System Type: Multi-point EFI
- Installation: Inline with factory regulator (return line)
- Material: 6061-T6 Aluminum
- Finish: Blue Anodized
- Fittings: 1/4" Barb
Emissions & Legal Notice
- NOT AVAILABLE OR LEGAL FOR SALE IN CALIFORNIA
- For off-road and competition use only
- Installation on emissions-controlled vehicles driven on public roads may violate U.S. federal emissions law
Why Buy from Beefcake Racing?
Beefcake Racing is an authorized Vortech Superchargers dealer with deep experience supporting EFI supercharged fuel system configurations. We help customers select the correct FMU calibration and supporting components to ensure safe air-to-fuel ratios and dependable performance under boost.
