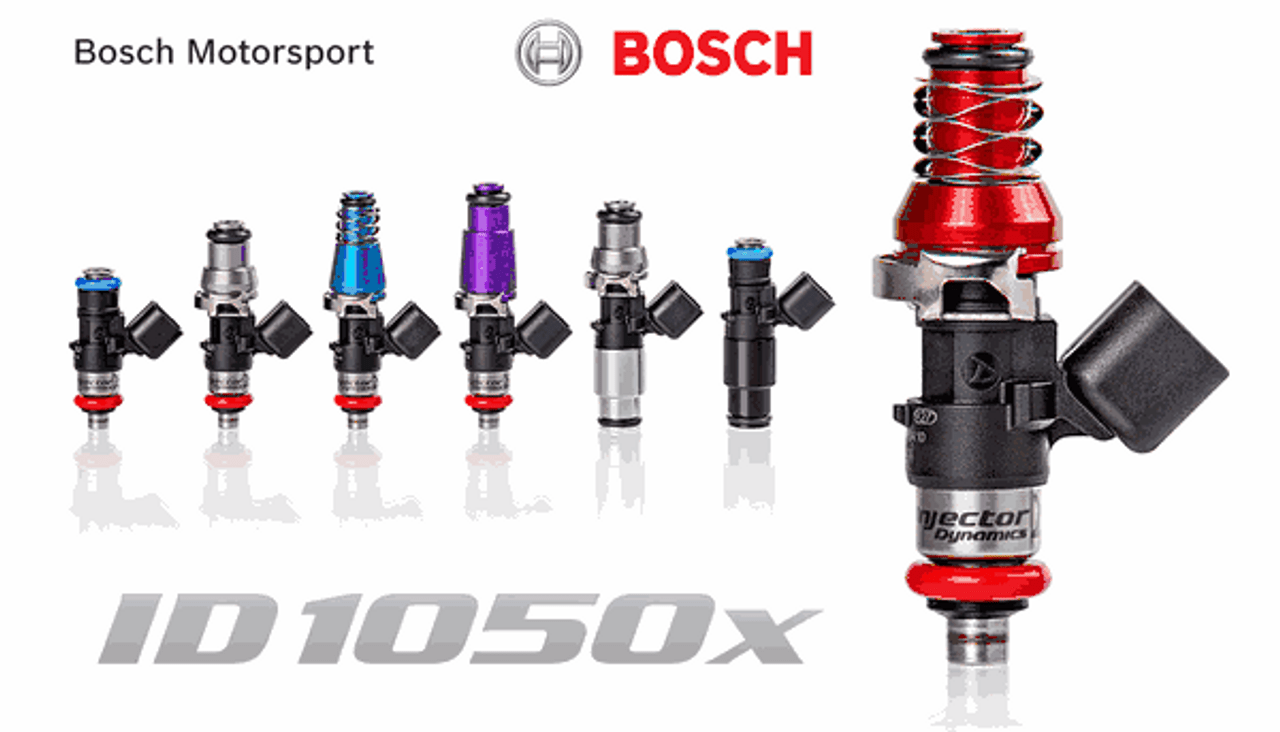

Injector Dynamics ID1050-XDS Black Adaptor Fuel Injectors Set of 6 (Falcon XR6 Turbo) 1050.48.14.14B.6

The ID1050-XDS is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300-XDS, and ID1700-XDS. Like the ID1300-XDS and ID1700-XDS, the ID1050-XDS is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050-XDS offers numerous improvements, and is sure to become the new reference.

Features & Benefits

• Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.

• Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.

• Improved internal flow path increases output by 5% without sacrificing low flow performance.

• Stronger magnetic circuit offers stable operation up to 10 bar.

• Replaceable inlet filter extends service life.

• 48mm length, 14mm (black) bottom adaptor

Specifications

Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)

Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)

Fuel Compatibility: Compatible With All Known Fuels

Electrical Connector: USCAR

Applications

• Falcon XR6 Turbo (FG)
