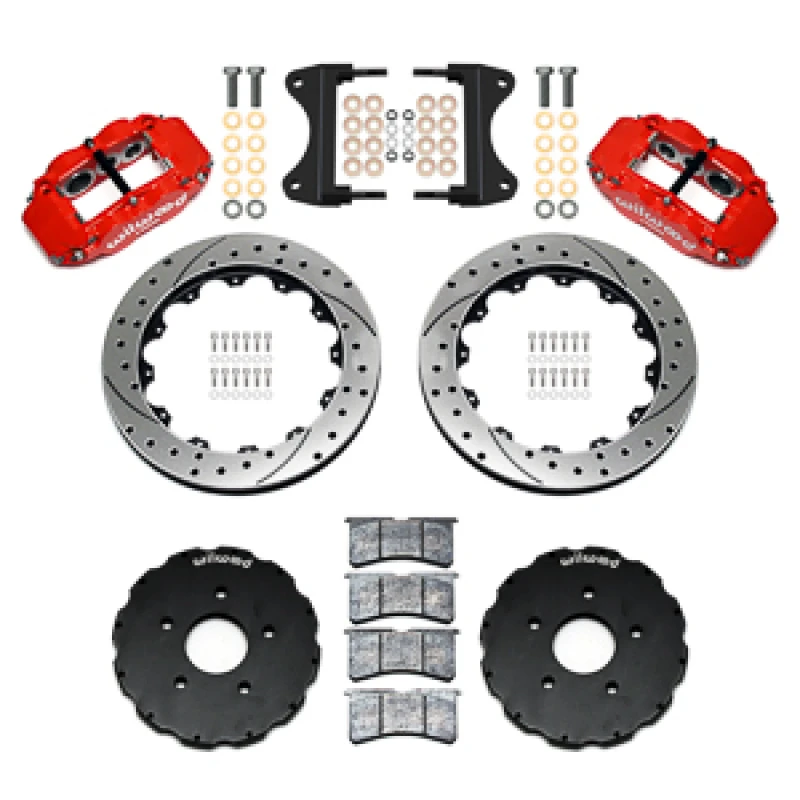

Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with Drilled & Slotted Rotors Red (140-18531-DR) - 2014-2019 Chevrolet Corvette C7
Upgrade the front braking system of your 2014-2019 Chevrolet Corvette C7 with the Wilwood Forged Narrow Superlite 6R Big Brake Kit. Featuring six-piston calipers with a red finish and 13.06-inch drilled and slotted rotors, this application-specific kit provides increased braking capacity for high-performance street and track applications.
Wilwood's Forged Narrow Superlite 6R (FNSL6R) caliper serves as the foundation of this big brake system, combining six-piston braking performance with compatibility with factory master cylinder output and ABS functions. The kit is engineered for installation on factory disc brake spindles.
Forged Narrow Superlite 6R Calipers
The FNSL6R six-piston calipers are engineered to deliver substantial braking capacity for demanding driving conditions. Their forged construction provides strength and rigidity, while the red finish adds a performance-inspired appearance that complements aftermarket wheel and suspension upgrades.
13.06-Inch Drilled and Slotted Rotors
This kit features 13.06-inch drilled and slotted front brake rotors with a hat-style mounting configuration. The drilled and slotted rotor design provides a performance-oriented appearance, making this system suitable for show vehicles and high-performance street and track builds.
Application-Specific Installation
Wilwood engineers its FNSL6R brake kits for specific vehicle applications to simplify installation and maintain compatibility with the original master cylinder output and ABS functions where equipped. The radial-mount caliper configuration is designed for use with factory disc brake spindles.
Features
- Wilwood Forged Narrow Superlite 6R front big brake kit
- Six-piston FNSL6R brake calipers
- Forged caliper construction for strength and rigidity
- Red caliper finish
- 13.06-inch drilled and slotted front brake rotors
- Hat-style rotor mounting configuration
- Radial-mount caliper design
- Designed for factory disc brake spindles
- Application-specific engineering for simplified installation
- Compatible with factory master cylinder output
- Designed to maintain factory ABS functionality where equipped
- Increased braking capacity for performance street and track applications
- Complements aftermarket wheel, tire, and suspension upgrades
- Minimum required wheel diameter of 17 inches, subject to wheel clearance
- Front brake line kit required separately
Kit Specifications
- Brake Location: Front
- Spindle Type: Factory Disc Spindle
- Caliper Model: Forged Narrow Superlite 6R
- Caliper Pistons: 6
- Caliper Finish: Red
- Caliper Mount: Radial
- Rotor Diameter: 13.06 Inches
- Rotor Style: Drilled and Slotted
- Minimum Wheel Diameter: 17 Inches
- Front Brake Line Kit: Required Separately
Fitment
- 2014 Chevrolet Corvette C7
- 2015 Chevrolet Corvette C7
- 2016 Chevrolet Corvette C7
- 2017 Chevrolet Corvette C7
- 2018 Chevrolet Corvette C7
- 2019 Chevrolet Corvette C7
Installation Note: A compatible Wilwood front brake line kit is required and must be purchased separately. The stated 17-inch minimum wheel diameter does not guarantee clearance with every wheel design. Verify wheel-to-caliper clearance before installation.
