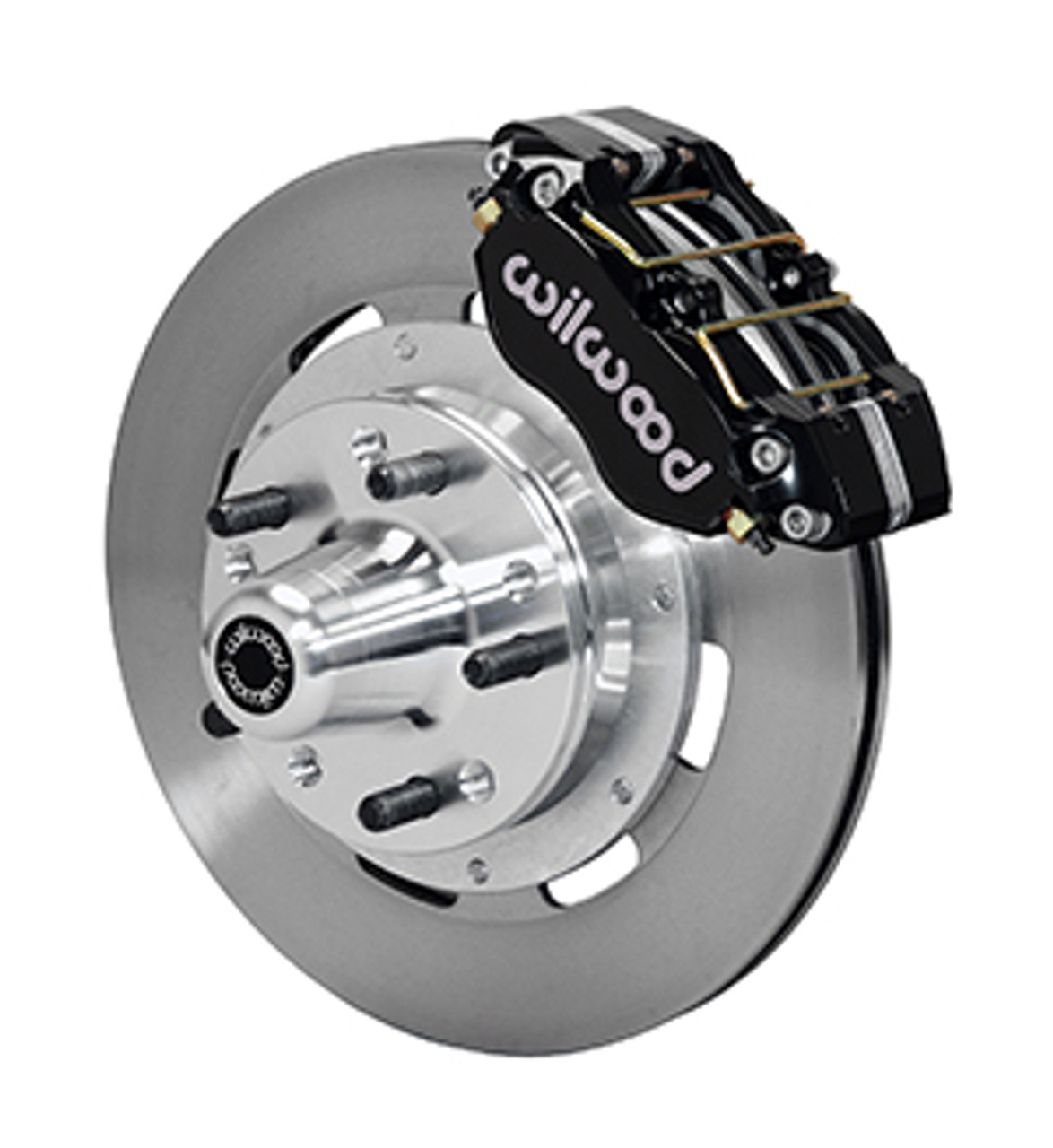

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynapro Dust Boot calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Kit Summary
OE Hub Offset: +.00 (Increase / Decrease Track Width)
Spindle Type: Drop Spindle Factory Disc Spindle
Mount Type: Lug
Caliper Type: 4
Rotor Diameter: 12.19
Min Wheel Diameter Req'd: 15
Notes:
• Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
• Brake Line Kit Needed wilwood-220-8307
Application
• Ford Mustang II 1974-1978 All
