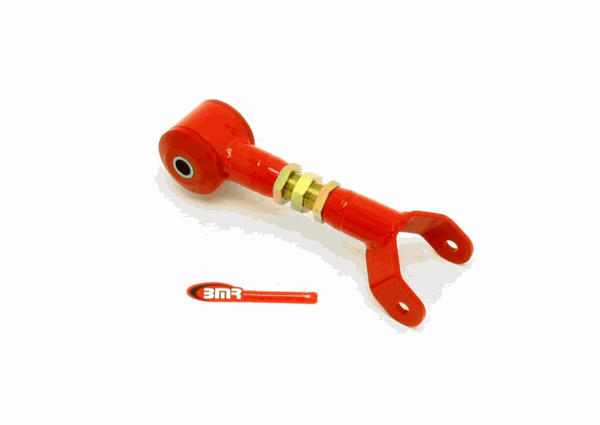

BMR Upper Control Arm DOM On-Car Adjustable Polyurethane Bushing 9-Inch Housing Red (2011-2014 Mustang / 2007-2014 Shelby GT500) UTCA034R
Launch harder, eliminate wheel hop, and add cornering consistency to your 9-inch rearend-equipped S197 platform with the BMR Suspension On-Car Adjustable Rear Upper Control Arm. The factory upper control arm is prone to flexing under heavy loads, and when combined with soft rubber bushings, it deflects significantly. This deflection absorbs valuable horsepower instead of transferring it to the tires, leading to wheel hop, inconsistent traction, and altered pinion angles. Engineered specifically for vehicles upgraded with a 9-inch rear housing across street performance, drag racing, and road racing applications, this heavy-duty upper control arm eliminates flex while keeping your ride quiet and comfortable.
Built to withstand extreme performance environments, this control arm is manufactured from heavy-duty 1-5/8 inch, 0.120-inch wall DOM steel tubing and features professional TIG-welded chrome-moly tube adapters. For precision alignment adjustments, the arm utilizes a CNC-machined chrome-moly center adjuster with rolled threads for ultimate strength and durability. The on-car adjustable design allows you to easily fine-tune your rear pinion angle to optimize driveline geometry and reduce drivetrain vibration without removing the arm from the vehicle. To eliminate compliance without sacrificing ride quality, BMR equips the arm with large 2-inch, high-performance 95-durometer polyurethane bushings. These premium bushings feature internal fluting that evenly distributes grease to the inner sleeve and thrust surfaces, ensuring long-lasting, quiet, and bind-free operation. Finished in a high-gloss red powdercoat, this upgrade installs in approximately 2-3 hours using basic hand tools. Note: BMR strongly recommends upgrading to the factory-length aftermarket mount (Part # UCM002) when installing this arm to avoid potential clunking noise from the stock mount.
Features
- Eradicates control arm flex and wheel hop for harder launches and improved traction
- Specially engineered for 2011-2014 Mustangs and 2007-2014 Shelby GT500s equipped with a 9-inch rearend housing
- On-car adjustable design allows for quick, simple pinion angle tuning without removing the arm
- CNC-machined chrome-moly center adjuster with rolled threads delivers maximum structural strength
- Manufactured from heavy-duty 1-5/8 inch, 0.120-inch wall tubular DOM steel with TIG-welded tube adapters
- Equipped with high-durometer, internally fluted, greasable 2-inch polyurethane bushings
- Efficiently fluted bushing channels ensure quiet, reliable operation and simplified maintenance
- Provides excellent articulation for superior handling while maintaining OEM-like NVH levels
- Engineered to excel in high-performance street, drag racing, and demanding road course environments
- Finished in a long-lasting, premium red powdercoat for excellent rust and corrosion resistance
- Proudly designed, tested, and manufactured in the U.S.A.
- Direct bolt-on installation takes approximately 2-3 hours using standard garage tools
Fitment
- 2007 Ford Mustang Shelby GT500 (Equipped with 9-Inch Housing)
- 2008 Ford Mustang Shelby GT500 (Equipped with 9-Inch Housing)
- 2009 Ford Mustang Shelby GT500 (Equipped with 9-Inch Housing)
- 2010 Ford Mustang Shelby GT500 (Equipped with 9-Inch Housing)
- 2011 Ford Mustang (GT / V6 / Boss 302 / Shelby GT500) - Equipped with 9-Inch Housing
- 2012 Ford Mustang (GT / V6 / Boss 302 / Shelby GT500) - Equipped with 9-Inch Housing
- 2013 Ford Mustang (GT / V6 / Boss 302 / Shelby GT500) - Equipped with 9-Inch Housing
- 2014 Ford Mustang (GT / V6 / Shelby GT500) - Equipped with 9-Inch Housing
