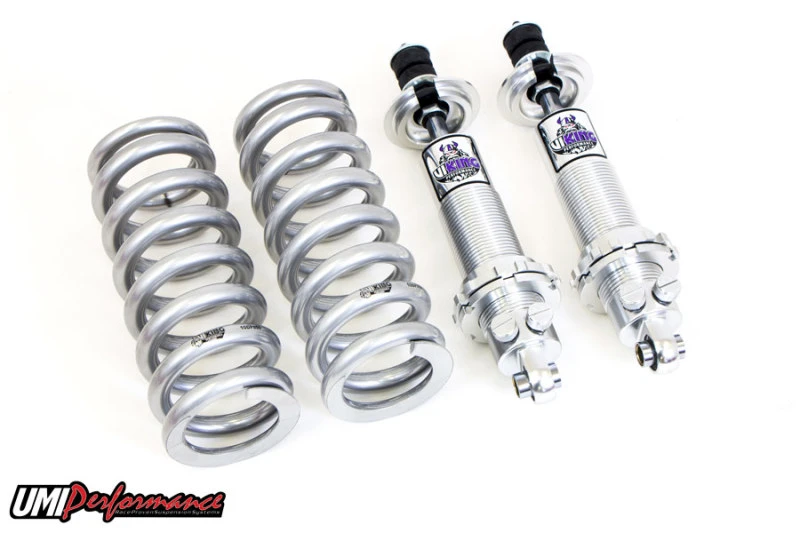

UMI Performance Viking Front Coilover Kit - Double Adjustable - Bearing - 350lb Spring (1973-1977 A-Body / 1978-1988 G-Body / 1982-2003 S10) - A224-350R
Upgrade your classic GM suspension with the UMI Performance Front Viking Double-Adjustable Coilover Kit featuring 350 lb/in springs and bearing mounts (A224-350R). Engineered specifically for 1973-1977 GM A-Bodies, 1978-1988 GM G-Bodies, and 1982"2003 2WD S10 / S15 trucks, this kit provides a balanced spring rate tailored for small block street cruising or drag racing with weight reduction.
Equipped with Viking's 19-position double-adjustable shocks, you can independently tune compression and rebound damping for optimal weight transfer and traction. The high-quality hybrid springs and dampening setup allow for an adjustable lowered ride height (1.5" to 3" drop) while maintaining superior control. Built, dyno-tested, and serialized in Lakeville, Minnesota.
Features
- Optimized 350 lb/in spring rate tailored for small block street cruising or drag racing applications requiring vehicle lightening
- Bearing-mounted lower shock ends for increased reliability and performance in high-load situations
- 19-way adjustable independent compression and rebound damping (361 possible combinations)
- Allows for an adjustable lowered ride height from 1.5" to a 3" drop
- High-quality hybrid coil springs with protective corrosion-resistant finish
- Compatible with factory lower control arms or UMI aftermarket lower a-arms
- Built, dyno-tested, and serialized in Lakeville, USA
- Includes spanner wrench tool and thrust bearing kit for easier height adjustments
Specifications
- SKU / Part Number: A224-350R
- Manufacturer: UMI Performance / Viking Performance
- Vehicle Fitment: 1973-1977 GM A-Body, 1978-1988 GM G-Body, 1982"2003 S10 & S15 (2WD)
- Spring Rate: 350 lb/in (Small Block Cruise / Drag Race with Lightening)
- Shock Type: Viking 19-Position Double-Adjustable
- Lower Mount: Bearing Ends (Performance / Drag)
- Ride Height Drop: 1.5" to 3" Lowered
- Weight: 25 lbs
- Dimensions: 17 Ã 15 Ã 15 in
- Direct Bolt-On: Yes
What's in the Box
- 2 x Front Double-Adjustable Coilover Shocks with Bearing Ends
- 2 x 350 lb/in Front Coilover Springs
- Spanner Wrench & Thrust Bearing Kit
- Adjustment Hardware & Instructions
Fitment
Buick:
- 1973 Buick Century
- 1974 Buick Century
- 1975 Buick Century
- 1976 Buick Century
- 1977 Buick Century
- 1973 Buick Regal
- 1974 Buick Regal
- 1975 Buick Regal
- 1976 Buick Regal
- 1977 Buick Regal
- 1978 Buick Regal
- 1979 Buick Regal
- 1980 Buick Regal
- 1981 Buick Regal
- 1982 Buick Regal
- 1983 Buick Regal
- 1984 Buick Regal
- 1985 Buick Regal
- 1986 Buick Regal
- 1987 Buick Regal
Chevrolet:
- 1973 Chevrolet Chevelle
- 1974 Chevrolet Chevelle
- 1975 Chevrolet Chevelle
- 1976 Chevrolet Chevelle
- 1977 Chevrolet Chevelle
- 1973 Chevrolet El Camino
- 1974 Chevrolet El Camino
- 1975 Chevrolet El Camino
- 1976 Chevrolet El Camino
- 1977 Chevrolet El Camino
- 1978 Chevrolet El Camino
- 1979 Chevrolet El Camino
- 1980 Chevrolet El Camino
- 1981 Chevrolet El Camino
- 1982 Chevrolet El Camino
- 1983 Chevrolet El Camino
- 1984 Chevrolet El Camino
- 1985 Chevrolet El Camino
- 1986 Chevrolet El Camino
- 1987 Chevrolet El Camino
- 1973 Chevrolet Laguna
- 1974 Chevrolet Laguna
- 1975 Chevrolet Laguna
- 1976 Chevrolet Laguna
- 1973 Chevrolet Malibu
- 1974 Chevrolet Malibu
- 1975 Chevrolet Malibu
- 1976 Chevrolet Malibu
- 1977 Chevrolet Malibu
- 1978 Chevrolet Malibu
- 1979 Chevrolet Malibu
- 1980 Chevrolet Malibu
- 1981 Chevrolet Malibu
- 1982 Chevrolet Malibu
- 1983 Chevrolet Malibu
- 1973 Chevrolet Monte Carlo
- 1974 Chevrolet Monte Carlo
- 1975 Chevrolet Monte Carlo
- 1976 Chevrolet Monte Carlo
- 1977 Chevrolet Monte Carlo
- 1978 Chevrolet Monte Carlo
- 1979 Chevrolet Monte Carlo
- 1980 Chevrolet Monte Carlo
- 1981 Chevrolet Monte Carlo
- 1982 Chevrolet Monte Carlo
- 1983 Chevrolet Monte Carlo
- 1984 Chevrolet Monte Carlo
- 1985 Chevrolet Monte Carlo
- 1986 Chevrolet Monte Carlo
- 1987 Chevrolet Monte Carlo
- 1988 Chevrolet Monte Carlo
- 1982 Chevrolet S-10 2WD
- 1983 Chevrolet S-10 2WD
- 1984 Chevrolet S-10 2WD
- 1985 Chevrolet S-10 2WD
- 1986 Chevrolet S-10 2WD
- 1987 Chevrolet S-10 2WD
- 1988 Chevrolet S-10 2WD
- 1989 Chevrolet S-10 2WD
- 1990 Chevrolet S-10 2WD
- 1991 Chevrolet S-10 2WD
- 1992 Chevrolet S-10 2WD
- 1993 Chevrolet S-10 2WD
- 1994 Chevrolet S-10 2WD
- 1995 Chevrolet S-10 2WD
- 1996 Chevrolet S-10 2WD
- 1997 Chevrolet S-10 2WD
- 1998 Chevrolet S-10 2WD
- 1999 Chevrolet S-10 2WD
- 2000 Chevrolet S-10 2WD
- 2001 Chevrolet S-10 2WD
- 2002 Chevrolet S-10 2WD
- 2003 Chevrolet S-10 2WD
- 1983 Chevrolet S10 Blazer 2WD
- 1984 Chevrolet S10 Blazer 2WD
- 1985 Chevrolet S10 Blazer 2WD
- 1986 Chevrolet S10 Blazer 2WD
- 1987 Chevrolet S10 Blazer 2WD
- 1988 Chevrolet S10 Blazer 2WD
- 1989 Chevrolet S10 Blazer 2WD
- 1990 Chevrolet S10 Blazer 2WD
- 1991 Chevrolet S10 Blazer 2WD
- 1992 Chevrolet S10 Blazer 2WD
- 1993 Chevrolet S10 Blazer 2WD
- 1994 Chevrolet S10 Blazer 2WD
GMC:
- 1978 GMC Caballero
- 1979 GMC Caballero
- 1980 GMC Caballero
- 1981 GMC Caballero
- 1982 GMC Caballero
- 1983 GMC Caballero
- 1984 GMC Caballero
- 1985 GMC Caballero
- 1986 GMC Caballero
- 1987 GMC Caballero
- 1982 GMC S15 2WD
- 1983 GMC S15 2WD
- 1984 GMC S15 2WD
- 1985 GMC S15 2WD
- 1986 GMC S15 2WD
- 1987 GMC S15 2WD
- 1988 GMC S15 2WD
- 1989 GMC S15 2WD
- 1990 GMC S15 2WD
- 1991 GMC Sonoma 2WD
- 1992 GMC Sonoma 2WD
- 1993 GMC Sonoma 2WD
- 1994 GMC Sonoma 2WD
- 1995 GMC Sonoma 2WD
- 1996 GMC Sonoma 2WD
- 1997 GMC Sonoma 2WD
- 1998 GMC Sonoma 2WD
- 1999 GMC Sonoma 2WD
- 2000 GMC Sonoma 2WD
- 2001 GMC Sonoma 2WD
- 2002 GMC Sonoma 2WD
- 2003 GMC Sonoma 2WD
- 1983 GMC S15 Jimmy 2WD
- 1984 GMC S15 Jimmy 2WD
- 1985 GMC S15 Jimmy 2WD
- 1986 GMC S15 Jimmy 2WD
- 1987 GMC S15 Jimmy 2WD
- 1988 GMC S15 Jimmy 2WD
- 1989 GMC S15 Jimmy 2WD
- 1990 GMC S15 Jimmy 2WD
- 1991 GMC S15 Jimmy 2WD
Oldsmobile:
- 1973 Oldsmobile F-85
- 1974 Oldsmobile F-85
- 1975 Oldsmobile F-85
- 1976 Oldsmobile F-85
- 1977 Oldsmobile F-85
- 1973 Oldsmobile Cutlass
- 1974 Oldsmobile Cutlass
- 1975 Oldsmobile Cutlass
- 1976 Oldsmobile Cutlass
- 1977 Oldsmobile Cutlass
- 1978 Oldsmobile Cutlass
- 1979 Oldsmobile Cutlass
- 1980 Oldsmobile Cutlass
- 1981 Oldsmobile Cutlass
- 1982 Oldsmobile Cutlass
- 1983 Oldsmobile Cutlass
- 1984 Oldsmobile Cutlass
- 1985 Oldsmobile Cutlass
- 1986 Oldsmobile Cutlass
- 1987 Oldsmobile Cutlass
- 1988 Oldsmobile Cutlass
Pontiac:
- 1973 Pontiac GTO
- 1974 Pontiac GTO
- 1975 Pontiac GTO
- 1976 Pontiac GTO
- 1977 Pontiac GTO
- 1973 Pontiac Lemans
- 1974 Pontiac Lemans
- 1975 Pontiac Lemans
- 1976 Pontiac Lemans
- 1977 Pontiac Lemans
- 1973 Pontiac Grand Am
- 1974 Pontiac Grand Am
- 1975 Pontiac Grand Am
- 1976 Pontiac Grand Am
- 1977 Pontiac Grand Am
- 1982 Pontiac Bonneville
- 1983 Pontiac Bonneville
- 1984 Pontiac Bonneville
- 1985 Pontiac Bonneville
- 1986 Pontiac Bonneville
- 1978 Pontiac Grand Prix
- 1979 Pontiac Grand Prix
- 1980 Pontiac Grand Prix
- 1981 Pontiac Grand Prix
- 1982 Pontiac Grand Prix
- 1983 Pontiac Grand Prix
- 1984 Pontiac Grand Prix
- 1985 Pontiac Grand Prix
- 1986 Pontiac Grand Prix
- 1987 Pontiac Grand Prix
