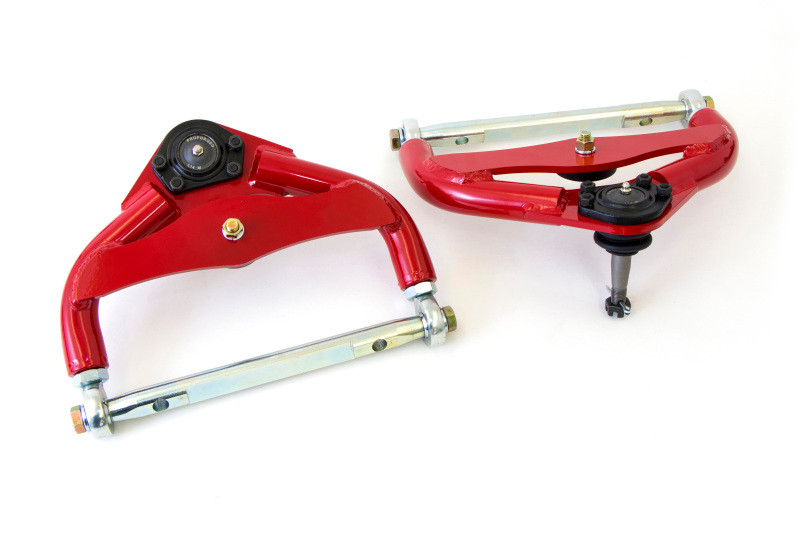

UMI Performance Tubular Front Upper A-Arms - Adjustable - 1/2" Taller Ball Joints - Red (1978-1988 G-Body / 1982-2003 S10) - 3056-2-R
Enhance your vehicle's handling geometry with the UMI Performance 3056 Adjustable Tubular Front Upper A-Arms featuring 1/2" taller ball joints in red (3056-2-R). Designed for high-performance racing and aggressive street driving, these arms feature race-quality rod ends that allow for smooth travel and shim-free camber and caster adjustments.
Equipped with pre-installed 1/2" taller ball joints, this kit improves the camber curve and is fully compatible with factory spindles. The relocated ball joint pad and shortened cross-shaft-to-ball-joint distance dramatically increase positive caster and steering stability.
Features
- Relocated ball joint pad for increased caster and improved steering feel without excess shims
- Includes 1/2" taller ball joints for a significantly improved camber curve
- Compatible directly with factory spindles
- Race-quality rod ends for smooth travel and precise, shim-free camber/caster tuning
- Constructed from heavy-duty 1.250” diameter DOM tubing with 0.120” wall thickness
- TIG welded for superior strength and clean aesthetics
- 4130 chromoly cross shafts that are CNC-machined and zinc-plated
- Polyurethane bump stops included; compatible with travel-limiting bolts
- Direct bolt-in installation compatible with factory or UMI lower a-arms
- Includes recommended alignment specs and installation instructions
- Durable red powder-coated finish
- Designed, tested, manufactured, and raced in Philipsburg, PA, USA
Specifications
- SKU / Part Number: 3056-2-R
- Manufacturer: UMI Performance
- Vehicle Fitment: 1978-1988 GM G-Body / 1982"2003 S10 & S15 (2WD)
- Ball Joint Height: 1/2" Taller
- Control Arm Style: Tubular (Adjustable)
- Material: Mild Steel Tubing / Chromoly Cross Shafts
- Finish: Red Powder Coat
- Direct Bolt-On: Yes (No modifications required)
- UOM: Pair
- Hardware: Not Included
What's in the Box
- 1 x Pair of Tubular Front Upper A-Arms (Red)
- Pre-Installed 1/2" Taller Ball Joints & Race-Quality Rod Ends
- 4130 Chromoly Cross Shafts & Polyurethane Bump Stops
- Alignment Specifications & Installation Instructions
Fitment
Buick:
- 1978 Buick Regal
- 1979 Buick Regal
- 1980 Buick Regal
- 1981 Buick Regal
- 1982 Buick Regal
- 1983 Buick Regal
- 1984 Buick Regal
- 1985 Buick Regal
- 1986 Buick Regal
- 1987 Buick Regal
Chevrolet:
- 1978 Chevrolet El Camino
- 1979 Chevrolet El Camino
- 1980 Chevrolet El Camino
- 1981 Chevrolet El Camino
- 1982 Chevrolet El Camino
- 1983 Chevrolet El Camino
- 1984 Chevrolet El Camino
- 1985 Chevrolet El Camino
- 1986 Chevrolet El Camino
- 1987 Chevrolet El Camino
- 1978 Chevrolet Malibu
- 1979 Chevrolet Malibu
- 1980 Chevrolet Malibu
- 1981 Chevrolet Malibu
- 1982 Chevrolet Malibu
- 1983 Chevrolet Malibu
- 1978 Chevrolet Monte Carlo
- 1979 Chevrolet Monte Carlo
- 1980 Chevrolet Monte Carlo
- 1981 Chevrolet Monte Carlo
- 1982 Chevrolet Monte Carlo
- 1983 Chevrolet Monte Carlo
- 1984 Chevrolet Monte Carlo
- 1985 Chevrolet Monte Carlo
- 1986 Chevrolet Monte Carlo
- 1987 Chevrolet Monte Carlo
- 1988 Chevrolet Monte Carlo
- 1982 Chevrolet S-10 2WD
- 1983 Chevrolet S-10 2WD
- 1984 Chevrolet S-10 2WD
- 1985 Chevrolet S-10 2WD
- 1986 Chevrolet S-10 2WD
- 1987 Chevrolet S-10 2WD
- 1988 Chevrolet S-10 2WD
- 1989 Chevrolet S-10 2WD
- 1990 Chevrolet S-10 2WD
- 1991 Chevrolet S-10 2WD
- 1992 Chevrolet S-10 2WD
- 1993 Chevrolet S-10 2WD
- 1994 Chevrolet S-10 2WD
- 1995 Chevrolet S-10 2WD
- 1996 Chevrolet S-10 2WD
- 1997 Chevrolet S-10 2WD
- 1998 Chevrolet S-10 2WD
- 1999 Chevrolet S-10 2WD
- 2000 Chevrolet S-10 2WD
- 2001 Chevrolet S-10 2WD
- 2002 Chevrolet S-10 2WD
- 2003 Chevrolet S-10 2WD
- 1983 Chevrolet S10 Blazer 2WD
- 1984 Chevrolet S10 Blazer 2WD
- 1985 Chevrolet S10 Blazer 2WD
- 1986 Chevrolet S10 Blazer 2WD
- 1987 Chevrolet S10 Blazer 2WD
- 1988 Chevrolet S10 Blazer 2WD
- 1989 Chevrolet S10 Blazer 2WD
- 1990 Chevrolet S10 Blazer 2WD
- 1991 Chevrolet S10 Blazer 2WD
- 1992 Chevrolet S10 Blazer 2WD
- 1993 Chevrolet S10 Blazer 2WD
- 1994 Chevrolet S10 Blazer 2WD
GMC:
- 1978 GMC Caballero
- 1979 GMC Caballero
- 1980 GMC Caballero
- 1981 GMC Caballero
- 1982 GMC Caballero
- 1983 GMC Caballero
- 1984 GMC Caballero
- 1985 GMC Caballero
- 1986 GMC Caballero
- 1987 GMC Caballero
- 1982 GMC S15 2WD
- 1983 GMC S15 2WD
- 1984 GMC S15 2WD
- 1985 GMC S15 2WD
- 1986 GMC S15 2WD
- 1987 GMC S15 2WD
- 1988 GMC S15 2WD
- 1989 GMC S15 2WD
- 1990 GMC S15 2WD
- 1991 GMC Sonoma 2WD
- 1992 GMC Sonoma 2WD
- 1993 GMC Sonoma 2WD
- 1994 GMC Sonoma 2WD
- 1995 GMC Sonoma 2WD
- 1996 GMC Sonoma 2WD
- 1997 GMC Sonoma 2WD
- 1998 GMC Sonoma 2WD
- 1999 GMC Sonoma 2WD
- 2000 GMC Sonoma 2WD
- 2001 GMC Sonoma 2WD
- 2002 GMC Sonoma 2WD
- 2003 GMC Sonoma 2WD
- 1983 GMC S15 Jimmy 2WD
- 1984 GMC S15 Jimmy 2WD
- 1985 GMC S15 Jimmy 2WD
- 1986 GMC S15 Jimmy 2WD
- 1987 GMC S15 Jimmy 2WD
- 1988 GMC S15 Jimmy 2WD
- 1989 GMC S15 Jimmy 2WD
- 1990 GMC S15 Jimmy 2WD
- 1991 GMC S15 Jimmy 2WD
Oldsmobile:
- 1978 Oldsmobile Cutlass
- 1979 Oldsmobile Cutlass
- 1980 Oldsmobile Cutlass
- 1981 Oldsmobile Cutlass
- 1982 Oldsmobile Cutlass
- 1983 Oldsmobile Cutlass
- 1984 Oldsmobile Cutlass
- 1985 Oldsmobile Cutlass
- 1986 Oldsmobile Cutlass
- 1987 Oldsmobile Cutlass
- 1988 Oldsmobile Cutlass
Pontiac:
- 1982 Pontiac Bonneville
- 1983 Pontiac Bonneville
- 1984 Pontiac Bonneville
- 1985 Pontiac Bonneville
- 1986 Pontiac Bonneville
- 1978 Pontiac Grand Prix
- 1979 Pontiac Grand Prix
- 1980 Pontiac Grand Prix
- 1981 Pontiac Grand Prix
- 1982 Pontiac Grand Prix
- 1983 Pontiac Grand Prix
- 1984 Pontiac Grand Prix
- 1985 Pontiac Grand Prix
- 1986 Pontiac Grand Prix
- 1987 Pontiac Grand Prix
