ProCharger Air-to-Air Intercooler - Opposite Side Inlet/Outlet - 3.5 Inch - 1300 HP - AI045A-001
Maximum Airflow Air-to-Air Intercooler for 1,300 HP Forced Induction Builds
The ProCharger AI045A-001 Air-to-Air Intercooler is engineered for extreme custom supercharger and turbocharger applications where maximum airflow and charge-air cooling are essential. Featuring opposite-side 3.5-inch inlet and outlet connections, this intercooler is capable of supporting applications producing up to 1,300 horsepower, making it an outstanding choice for serious street, drag racing, and competition vehicles.
Constructed with a rugged bar-and-plate core and heavy-duty sheet metal end tanks, the AI045A-001 efficiently removes heat from compressed intake air before it enters the engine. Cooler, denser intake air helps deliver more consistent horsepower, minimizes heat soak, and improves engine reliability under sustained high-boost operation.
Built for Extreme Horsepower Applications
The combination of a 27-inch wide core, a substantial 4.5-inch core thickness, and oversized 3.5-inch inlet and outlet connections provides outstanding airflow and cooling capacity for four-digit horsepower combinations. The opposite-side inlet and outlet configuration also simplifies charge pipe routing for many custom front-mounted intercooler installations.
Whether you're fabricating a ProCharger-powered race car or assembling a high-output turbocharged build, the AI045A-001 delivers the cooling performance needed to support serious horsepower levels.
Features
- Designed for custom supercharger and turbocharger applications
- Supports up to approximately 1,300 horsepower
- Heavy-duty bar-and-plate intercooler core
- Durable sheet metal end tanks
- Opposite-side inlet and outlet configuration
- Large 3.5-inch inlet and outlet connections for maximum airflow
- Extra-thick 4.5-inch core for exceptional cooling capacity
- Helps reduce intake air temperatures for improved horsepower consistency and engine reliability

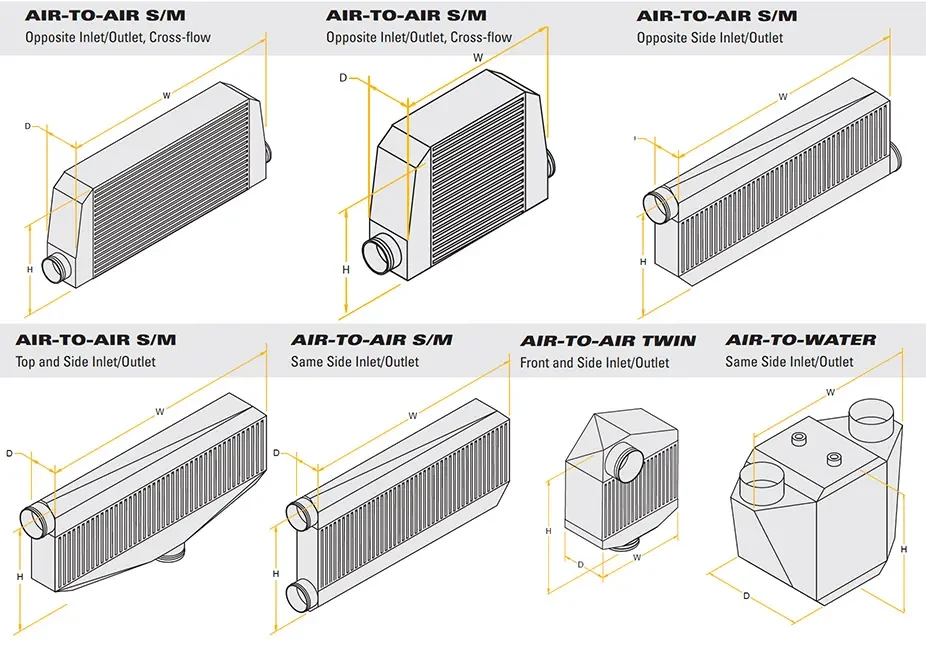

Quick Specs
- Part Number: AI045A-001
- Manufacturer: ProCharger
- Product Type: Air-to-Air Intercooler
- Core Construction: Bar-and-Plate
- End Tank Construction: Sheet Metal
- Inlet/Outlet Location: Opposite Sides
- Inlet/Outlet Diameter: 3.5 inches
- Maximum Horsepower: 1,300 HP
- Core Width: 27 inches
- Core Height: 12 inches
- Core Depth: 4.5 inches
- Application: Universal custom forced induction applications
Why Choose the AI045A-001?
When your combination pushes well beyond 1,000 horsepower, intercooler efficiency becomes critical. The AI045A-001 combines a massive bar-and-plate core with oversized 3.5-inch inlet and outlet connections to maximize airflow while delivering outstanding heat rejection. The result is cooler intake temperatures, improved power consistency, and dependable performance under the most demanding boost conditions.
FAQs
Is this intercooler vehicle specific?
No. The AI045A-001 is a universal air-to-air intercooler intended for custom fabrication and forced induction applications.
What advantage does the 4.5-inch thick core provide?
The thicker core provides increased cooling surface area and greater heat rejection capacity, making it well suited for high-boost, high-horsepower combinations that require maximum intercooling performance.
Why Buy from Beefcake Racing?
At Beefcake Racing, we specialize in ProCharger systems, custom forced induction builds, and high-performance components. Whether you're fabricating a one-off project or building a serious race combination, our experienced team can help you select the right intercooler and supporting hardware to maximize your performance goals.
