ProCharger Air-to-Air Intercooler - Opposite Side Inlet/Outlet - 3.5 Inch - 1050 HP - AI003A-005
Large Capacity Air-to-Air Intercooler for 1,050 HP Forced Induction Builds
The ProCharger AI003A-005 Air-to-Air Intercooler is built for custom supercharger and turbocharger applications that demand exceptional cooling performance and increased airflow capacity. Featuring opposite-side 3.5-inch inlet and outlet connections, this intercooler is engineered to support applications producing up to 1,050 horsepower, making it an excellent choice for high-output street, drag racing, and custom competition builds.
Constructed with a heavy-duty bar-and-plate core and durable sheet metal end tanks, the AI003A-005 efficiently removes heat from compressed intake air before it reaches the engine. Lower intake temperatures help produce denser air, resulting in more consistent horsepower, reduced heat soak, and improved reliability during extended high-boost operation.
Designed for High-Airflow Performance
The larger 3.5-inch inlet and outlet connections provide increased airflow capability for combinations that demand more volume than traditional 3-inch intercoolers. Combined with its generous 27-inch wide by 15-inch tall core, this intercooler delivers outstanding cooling efficiency while simplifying charge pipe routing with its opposite-side inlet and outlet configuration.
Whether you're fabricating a custom ProCharger installation or assembling a serious turbocharged race vehicle, the AI003A-005 provides the cooling capacity needed to support four-digit horsepower goals.
Features
- Designed for custom supercharger and turbocharger applications
- Supports up to approximately 1,050 horsepower
- Heavy-duty bar-and-plate intercooler core
- Durable sheet metal end tanks
- Opposite-side inlet and outlet configuration
- Large 3.5-inch inlet and outlet connections for increased airflow
- Large core provides exceptional cooling efficiency
- Helps reduce intake air temperatures for improved horsepower consistency and engine reliability
Quick Specs
- Part Number: AI003A-005
- Manufacturer: ProCharger
- Product Type: Air-to-Air Intercooler
- Core Construction: Bar-and-Plate
- End Tank Construction: Sheet Metal
- Inlet/Outlet Location: Opposite Sides
- Inlet/Outlet Diameter: 3.5 inches
- Maximum Horsepower: 1,050 HP

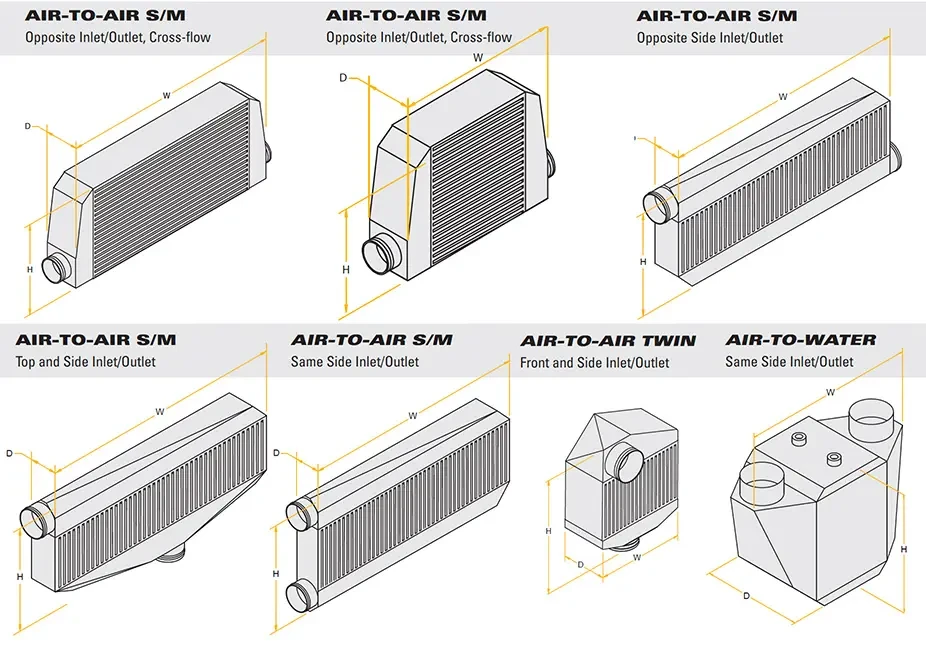

- Core Width: 27 inches
- Core Height: 15 inches
- Core Depth: 3 inches
- Application: Universal custom forced induction applications
Why Choose the AI003A-005?
For high-horsepower combinations exceeding 1,000 HP, airflow and cooling capacity become critical. The AI003A-005 combines a large bar-and-plate core with oversized 3.5-inch inlet and outlet connections to help maximize airflow while keeping intake temperatures under control. The result is more consistent power, greater resistance to heat soak, and dependable performance under demanding boost conditions.
FAQs
Is this intercooler vehicle specific?
No. The AI003A-005 is a universal air-to-air intercooler intended for custom fabrication and forced induction applications.
Why does this intercooler use 3.5-inch inlet and outlet connections?
The larger 3.5-inch connections provide increased airflow capacity for higher-horsepower applications where larger charge piping helps support maximum performance and reduced restriction.
