PPE Valve and Conical Spring Kit (2001-2016 GM 6.6L Duramax) - (110090080
Overview
PPE's Valve and Conical Spring Kit is engineered to upgrade the valve train on 2001-2016 GM 6.6L Duramax engines. Designed to handle higher RPM and elevated boost levels, this kit improves valve control, responsiveness, and long-term durability - making it a strong choice for performance builds or heavy-use applications.
Improved Valve Train Stability
The conical springs feature a higher spring rate and reduced mass, helping eliminate valve float under high engine speeds. With an installed pressure of 125 pounds and the ability to manage 60+ psi of boost, these springs deliver reliable performance even in demanding setups.
Premium Valve Construction
All valves are fully nitridated and reinforced with Stellite alloy for exceptional wear resistance and strength. This ensures consistent sealing and long-term reliability, even under elevated heat and pressure.
High-Strength Components
Chromoly retainers and spring seats are built to withstand the increased spring pressure, while the FKM valve seals are designed to match the valve guides used in PPE's Cast Iron Cylinder Heads for a tight, dependable seal.

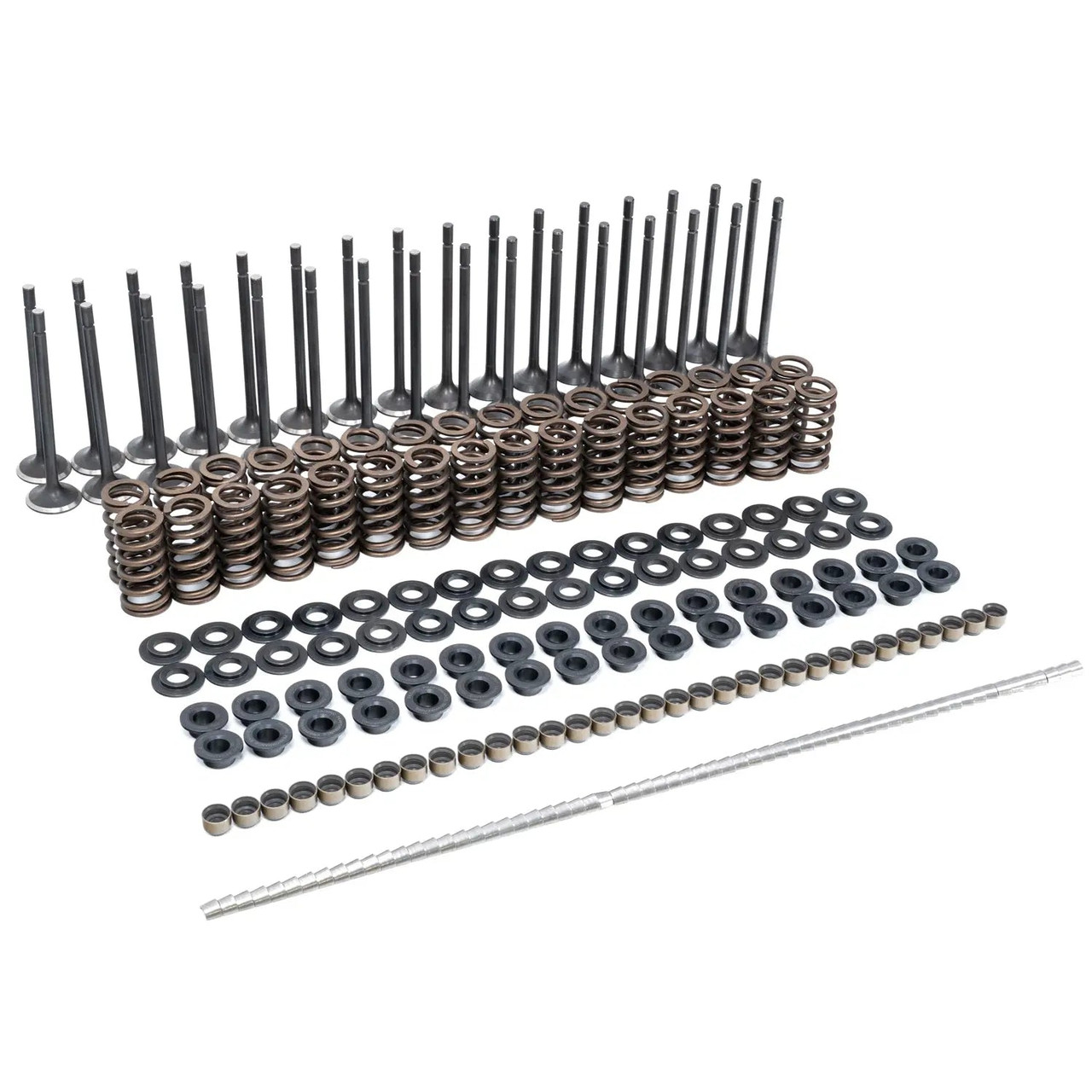

Kit Services Two Cylinder Heads
- 16 intake valves
- 16 exhaust valves
- 32 conical springs
- 32 spring retainers
- 32 spring seats
- 32 sets of keepers
- 32 valve seals
Key Details
- Upgraded conical spring and valve kit for 2001-2016 Duramax
- Higher spring rate eliminates valve float at high RPM
- Handles 60+ psi boost pressure
- Nitridated, Stellite-reinforced valves for superior durability
- Chromoly retainers and seats for added strength
- GTIN: 840171223224
Application
- 2016 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2016 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2016 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2016 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2016 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2016 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2016 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2016 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2016 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2016 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2015 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2015 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2015 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2015 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2015 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2015 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2015 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2015 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2015 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2015 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2014 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2014 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2014 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2014 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2014 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2014 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2014 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2014 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2014 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2014 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2013 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2013 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2013 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2013 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2013 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2013 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2013 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2013 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2013 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2012 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2012 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2012 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2012 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2012 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2012 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2012 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2012 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2012 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2012 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2011 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2011 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2011 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2011 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2011 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2011 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2011 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2011 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2011 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2011 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2010 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2010 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2010 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2010 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2010 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2010 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2010 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2010 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2010 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2010 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2009 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2009 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2009 GMC Savana 4500 6.6L V8 Turbo Diesel (Duramax)
- 2009 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2009 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2009 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2009 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2009 Chevrolet Express 4500 6.6L V8 Turbo Diesel (Duramax)
- 2009 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2009 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2008 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2008 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2008 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2008 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2008 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2008 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2008 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2008 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Sierra 3500HD Classic 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Sierra 2500HD Classic 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2007 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Silverado 3500HD Classic 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Silverado 2500HD Classic 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2007 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2006 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2006 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2006 GMC Savana 3500 6.6L V8 Turbo Diesel (Duramax)
- 2006 GMC Savana 2500 6.6L V8 Turbo Diesel (Duramax)
- 2006 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2006 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2006 Chevrolet Express 3500 6.6L V8 Turbo Diesel (Duramax)
- 2006 Chevrolet Express 2500 6.6L V8 Turbo Diesel (Duramax)
- 2005 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2005 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2005 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2005 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2004 GMC Sierra 3500HD LLY 6.6L V8 Turbo Diesel (Duramax)
- 2004 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2004 GMC Sierra 2500HD LLY 6.6L V8 Turbo Diesel (Duramax)
- 2004 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2004 Chevrolet Silverado 3500HD LLY 6.6L V8 Turbo Diesel (Duramax)
- 2004 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2004 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2003 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2003 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2003 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2003 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2002 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2002 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2002 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2002 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2001 GMC Sierra 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2001 GMC Sierra 2500HD 6.6L V8 Turbo Diesel (Duramax)
- 2001 Chevrolet Silverado 3500HD 6.6L V8 Turbo Diesel (Duramax)
- 2001 Chevrolet Silverado 2500HD 6.6L V8 Turbo Diesel (Duramax)
