McLeod RST HD Twin Disc Clutch Kit with Aluminum Flywheel (6333825MD) - 2018-2023 Ford Mustang GT 5.0L
Upgrade your 2018-2023 Mustang GT with the McLeod RST HD Twin Disc Clutch Kit, engineered for enthusiasts who demand outstanding street manners with the strength to handle serious horsepower. Rated for up to 950 horsepower, the RST HD fills the gap between McLeod's renowned RST and RXT clutch systems, delivering exceptional torque capacity while maintaining smooth engagement and excellent drivability for both street and track applications.

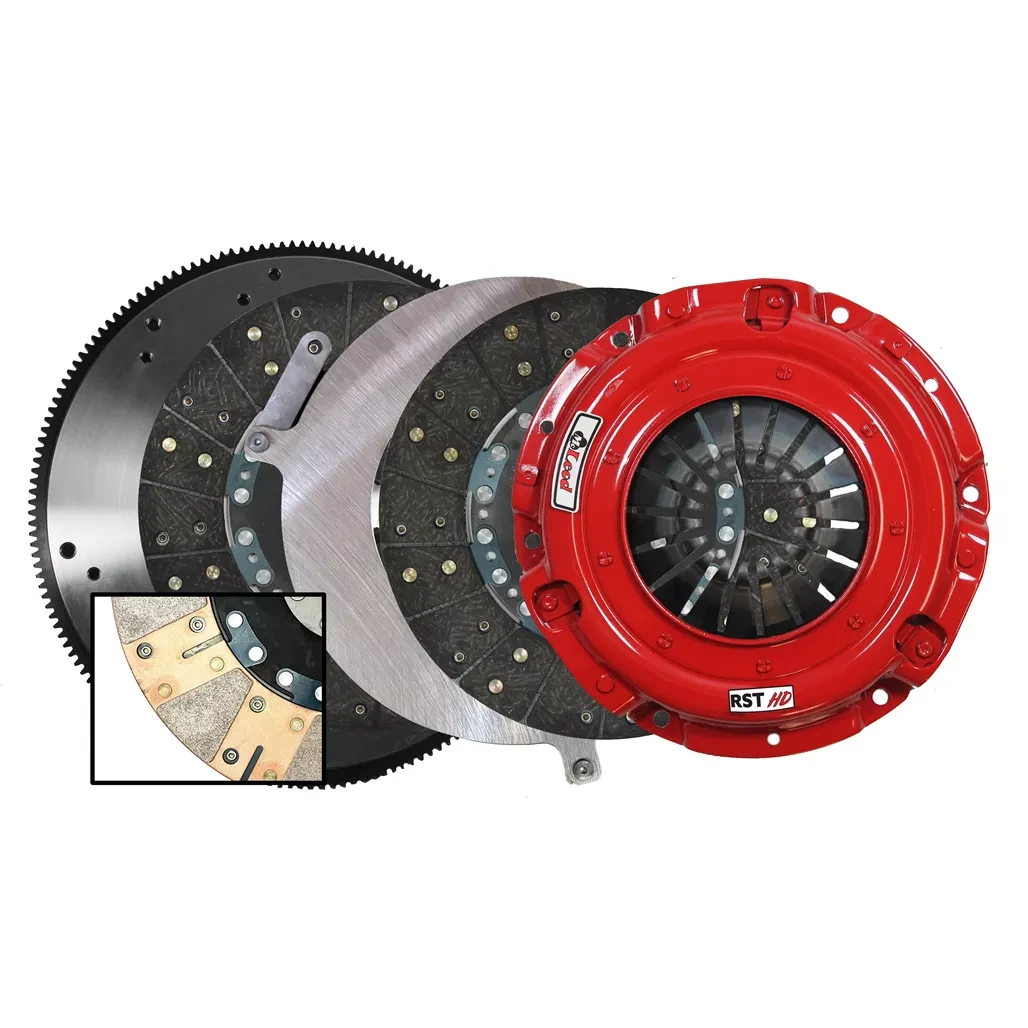

The RST HD features an innovative hybrid twin-disc design with organic friction material on one side of each disc for smooth engagement and segmented ceramic material on the other for increased holding power under aggressive driving. Combined with a lightweight billet aluminum flywheel, this system offers quick throttle response, reduced rotational mass, and consistent clutch performance without the harsh engagement often associated with high-performance clutches. Complete with installation hardware, pilot bushing, and alignment tool, this kit is ready to support demanding performance builds.
Features
- Fits 2018-2023 Ford Mustang GT 5.0L with 8-bolt crankshaft
- Rated to support up to 950 horsepower
- Twin-disc clutch design for increased torque capacity and heat management
- Hybrid organic and segmented ceramic friction discs
- Smooth engagement with outstanding street drivability
- Designed for high-performance street and track use
- Diaphragm-style pressure plate provides light pedal effort
- Includes lightweight billet aluminum flywheel
- 164-tooth flywheel with internal engine balance
- Fits 1-inch, 23-spline transmission input shafts
- Includes installation hardware, pilot bushing, and alignment tool
Specifications
- Part Number: 6333825MD
- Horsepower Rating: 950 HP
- Clutch Disc Quantity: 2
- Disc Diameter: 9.688 inches
- Input Shaft Diameter: 1 inch
- Input Spline: 23M
- Disc Material: Organic / Ceramic
- Disc Style: Full Face / Segmented
- Hub Style: Solid
- Pressure Plate Style: Diaphragm
- Flywheel Material: Billet Aluminum
- Ring Gear: 164 Tooth
- Crankshaft Bolt Pattern: 8-Bolt
- Throwout Bearing: Not Included
Fitment
- 2018 Ford Mustang GT 5.0L (8-Bolt Crank)
- 2019 Ford Mustang GT 5.0L (8-Bolt Crank)
- 2020 Ford Mustang GT 5.0L (8-Bolt Crank)
- 2021 Ford Mustang GT 5.0L (8-Bolt Crank)
- 2022 Ford Mustang GT 5.0L (8-Bolt Crank)
- 2023 Ford Mustang GT 5.0L (8-Bolt Crank)
Additional Notes
- Designed for vehicles equipped with an 8-bolt crankshaft and 1-inch, 23-spline transmission input shaft.
- Includes billet aluminum flywheel, installation hardware, pilot bushing, and alignment tool.
- Throwout bearing is not included and must be purchased separately if needed.
- Ideal for high-horsepower street cars and track-focused builds requiring excellent drivability and increased torque capacity.
