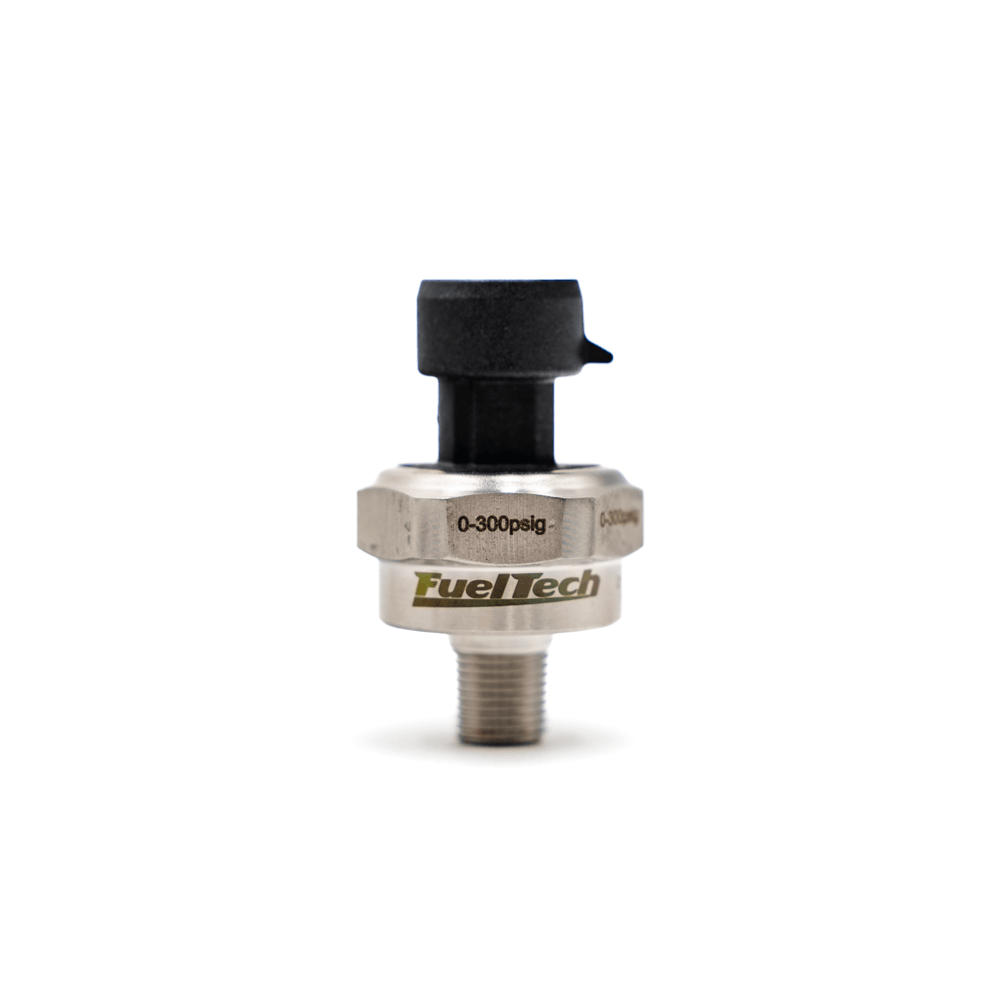

FuelTech 0-300 PSI Pressure Sensor Short Body - 5005100586
High-Precision Pressure Monitoring for Demanding Applications
The FuelTech 0-300 PSI Pressure Sensor Short Body is engineered to deliver accurate and reliable pressure readings in high-performance and motorsports environments. With its compact design and robust construction, this sensor is ideal for monitoring fuel, oil, boost, and other critical systems where precision is essential.
Featuring a 0.5-4.5V output and 5V supply, this sensor integrates seamlessly with FuelTech ECUs and other compatible engine management systems for accurate data logging and tuning.
Compact Short Body Design for Tight Installations
Designed for installations where space is limited, this short body sensor provides excellent fitment without compromising performance.
- Short body design for compact engine bays
- Ideal for tight and custom installations
- Maintains accuracy in limited space applications
- Built for performance environments
Fast Response and Accurate Output
Reliable pressure data is critical for tuning and engine protection. This sensor delivers fast response times and stable output.
- 0.5-4.5V analog output for ECU integration
- Response time less than 5ms
- Warm-up time less than 20ms
- Accuracy of ±1.0% span
- Consistent signal for precise data logging
Durable Stainless Steel Construction
Built to withstand extreme conditions, this sensor features rugged materials designed for long-term durability.
- 17-4 PH stainless steel wetted parts
- Corrosion-resistant construction
- IP67 rated enclosure for environmental protection
- Designed for harsh motorsports conditions
Advanced Performance Specifications
This sensor is engineered with high-end specifications to ensure long-term reliability and performance.
- Stability: ?±0.25% of span per year
- Zero tolerance: 0.5% of span
- Span tolerance: 0.5% of span
- Fatigue life: 50 million cycles
- Vibration rating: 20 g RMS from 20 to 2000 Hz
- Shock resistance: 100 g, 6 ms
Wide Operating Temperature Range
Designed to perform in extreme environments, this sensor maintains accuracy across a broad temperature range.
- Compensated temperature range: -58°F to +257°F
- Operating temperature range: -40°F to +257°F
- Reliable performance in harsh conditions
- Ideal for race and high-performance applications
Connector Pinout
- A - Ground
- B - 5V
- C - Signal
Features
- 0-300 PSI pressure sensor with compact short body design
- 0.5-4.5V output signal for ECU integration
- 5V supply requirement
- 1/8 inch NPT thread for easy installation
- High accuracy and fast response time
- Stainless steel construction for durability
- IP67 rated for environmental protection
- Designed for motorsports and performance applications
Quick Specs
- Brand: FuelTech
- Pressure Range: 0-300 PSI
- Output: 0.5-4.5V
- Supply Voltage: 5V
- Thread Size: 1/8 inch NPT
- Height: 45.5 mm
- Hex Diameter: 27 mm
- Material: Stainless steel
- Accuracy: ±1.0% span
- Response Time: less than 5ms
- Operating Temperature: -40°F to +257°F
- Protection Rating: IP67
- Approvals: CE, RoHS compliant, UL recognized
- Part Number: 5005100586
FAQs
What applications is this pressure sensor used for?
This sensor is ideal for monitoring fuel pressure, oil pressure, boost, and other high-performance systems up to 300 PSI.
Is this sensor compatible with FuelTech ECUs?
Yes. The 0.5-4.5V output allows direct integration with FuelTech ECUs and other compatible engine management systems.
