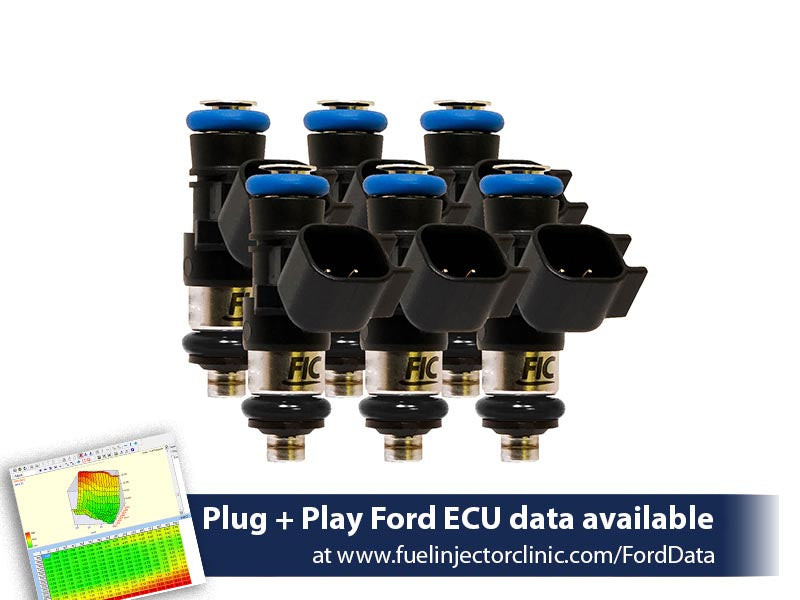

Fuel Injector Clinic 1650cc Injector Set (is461-1650h) - 2011-2017 Ford Mustang V6
Feed your high-horsepower 2011-2017 Ford Mustang V6 with the Fuel Injector Clinic 1650cc high-impedance injector set. This matched set of six injectors flows 1650cc/min, or 160 lbs/hr, at 43.5 PSI fuel pressure, delivering serious fuel capacity while retaining the precise control needed for a well-mannered street car. Excellent linearity and short pulse width repeatability help maintain responsive idle and part-throttle operation, while the factory-style electrical connector makes the is461-1650h a true drop-in upgrade with no injector plug conversion required.
Fuel Injector Clinic's 1650cc injector combines high flow capacity with stainless alloy valve construction for extensive fuel compatibility. It can be used with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. Each set is precisely matched using FIC's proprietary Data Match Technology, with every injector individually serial numbered and documented on the supplied Data Match Sheet. FIC also provides plug-and-play Ford ECU data to give tuners the accurate injector information needed for calibration.
Specifications
- Part Number: is461-1650h
- Application: 2011-2017 Ford Mustang V6
- Injector Quantity: 6
- Flow Rate: 1650cc/min
- Flow Rate at 43.5 PSI: 160 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Valve Construction: Stainless alloy
- Connector: Factory-style electrical connector
- Installation: Drop-in for the listed factory application with no injector plug conversion required
- Fuel Compatibility: Pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1650cc/min high-impedance performance fuel injectors
- 160 lbs/hr flow rating at 43.5 PSI fuel pressure
- Designed for 2011-2017 Ford Mustang V6 applications
- Factory-style electrical connector for straightforward installation
- Drop-in fitment with no injector plug conversion required
- Excellent idle performance for a large high-flow injector
- Excellent linearity across the injector operating range
- Superior short pulse width control and repeatability
- Stainless alloy valve construction for extensive fuel compatibility
- Compatible with pump gasoline and E85
- Compatible with Q16, VP Import, FTW, and other MTBE oxygenated race fuels
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes the O-rings required for the listed factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Serious Fuel Capacity with Street-Friendly Control
Big injectors are only useful when the ECU can control them accurately. The FIC 1650cc high-impedance injector is designed to provide the substantial fuel volume demanded by high-output combinations while maintaining excellent idle performance in street-driven vehicles. Superior short pulse width control and linearity help tuners accurately manage fueling during idle and part-throttle operation while providing the additional capacity needed as engine load, boost, and horsepower increase.
Data Match Technology for Precise Tuning
Fuel Injector Clinic precisely matches each is461-1650h set using its proprietary Data Match Technology. Every injector is individually serial numbered, and its results are documented on the supplied Data Match Sheet. Detailed flow matching and latency information gives your tuner accurate injector data for consistent fuel delivery across all six cylinders and helps take the guesswork out of calibrating a high-flow injector setup.
Broad Fuel Compatibility
Stainless alloy valve construction gives the FIC 1650cc injector the flexibility required for a wide range of performance combinations. These injectors are compatible with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels. That broad compatibility makes the is461-1650h a versatile option for Mustang V6 builds that may run different fuels as performance goals evolve.
True Drop-In Mustang V6 Installation
The is461-1650h is configured specifically for the listed 2011-2017 Ford Mustang V6 application and uses the factory-style electrical connector, so no injector plug conversion is required. Fuel Injector Clinic also supplies the O-rings needed for the factory application, helping make installation straightforward for vehicles retaining a compatible factory-style fuel-system configuration.
Fitment
- 2011 Ford Mustang V6
- 2012 Ford Mustang V6
- 2013 Ford Mustang V6
- 2014 Ford Mustang V6
- 2015 Ford Mustang V6
- 2016 Ford Mustang V6
- 2017 Ford Mustang V6
Fitment Note: Fuel Injector Clinic supplies these injectors with the O-rings required for the listed factory application. If your Mustang uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm proper fitment.
FAQs
Are Fuel Injector Clinic is461-1650h injectors a drop-in fit for the 2011-2017 Mustang V6?
Yes. Fuel Injector Clinic specifies the is461-1650h with a factory-style connector and drop-in fitment for the listed Mustang V6 application, so an injector plug conversion is not required.
What fuels can the FIC is461-1650h 1650cc injectors use?
The stainless alloy valve construction provides broad fuel compatibility. Fuel Injector Clinic specifies these injectors for use with pump gasoline, E85, Q16, VP Import, FTW, and other MTBE oxygenated race fuels.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and high-horsepower fuel-system combinations. Whether you are upgrading a forced-induction Mustang V6 or putting together a complete fuel-system build, our experienced team can help you select injectors and supporting components that match your setup and performance goals.
Questions about Fuel Injector Clinic part number is461-1650h or your Mustang V6 fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
