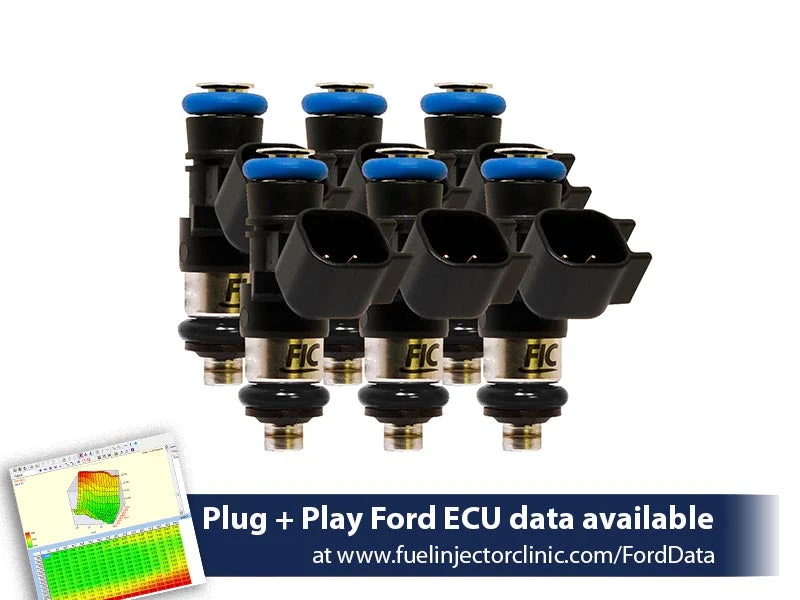

Fuel Injector Clinic 1000cc Injector Set (is461-1000h) - 2011-2017 Ford Mustang V6
Upgrade the fuel system in your 2011-2017 Ford Mustang V6 with the Fuel Injector Clinic 1000cc high-impedance injector set. This matched set of six injectors flows 1000cc/min, or 85 lbs/hr, at 43.5 PSI fuel pressure, providing substantially increased fueling capability for modified and higher-horsepower Mustang builds. Designed as a drop-in solution for both physical size and electrical connection, these injectors deliver the linearity, short pulse width repeatability, and precise fuel control needed for strong performance without sacrificing everyday drivability.
Every is461-1000h set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered, with detailed matching results supplied on the Data Match Sheet to provide tuners with accurate flow and latency information. FIC flow tests and rates its injectors at 43.5 PSI / 3 Bar and 90 degrees F fuel temperature using CF-16B calibration fluid. Plug-and-play Ford ECU data is also available from Fuel Injector Clinic to help simplify calibration.
Specifications
- Part Number: is461-1000h
- Application: 2011-2017 Ford Mustang V6
- Injector Quantity: 6
- Flow Rate: 1000cc/min
- Flow Rate at 43.5 PSI: 85 lbs/hr
- Fuel Pressure Rating: 43.5 PSI / 3 Bar
- Impedance: High impedance / saturated
- Injector Design: Ball and seat
- Fitment: Drop-in for injector size and electrical connector
- Injector Matching: Fuel Injector Clinic Data Match Technology
- Calibration Fluid: CF-16B
- Test Fuel Temperature: 90 degrees F
- ECU Data: Plug-and-play Ford ECU data available from Fuel Injector Clinic
- O-Rings: Includes O-rings required for the listed factory application
- Warranty: Lifetime warranty against failure caused by defects in original manufacture
Features
- Six 1000cc/min high-impedance fuel injectors
- 85 lbs/hr flow rating at 43.5 PSI fuel pressure
- Engineered for 2011-2017 Ford Mustang V6 applications
- Drop-in physical fitment for straightforward installation
- Drop-in electrical connection with no plug conversion required
- Excellent linearity across the injector operating range
- Superior short pulse width control and repeatability
- Precisely matched using Fuel Injector Clinic Data Match Technology
- Each injector is individually serial numbered
- Detailed Data Match Sheet provides flow matching and latency information
- Flow tested and rated at 43.5 PSI / 3 Bar
- Tested at 90 degrees F fuel temperature using CF-16B calibration fluid
- Plug-and-play Ford ECU calibration data available from Fuel Injector Clinic
- Includes the O-rings required for the listed factory application
- Backed by Fuel Injector Clinic's lifetime warranty against manufacturing defects
Data Match Technology for Precise Fuel Control
Injector flow capacity is only part of the equation when building a properly tuned performance fuel system. Fuel Injector Clinic uses proprietary Data Match Technology to precisely match the injectors within each is461-1000h set. Every injector is individually serial numbered, and the supplied Data Match Sheet provides detailed flow matching and latency information. This gives your tuner the accurate injector data needed to maintain consistent fuel delivery across all six cylinders.
High-Flow Performance with Street-Friendly Control
The FIC 1000cc injector provides the additional fuel capacity required by modified Mustang V6 combinations while retaining the control needed for smooth operation at lower engine speeds. Excellent linearity and short pulse width repeatability help make these injectors easier to calibrate at idle and part throttle while delivering the increased fuel volume demanded as engine load, boost, and horsepower rise.
True Drop-In Mustang V6 Fitment
The is461-1000h set is designed as a drop-in solution for the listed 2011-2017 Ford Mustang V6 application. Both the injector size and electrical connection are configured for the factory application, eliminating the need for an injector plug conversion. Fuel Injector Clinic also supplies the O-rings required for factory fitment. If your Mustang uses an aftermarket fuel rail or another non-standard fuel-system configuration, contact Beefcake Racing before ordering to confirm compatibility.
Fitment
- 2011 Ford Mustang V6
- 2012 Ford Mustang V6
- 2013 Ford Mustang V6
- 2014 Ford Mustang V6
- 2015 Ford Mustang V6
- 2016 Ford Mustang V6
- 2017 Ford Mustang V6
FAQs
Are Fuel Injector Clinic is461-1000h injectors a drop-in fit for the 2011-2017 Mustang V6?
Yes. Fuel Injector Clinic specifies the is461-1000h set as drop-in for both injector size and electrical connection on the listed Mustang V6 application, so an injector plug conversion is not required.
What tuning information is available for the FIC is461-1000h injector set?
Each injector is individually serial numbered, and detailed flow matching and latency information is supplied on the Data Match Sheet. Fuel Injector Clinic also provides plug-and-play Ford ECU data to help tuners accurately calibrate the injectors.
Why Buy from Beefcake Racing?
Beefcake Racing specializes in Ford performance and has the experience to help you build a fuel system that matches your Mustang's power goals. Whether you are upgrading injectors as part of a naturally aspirated build, forced-induction combination, or complete fuel-system upgrade, our team can help you select the right components for your setup.
Questions about Fuel Injector Clinic part number is461-1000h or your Mustang V6 fuel system? Email Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
